Audio Enhancement Optimum MS-450 IR SAFE Compatible Classroom System (Discontinued)

By Audio Enhancement

Audio Enhancement Optimum MS-450 IR SAFE Compatible Classroom System (Discontinued)

Name: Audio Enhancement Optimum MS-450 IR SAFE Compatible Classroom System (Discontinued)
Brand: Audio Enhancement
SKU: AE-IR-OPTIMUM-CLASSROOM-SYSTEM

Write a Review

Part #:

1000-1200

Model #:

IR Optimum Classroom System

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Description

The Optimum Classroom IR System is a complete networked classroom amplification solution that provides full, hands-free duplex audio, VoIP (Voice over Internet Protocol) based paging and emergency notification. Thanks to the revolutionary MS-450, paging, and intercom functionalities are built right into the system. If the power goes out, designated speakers will receive power over Ethernet so paging can still be heard throughout the school. With the included IR-Satellite, this unit can be installed as part of the SAFE (Security Alert For Education) System, allowing teachers to summon help using their teacher microphones.

These systems can be modified to accommodate your specific needs, for more information contact our talented sales engineers at 1-888-256-4112.

Features

Overall Features:

Full, duplex audio
Simple user interface software
Intercom and paging functionality built-in
During emergencies, paging can still be heard
Redundant power source during power outages
Compatible with SAFE Commander or other SIP-based bell or public announcement systems
SAFE System Compatible

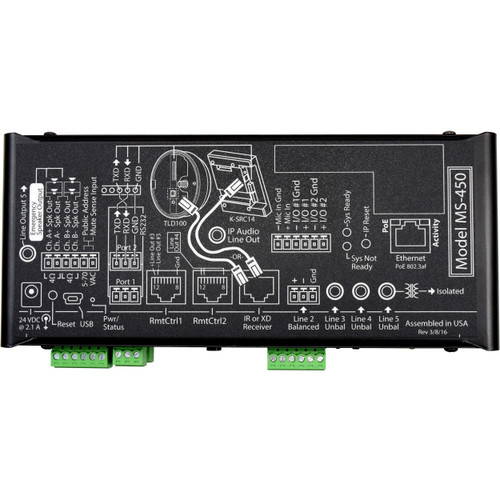

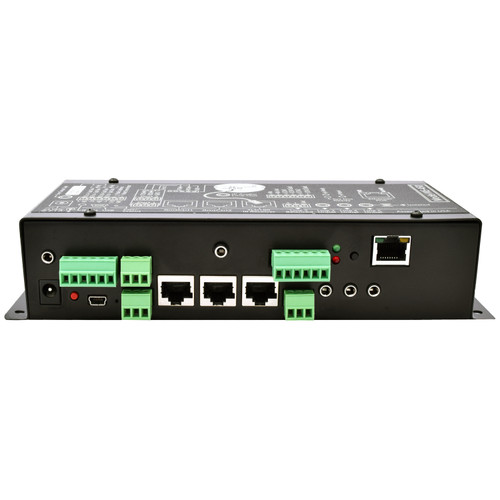

MS-450 Networked Amplifier:

Line Inputs: For PC, DVD audio, MP3, auxiliary mic, or other multimedia sources
1 Line balanced/unbalanced input (Euroblock)
3 Line unbalanced stereo inputs (3.5 mm)
1 Input connector for IR- Satellite
Internal Network Audio
Line Outputs: 2 Unbalanced Line Outputs (RJ45 Connectors)
Continuous Power @ 1% THD : 32 Watts (16 Watts (rms) per channel x 2 channels @ 4 ohms), backup amp powered by PoE
RS-232, 3-pin screw terminal block header, RJ45 remote control port
(2) RS-232 communication ports: (1) to control the MS-450, and (2) to control another classroom device such as a projector
(2) Remote Control Ports: for integration with wall plate controls
Power Input (Network): PoE 802.3at or 802.3af for IP interface

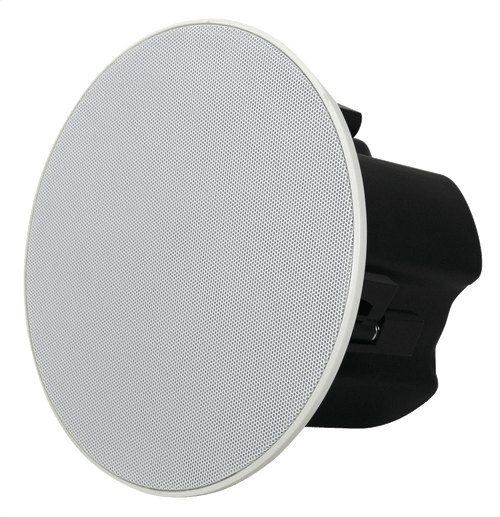

CS-12 Ceiling Speakers:

Frequency range of 70 Hz to 15 kHz (-10dB)
Tuned ported enclosure provides superior bass response
Integral C-clamp mounting

Infrared Teardrop Teacher Microphone:

M.I.C. Intelligent Charge battery management system prevents overcharging
Auxiliary line level input connector allows for playback of any device using a standard 3.5 mm jack
Can be used either with built-in clip or included lanyard
SAFE alert function available for quick notification of administrators and first responders during an emergency

IR-Satellite Sensor/Receiver:

Bi-directional remote control and status monitoring via RS-232
Remote control via teacher microphone of both microphones and auxiliary levels
Balanced, line-level outputs
3 independent outputs or one mixed output
Feedback blocker on both microphone channels
SAFE System compatible, LED light indicators

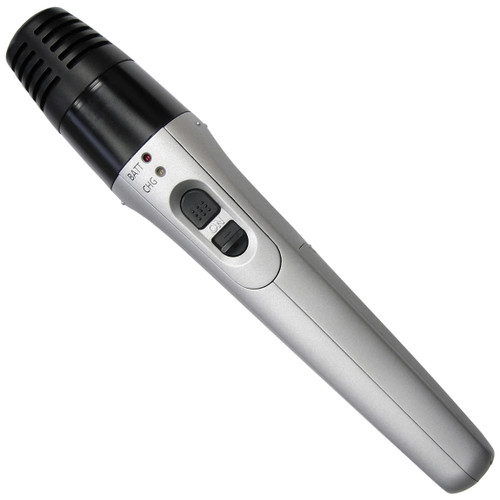

Infrared Student Handheld Microphone:

Uni-Directional electret capsule increases microphone sensitivity
Auxiliary line level input connector allows for playback of any device using a 3.5 mm jack
Push-to-Talk function allows momentary microphone activation

DOCUMENTS

System Includes

(4) CS-12 Plenum Rated Ceiling Speakers with Back Cans
(4) Tile Bridges
(1) MS-450BB Amplifier
(1) STD14 AE XD Teardrop Microphone
(1) SRC14 Sensor/XD Receiver with AE Logo
(1) Power Supply, 24V, 2.5A
(1) Charger, Dual USB Wall Mount Charger Block, for XD Mics
(1) Battery Li-iON Battery Pack, 3.7V 700 mAh 2.6 Wh for XD Mics
(1) Wall Plate, Ambient Mic, WPA-01, w/Decora Plate, LV1 & Wire
(1) Cable, 3', Cat6, w/Molded Boot, Non-Plenum, Black
(1) Cable, 75', Speaker Wire, Plenum Rated
(1) Cable, 50', Speaker Wire, Plenum Rated
(30) WPW 25291B 22/2 Stranded Bare Copper Conductors, Shielded with An Overall Flex Plenum Jacket
(1) Cable, 35', 3.5 to 3.5 M/M Low Profile, 40517, Plenum Rated, Shielded
(1) Cable, 6', USB 2.0 A Male to Micro-USB B Male, for XD Mics
