The Optimum Classroom System is a complete networked classroom amplification solution that provides full, hands-free duplex audio and VoIP (Voice over Internet Protocol) based paging. Thanks to the revolutionary MS-450, paging, and intercom functionalities are built right into the system. If the power goes out, designated speakers will receive power over Ethernet so paging can still be heard throughout the school.

These systems can be modified to accommodate your specific needs, for more information contact our talented sales engineers at 1-888-256-4112.

Overall Features:

• Full, duplex audio
• Simple user interface software
• Intercom and paging functionality built-in
• During emergencies, paging can still be heard
• Redundant power source during power outages
• Compatible with SAFE Commander or other SIP-based bell or public announcement systems

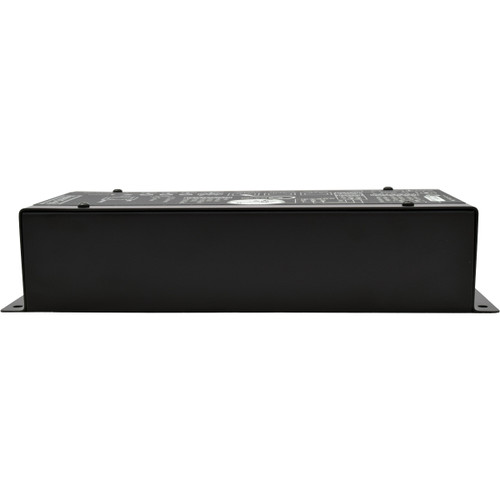

MS-450 Networked Amplifier:

• Line Inputs: For PC, DVD audio, MP3, auxiliary mic, or other multimedia sources
• 1 Line balanced/unbalanced input (Euroblock)
• 3 Line unbalanced stereo inputs (3.5 mm)
• 1 Input connector for IR- Satellite
• Internal Network Audio
• Line Outputs: 2 Unbalanced Line Outputs (RJ45 Connectors)
• Continuous Power @ 1% THD : 32 Watts (16 Watts (rms) per channel x 2 channels @ 4 ohms), backup amp powered by PoE
• RS-232, 3-pin screw terminal block header, RJ45 remote control port
• (2) RS-232 communication ports: (1) to control the MS-450, and (2) to control another classroom device such as a projector
• (2) Remote Control Ports: for integration with wall plate controls
• Power Input (Network): PoE 802.3at or 802.3af for IP interface



CS-12 Ceiling Speakers:

• Frequency range of 70 Hz to 15 kHz (-10dB)
• Tuned ported enclosure provides superior bass response
• Integral C-clamp mounting

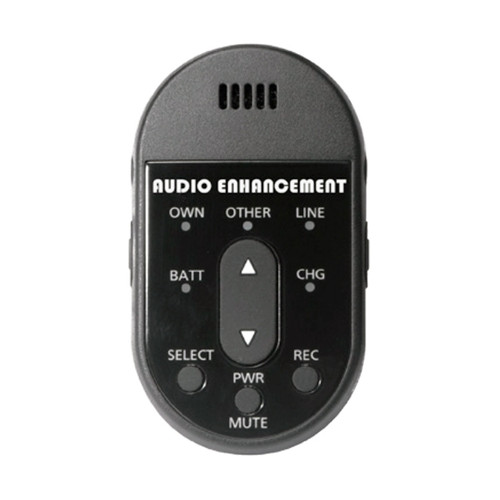

XD Teacher Microphone:

• Auxiliary line level input connector allows for playback of any device using a standard 3.5 mm jack
• Can be used either with built-in clip or included lanyard
• Rechargeable Lithium-Ion Battery

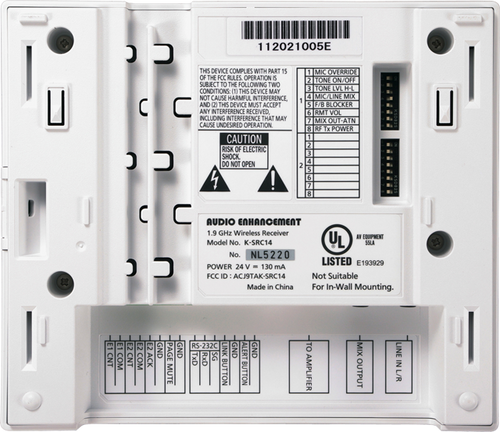

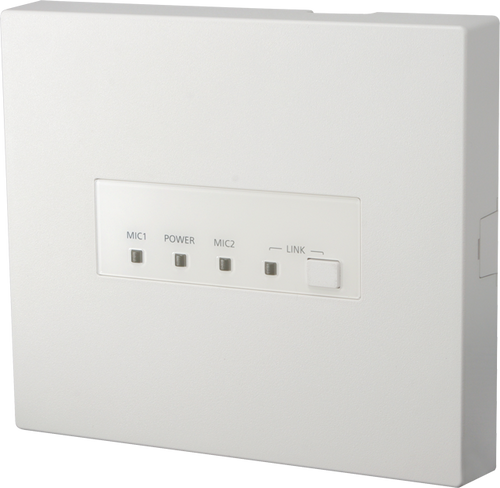

XD Receiver:

• Adjustable for optimal coverage from small classrooms to cafes, gyms, and other large spaces
• Remote control via Teacher Microphone of both microphones and auxiliary levels
• Line level 3.5 stereo mini jack (monaural mix)
• RJ45 line level output, line level 3.5 mm stereo output
• Feedback blocker on both microphone channels



XD Student Handheld Microphone:

• Uni-Directional electret capsule increases microphone sensitivity
• Auxiliary line level input connector allows for playback of any device using a 3.5 mm jack
• Push-to-Talk function allows momentary microphone activation
