Audio Enhancement Sentinel CA-60 IR SAFE Classroom System (Discontinued)

The Sentinel System is an affordable option that provides the latest in classroom security. Without breaking the budget, the Sentinel System is designed specifically to provide classrooms with quality audio and includes a SAFE (Security Alert For Education) System, an integrated silent alarm system. The Sentinel System includes the CA-60 amplifier, the IR satellite receiver, and a teacher microphone.

The CA-60 amplifier is an all-in-one audio solution for teacher voice amplification and the playback of multimedia sources. The CA-60 features Eco mode, which automatically reduces power consumption when no signal is present. This system features a PA voice override, so announcements can always be heard. The Teacher Microphone enables the teacher to control the volume of the student microphone, his or her microphone, and the auxiliary input level.

With SAFE System integration, the Sentinel System has a silent alarm built right into the microphone. In case of an emergency, the SAFE System quickly notifies administrators and first responders when a teacher pushes the “Function” button. SAFE System requires IR technology.

These systems can be modified to accommodate your specific needs, for more information contact our talented sales engineers at 1-888-256-4112.

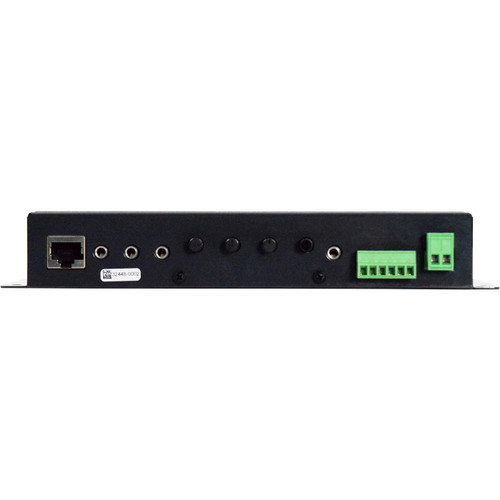

CA-60 Amplifier:

• 50 Watts of power
• Powers 4+ speakers
• 24 VDC power supply
• Automatic switching between front and rear panel inputs
• Three variable gain line inputs:
• Line 1, Line 2, Line 3
• One traditional variable gain line output with front panel volume control
• RJ45 input for XD Receiver (provides both audio and power)
• 3-Band Equalization
• Slim design and efficient heat dissipation allows for easy mounting in a variety of applications including:
• Attached to media carts
• Behind interactive whiteboards
• Inside cabinetry
• Up in the ceiling
• Dimensions: 7.5" (H) x 4" (W) x 1.5" (D)



CS-12 Ceiling Speakers:

• Frequency range of 70 Hz to 15 kHz (-10dB)
• Tuned ported enclosure provides superior bass response
• Integral C-clamp mounting

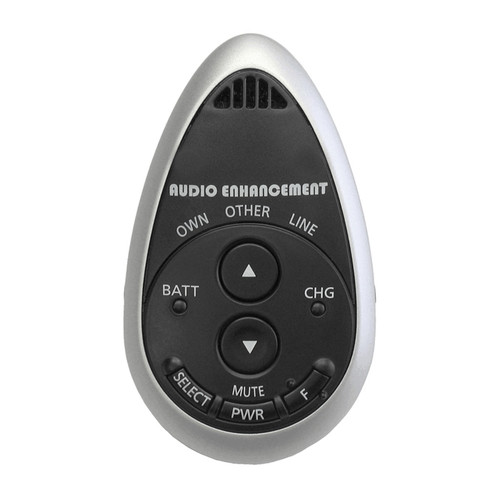

Infrared Teardrop Teacher Microphone:

• M.I.C. Intelligent Charge battery management system prevents overcharging
• Auxiliary line level input connector allows for playback of any device using a standard 3.5 mm jack
• Can be used either with built-in clip or included lanyard
• SAFE alert function available for quick notification of administrators and first responders during an emergency



IR-Satellite Sensor/Receiver:

• Bi-directional remote control and status monitoring via RS-232
• Remote control via teacher microphone of both microphones and auxiliary levels
• Balanced, line-level outputs
• 3 independent outputs or one mixed output
• Feedback blocker on both microphone channels
• SAFE System enabled, LED light indicators



Infrared Student Handheld Microphone:

• Uni-Directional electret capsule increases microphone sensitivity
• Auxiliary line level input connector allows for playback of any device using a 3.5 mm jack
• Push-to-Talk function allows momentary microphone activation
