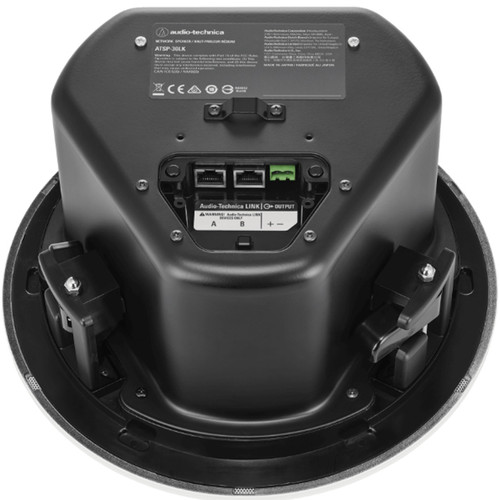

Audio-Technica ATSP-30LP 4" 2-Way A-T Link Enabled Network Ceiling Speakers with DSP and 140° Coverage - Pair

Part #:
ATSP-30LP-US
Model #:
ATSP-30LP
MSRP: $763.53
$649.00
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The Audio-Technica ATSP-30LP is a 4" 2-way A-T LINK-enabled network ceiling speaker pair designed for meeting rooms and commercial spaces, delivering wide 140° coverage, natural speech clarity, and built-in DSP for optimized audio performance and seamless system integration.

Description

Audio-Technica ATSP-30LP 4-Inch 2-Way A-T Link Enabled Network Ceiling Speakers

The ATSP-30LP is a network-enabled 4" 2-way ceiling speaker system designed for high-performance audio reproduction in small to medium-sized meeting rooms, conference spaces, and commercial environments. Built on Audio-Technica's A-T LINK platform, it provides seamless integration with compatible digital mixers and network audio systems for simplified installation and centralized control. The ATSP-30LP system comprises one ATSP-30LK main (active) speaker and one ATSP-30 extension (passive) speaker.

The ATSP-30LK main speaker connects to the included ATSP-30 extension speaker using standard speaker cable (not included). Both speakers mount flush into drop or hard ceilings using the included hardware. Their compact 256 mm (10.4") design delivers rich, full-bodied sound with excellent low-to-mid frequency response and a wide 140° dispersion pattern, making the system ideal for speech reinforcement, background music, video conferencing, and multimedia playback.

Advanced onboard DSP allows tuning of 4-band EQ, delay, phase, sound presets, and power management through compatible Audio-Technica control platforms. Compatible with EASE acoustic modeling software, Audio-Technica's Speaker Layout Tool, and the Audio-Technica LINK Simulator, the ATSP-30LP simplifies system planning while enabling scalable, multi-zone A-T LINK audio deployments for professional AV installations.

Features

  • Audio-Technica LINK-enabled 4" 2-way network ceiling speaker system
  • Includes one ATSP-30LK main (active) speaker and one ATSP-30 extension (passive) speaker
  • Active and passive speakers connect via standard speaker cable (not included)
  • Delivers clear, high-fidelity audio with wide 140° sound dispersion
  • Integrates with Audio-Technica ATDM-0604a, ATDM-1012, and ATDM-1012DAN Digital SmartMixer systems

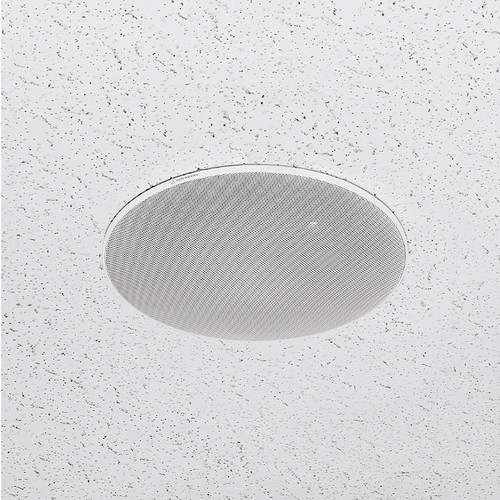

  • Flush-mount design for drop or hard ceilings with included installation hardware
  • Connects using Cat5e or better network cabling for simplified installation
  • Supports daisy-chain deployment of multiple ATSP-30LP speaker systems
  • Enables independent audio routing for multi-zone sound reinforcement and background music
  • Built-in DSP with 4-band EQ, sound presets, delay, phase, and power management
  • DSP configuration and monitoring through the ATDM mixer interface
  • Compatible with EASE software for 3D acoustic modeling
  • Supports Audio-Technica Speaker Layout Tool and LINK Simulator for system planning
  • Paintable perforated metal grilles blend seamlessly with room décor
  • UL 2043 plenum rated for commercial ceiling installations

Specifications

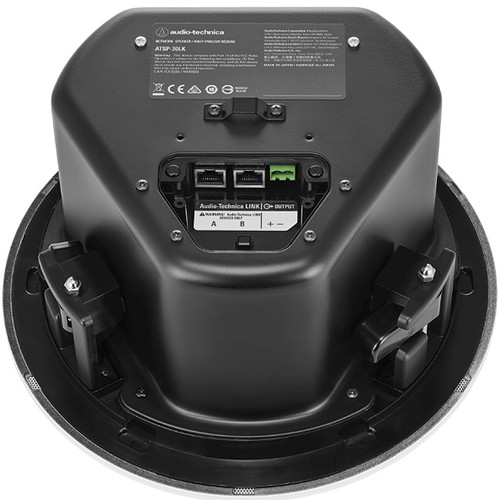

I/O Connector Input/Output: RJ45 Audio-Technica LINK A port
Input/Output: RJ45 Audio-Technica LINK B port
Output: Euroblock 2 pin
Power Requirement Audio-Technica LINK
Speaker Unit 2-way coaxial: 4-inch diameter woofer, 0.75-inch diameter tweeter
Digital Signal Processing Equalizer (4-band EQ, sound profile), delay, phase inversion
Nominal Sensitivity (dB SPL) 84 dB SPL at 1 m/1 W
Maximum Output Level (dB SPL) 95 dB SPL at 1 m
Maximum Output (W) 12W (ATSP-30LK) + 12W (ATSP-30)
Maximum Power Consumption (W) 30W
Frequency Response (-10 dB) 50 Hz to 20 kHz
Coverage Angle 140°
Plenum Rating UL 2043
Operation Temperature Range 0°C to 40°C (32°F to 104°F)
Storage Temperature Range -20 °C to 60 °C (-4°F to 140°F)
Dimensions (Dia x H) 10" (265.1 mm) x 6.4" (161.5 mm)
Weight 11.4 lbs (5.17 kg)

DOCUMENTS

In The Box

  • (1) ATSP-30LK 4" A-T Link Enabled Network Ceiling Speaker (Main Speaker)
  • (1) ATSP30 4" Network Ceiling Speaker (Extension Speaker)
  • (2) Euroblock Connectors
  • (2) Seismic Cables
  • (8) Screws (M3 x 8 mm)
  • (4) Screws (M4 x 8 mm)
  • (4) Tile Bridge
  • (2) Flush Mount Cover
  • (2) Mount Rings
  • (2) Installation Templates
  • Quick Start Guide
