Yamaha VXC8W 8" 2-Way Coaxial Ceiling Speakers with 100° Coverage - White Pair

Description

Details

Yamaha VXC8W 8-Inch 2-Way Coaxial White Ceiling Speakers

The VXC8W 8" 2-way coaxial ceiling speakers are engineered to provide exceptional clarity and output for large commercial spaces needing high-quality background music and intelligible announcements. Featuring a robust 8" woofer paired with a 1" tweeter, the VXC8W delivers rich lows, detailed highs, and wide 100° coverage, ensuring consistent listening experiences across expansive areas such as restaurants, retail stores, meeting rooms, hotels, and houses of worship.

Designed with flexibility in mind, the VXC8W includes integrated transformers that support both low-impedance and high-impedance (70V/100V) systems, with tap settings easily accessible from the baffle. Yamaha's installation-friendly engineering streamlines setup through the anti-drop safety tab, flexible carrying band, O-rings, and tile rails, all included in the box. This thoughtful design reduces installation time while improving jobsite safety and convenience.

To ensure long-term performance, the speakers feature an overload protection circuit that safeguards internal components. Additionally, the paintable white magnetic grille allows for seamless blending into any interior decor. With powerful output and dependable construction, the Yamaha VXC8W is an ideal solution for professionally installed sound environments.

Features

Features

8" 2-way coaxial ceiling speakers for commercial installed sound
Wide 100° coverage for even audio distribution
Custom Yamaha transducers deliver rich lows and clear highs
Supports low-impedance or high-impedance operation with built-in transformers
Anti-drop tab mechanism enhances safety during installation
Flexible carrying band allows easy handling and transport
Includes O-rings and tile rails for secure mounting
Overload protection circuit helps protect speaker components
Paintable magnetic grille blends seamlessly into ceilings
White finish, ideal for modern commercial spaces

Specification

System Type	2-way, Acoustic suspension
Components	LF: 8" Cone HF: 1" Soft dome
Frequency Range (-10 dB)	55 Hz - 20 kHz
Coverage Angle (Horizontal x Vertical)	100° conical
Nominal Impedance	8Ω
Transformar Taps	70V: 60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω) 100V: 60W (170Ω), 30W (330Ω), 15W (670Ω)
Power Rating	NOISE: 90W, PGM: 180W, MAX: 360W
Sensitivity (1W, 1m)	90 dB SPL
Maximum SPL (Calculated, 1m)	116 dB SPL

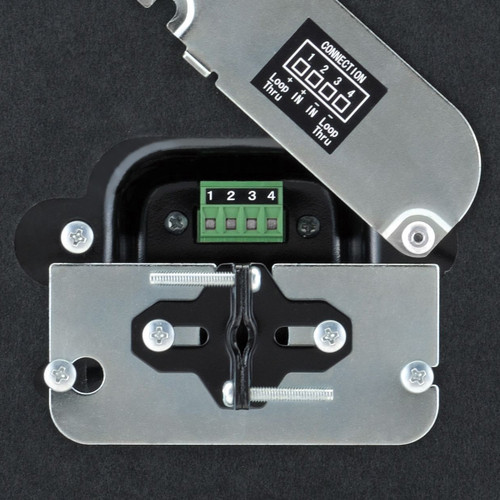

Connectors	1 x Euroblock (4P) (Input: +/-, Loop Thru: +/-)
Color	White
Packaging	Pair
Certificate	UL1480, UL2043, NFPA70, CE, EAC, RoHS
Cutout Size	11.3" (285 mm)
Dimensions (Dia x D)	12.8" (325 mm) x 10.2" (259 mm)
Weight	41.89 lbs (19 kg)
