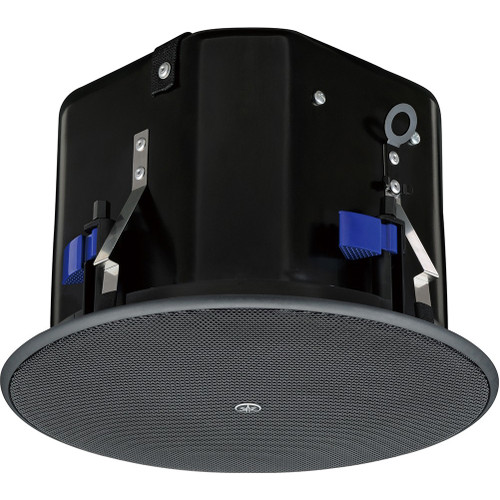

Yamaha VXC6 6.5" 2-Way Coaxial Ceiling Speakers with 110° Coverage - Black Pair

Part #:
VXC6
Model #:
VXC6
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The Yamaha VXC6 6.5" 2-way coaxial ceiling speakers deliver clear, consistent sound for background music and paging. With wide 110° coverage, a low-profile black design, and easy installation hardware, they are ideal for commercial spaces seeking high-quality distributed audio.

Description

Yamaha VXC6 6.5-Inch 2-Way Coaxial Black Ceiling Speakers

The VXC6 6.5" 2-way coaxial ceiling speakers are engineered to deliver clear, natural audio for both background music and voice announcements in commercial installations. Featuring Yamaha's custom transducers, the VXC6 provides balanced full-range sound with smooth highs from its 0.75" soft-dome tweeter and solid low-end response from the 6.5" woofer. With a wide 110° coverage pattern, each speaker fills more space with consistent sound, reducing the number of speakers needed in many installations.

Built for convenience and reliability, the VXC6 includes internal transformers for low- or high-impedance operation, selectable directly from the baffle. Installation is fast and safe thanks to Yamaha's anti-drop tab mechanism, flexible carrying band, and included O-rings and tile rails. The paintable black magnetic grille allows seamless integration into any interior design, making these speakers ideal for restaurants, retail stores, offices, classrooms, and hospitality venues.

For long-term performance protection, the VXC6 features an overload protection circuit to safeguard internal components, ensuring dependable operation even in demanding commercial environments.

Features

  • 6.5" 2-way coaxial ceiling speakers designed for BGM and paging
  • Wide 110° coverage for consistent sound across large areas
  • Custom Yamaha transducers deliver clear highs and tight low-end
  • Supports low-impedance or high-impedance operation with a built-in transformer
  • Anti-drop tab mechanism for safe and easy installation
  • Flexible carrying band for convenient transport
  • Includes O-rings and tile rails for secure mounting
  • Overload protection circuit helps safeguard speaker components
  • Paintable magnetic grille blends with any room design
  • Black finish ideal for modern commercial spaces

Specifications

System Type 2-way, Acoustic suspension
Components LF: 6.5" Cone
HF: 0.75" Soft dome
Frequency Range (-10 dB) 56 Hz - 20 kHz
Coverage Angle (Horizontal x Vertical) 110° conical
Nominal Impedance
Transformar Taps 70V: 60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω)
100V: 60W (170Ω), 30W (330Ω), 15W (670Ω)
Power Rating NOISE: 75W, PGM: 75W, MAX: 300W
Sensitivity (1W, 1m) 86 dB SPL
Maximum SPL (Calculated, 1m) 111 dB SPL
Connectors 1 x Euroblock (4P) (Input: +/-, Loop Thru: +/-)
Color Black
Packaging Pair
Certificate UL1480, UL2043, NFPA70, CE, EAC, RoHS
Cutout Size 9.8" (247 mm)
Dimensions (Dia x D) 11.3" (286 mm) x 8.1" (205 mm)
Weight 30.86 lbs (14 kg)

DOCUMENTS

In The Box

  • (2) VXC6 Black Speakers
  • (2) Black Grilles
  • (2) O-rings
  • (2) Tile Rails
  • (4) Screws
  • (1) Cutout Template
  • Owner's Manual
