Audio-Technica ATW-3141b Wireless Handheld System (Discontinued)

Audio-Technica ATW-3141b Wireless Handheld System (Discontinued)

Name: Audio-Technica ATW-3141b Wireless Handheld System (Discontinued)
Brand: Audio-Technica
SKU: AT-ATW-3141B
Price: 549 USD
Availability: OutOfStock

Write a Review

Part #:

ATW-3141b

Model #:

ATW-3141b

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Description

The AT-ATW-3141B offers up to 1001 selectable UHF frequencies and new features for clear sound and intuitive operation. They have simplified selections of usable frequencies, increased system reliability, and illuminated transmitter screens for clear reads on dark stages. It all adds up to the luxury of rock-solid, richly detailed high-fidelity sound.

The 3000 Series is available with either a dynamic or condenser handheld transmitter featuring rugged metal construction and slim ergonomic design. The ATW-T341b handheld transmitter includes the stage-proven Artist Elite® AE4100 cardioid dynamic element, and the ATW-T371b handheld transmitter features the studio-quality Artist Series ATM710 cardioid condenser element.

Includes an ATW-R3100b receiver and ATW-T371b handheld cardioid condenser microphone/transmitter.

Features

996 - 1001 UHF frequencies in one of two UHF frequency ranges
Available in two frequency bands:

Band C: 541.500 MHZ to 566.375 MHz (TV Channels 25 - 30)
Band I : 482.000 MHz to 507.000 MHz (TV Channels 16 - 20)

Antenna power available for powered antennas & other in-line RF devices
Nine pre-coordinated frequency scan groups simplify selection of usable frequencies in a multi-channel wireless system
True Diversity operation reduces dropouts
Advanced digital Tone Lock™ squelch effectively blocks stray RF and communicates transmitter data for receiver display
Transmitters offer backlit LCD & dual-color LED
Locking battery compartment with secure latch and robust design
Ground-lift switch helps eliminate audible hum caused by ground loops
Balanced and unbalanced audio output jacks

Specifications

Overall System
Minimum Frequency Step	25 kHz
Maximum Deviation	±35 kHz
Modulation Mode	FM
Dynamic Range	> 110 dB (A-weighted), typical
Operating Range	300' typical
Operating Temperature Range	-5º C to +45º C (23º F to 113º F)
Frequency Response	70 Hz to 15 kHz

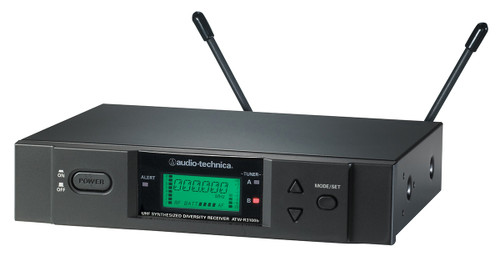

ATW-R3100 Receiver
Receiving System	True diversity
Image Rejection	60 dB nominal, 55 dB minimum
RF Sensitivity	20 dBuV at 60 dB S/N ratio
Maximum Output Level	XLR, balanced: +9 dBV; ¼" (6.3 mm), unbalanced: +7 dBV
Antenna Input	BNC-type, 50 ohms Bias voltage 12V DC, 60 mA, each
Power Requirements	12-18V DC, 500 mA
Dimensions (H x W x D)	1.73" (43.94 mm) x 8.27" (210 mm) x 6.47" (164.34 mm)
Weight	2.4 lbs (1.1 kg)
ATW-T341b Handheld Transmitter
RF Power Output	High: 30 mW; Low: 10 mW, (switchable), at 50 ohms
Spurious Emissions	Following federal and national
Microphone Element	Dynamic cardioid
Batteries	Two 1.5V AA, not included
Battery Life	High: 6 hours (alkaline); Low: 8 hours (alkaline)
Dimensions (L x Dia)	9.33" (237 mm) x 1.89" (48.0 mm)
Weight	1 lbs (0.45 kg)
