- Description
Details

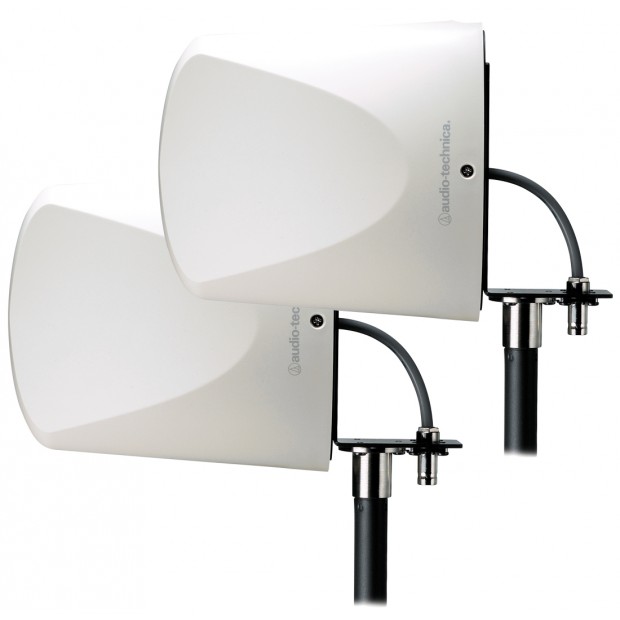

Pair of UHF (655-681 MHz) powered dipole antennas provide effective signal pickup for diversity UHF wireless systems where longer antenna runs are required. Designed for temporary or permanent installation, these antennas are powered by 12 volts provided on the antenna cable by the associated receiver or antenna distribution system. An internal gain-setting switch permits selection of +10 or +4 dB operation. Screw-terminal connections in the antennas are designed for use with RG58-type or RG8-type RF transmission cables. Package includes pair of antennas.
- Features
Features
- Pair of UHF (655-681 MHz) powered dipole antennas
- Designed for temporary or permanent installation
- Provide effective signal pickup for diversity UHF wireless systems
- An internal gain-setting switch permits selection of +10 or +4 dB operation
- Designed for use with RG58-type or RG8-type RF transmission cables
- Specification
Antenna Type Half-wavelength dipole with RF amplifier Operating Frequencies 655-681 MHz Output Impedance 50 ohms Nominal Amplifier Gain +10 dB (Hi), +4 dB (Lo), switch selected Power Required +12V DC on RF cable center conductor, 14 mA per antenna Dimensions (H x W x D) 5.51" (140 mm) x 2.44" (62 mm) x 5.91" (150 mm) Net Weight 1 lbs (275 g) - Documents
Documents
- Reviews
Write Your Own Review
