Audio-Technica ATW-T6001S 6000 Series UHF Synthesized Wireless Bodypack Transmitter (Discontinued)

The Audio-Technica ATW-T6001S is a UHF synthesized wireless transmitter with rugged, ergonomic metal body. Easy-to-read display, flexible 1/4" wave whip antenna, battery fuel gauge selectable for alkaline or NiMH batteries, cH-style screw-down 4-pin connector. IR sync functionality; adjustable gain (0-20 dB, in 2 dB steps). Powered by two AA batteries.

Select a microphone or cable with a cH-style screw-down 4-pin connector from the list below to complete the system.

Audio-Technica's 6000 Series High Density Wireless System is designed to give users the freedom to work within an increasingly congested radio frequency spectrum. The 6000 Series operates in the 944-952 MHz band, keeping it free from broadcast TV interference. Just as important, the system uses advanced IMD suppression methods to enable its channels to be spaced at 125 kHz intervals, allowing up to 31 simultaneous channels within 4 MHz of bandwidth.

With its full-rack metal chassis, including reinforced mounting ears and rear rack mount capability, the system's ATW-R6200 receiver installs quickly and securely, providing two channels per rack space. The receiver's clear, easy-to-read displays and front-panel controls make it simple to configure the system and monitor frequency, RF and AF levels, transmitter battery level, mute status and more. The receiver has a 3-pin XLRM balanced output and 6.3 mm (1/4") balanced output for each channel, and a front-panel 6.3 mm (1/4") headphone jack with volume control that can be switched to monitor either channel. Two channel-specific Ethernet ports allow receivers to be connected to a hub or router with a DHCP server and, by extension, to a PC. Then, by using A-T's Wireless System Monitor software, the connected receivers may by monitored and configured on the PC.

The system also features IR Sync functionality, which greatly streamlines the process of configuring transmitters. From the receiver, users can set a transmitter's RF power output, mic gain and battery type (alkaline or Ni-MH) - and lock the settings, if desired, to prevent inadvertent changes - and then communicate those settings to the transmitter via IR Sync.

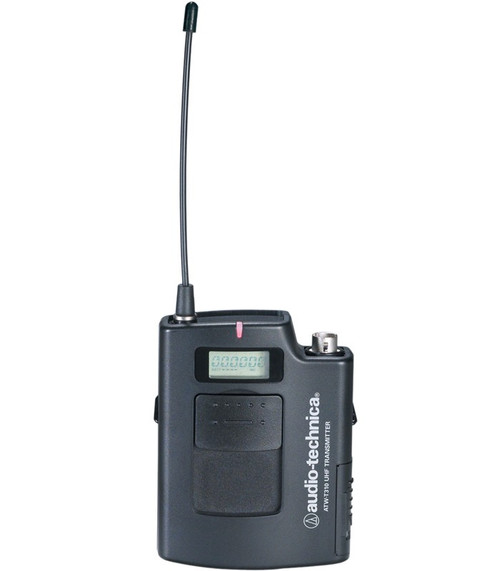

The compact ATW-T6001 body-pack transmitter features rugged metal construction and an ergonomic design. It is equipped with a newly designed miniature HRS connector that works with a variety of Audio-Technica lavalier and headworn microphones*, and it has a flexible 1/4 wavelength whip antenna to ensure a broad operating range. Controls, situated within the battery compartment to prevent accidental changes, can be used to adjust the gain (from 0 to 20 dB, in 2 dB steps), frequency, battery type and other settings. The ATW-T6001 is powered by two AA batteries.

• Uses advanced IMD suppression techniques to allow 31 simultaneous channels within a 4 MHz tuning bandwidth
• Compander circuitry provides greater dynamic range and lower noise
• Easy transmitter setup via IR sync
• Audio input adjustable from 0 to 20 dB of gain (2 dB steps)
• Compact transmitter design with rugged, ergonomic metal body
• A highly reliable, miniature microphone connector
• Compatible with a variety of headworn and lavalier microphones
• Clear, easy-to-read display
• Controls inside battery compartment to prevent accidental activation
• Lever push switch for easy menu navigation
• Flexible 1/4 wavelength whip antenna with broad operating range
• Battery fuel gauge selectable for alkaline or nickel- metal hydride type batteries
