Audio-Technica ATW-R6200S 6000 Series UHF High Density Wireless Receiver (Discontinued)

Audio-Technica's 6000 Series High-Density Wireless System is designed to give users the freedom to work within an increasingly congested radio frequency spectrum. The 6000 Series operates in the 944-952 MHz band, keeping it free from broadcast TV interference. Just as important, the system uses advanced IMD suppression methods to enable its channels to be spaced at 125 kHz intervals, allowing up to 31 simultaneous channels within 4 MHz of bandwidth.

The ATW-R6200S is a UHF synthesized diversity receiver. It operates in the 944¨C952 MHz range; spaces channels at 125 kHz intervals, enabling the use of 31 simultaneous channels within 4 MHz of bandwidth. The ATW-R6200S comes with two receivers per unit, each with an easy-to-read display, 6.3 mm (¼") balanced output, 3-pin XLR-M balance output, Ethernet port for PC monitoring. Featuring high-performance filtering, 6.3 mm (¼") headphone jack with volume control. The system also features IR sync functionality, which greatly streamlines the process of configuring transmitters. From the receiver, users can set a transmitter's RF power output, mic gain and battery type (alkaline or Ni-MH) – and lock the settings, if desired, to prevent inadvertent changes – and then communicate those settings to the transmitter via IR sync.

With its full-rack metal chassis, including reinforced mounting ears and rear rack mount capability, the system's ATW-R6200S receiver installs quickly and securely, providing two channels per rack space. The receiver's clear, easy-to-read displays and front-panel controls make it simple to configure the system and monitor frequency, RF and AF levels, transmitter battery level, mute status and more. The receiver has a 3-pin XLRM balanced output and 6.3 mm (1/4") balanced output for each channel, and a front-panel 6.3 mm (1/4") headphone jack with volume control that can be switched to monitor either channel. Two channel-specific Ethernet ports allow receivers to be connected to a hub or router with a DHCP server and, by extension, to a PC. Then, by using A-T's Wireless System Monitor software, the connected receivers may be monitored and configured on the PC.

Two transmitters are available for use with the 6000 Series: ATW-T6001S body-pack transmitter and ATW-T6002xS handheld transmitter. Both transmitters feature rugged, ergonomic metal bodies, highly visible OLED screens, programmable features, and soft-touch controls (situated within the battery compartment to prevent accidental changes) that can be used to adjust the gain (from 0 to 20 dB, in 2 dB steps), frequency, battery type and other settings. Both are powered by two AA batteries. The compact ATW-T6001S body-pack transmitter comes with a flexible ¼ wave whip antenna and is equipped with a newly designed, rugged cH-style screw-down 4-pin connector that works with a variety of Audio-Technica lavalier mics, headworn mics, and cables. The ATW-T6002xS handheld transmitter includes a high-pass filter and an industry-standard thread mount designed to work with six interchangeable A-T microphone capsules, as well as other compatible capsules.

Additionally, Audio-Technica's ATW-DA410 antenna distribution system maintains crucial system performance when a number of simultaneous channels are being used within the 6000 Series' high-density structure.

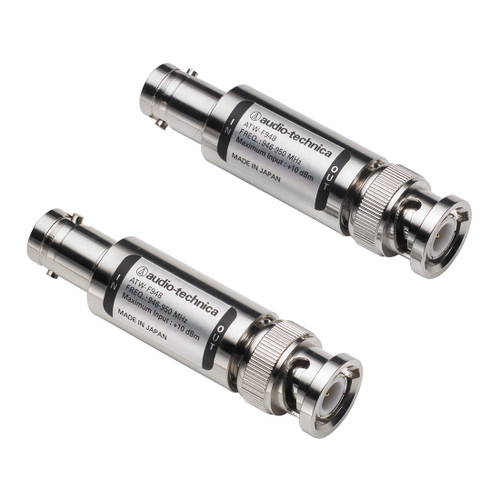

Likewise, ATW-F948 antenna filters can be used with the 6000 Series to cut unwanted radio waves emanating from mobile phones and other external RF devices. The filters are outfitted with BNC-J (IN) and BNC-P (OUT) connectors and require no external power source. They come in sets of two.

All of the units in - and associated with - the 6000 Series (ATW-R6200S receiver, ATW-T6001S body-pack transmitter, ATW-T6002xS handheld transmitter, compatible lavalier and headworn microphones, ATW-DA410 antenna distribution system, ATW-F948 antenna filters) are offered as individual, à la carte products, instead of being combined in pre-configured systems, in order to give users the greatest possible flexibility in constructing a system that fits their needs.

• Advanced IMD suppression enables the use of 31 simultaneous channels within a 4 MHz tuning bandwidth
• High-performance filtering removes external noise from outside the operating range
• Clear, easy-to-read displays on receiver and transmitter
• Easy transmitter setup via IR sync
• Headphone output jack for monitoring receiver output
• Ethernet connection allows monitoring and configuration via PC
• Both transmitters feature rugged, ergonomic metal bodies, highly visible OLED screens, programmable features, soft-touch controls, and switchable 2/10/50 mW RF power
• The rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
• Handheld transmitter features high-pass filter and accepts six interchangeable microphone capsules (based on best-selling Audio-Technica models) that use industry-standard thread mount and provide low handling noise
• Battery fuel gauge is selectable for alkaline or nickel-metal hydride batteries
• Full-rack metal receiver chassis includes reinforced mounting ears and rear rack mount capability
