The M2 Wireless In-Ear Monitor System is designed to make professional in-ear monitoring features accessible for performers who want to be free from the problems associated with floor wedges. The stereo monitor system offers Personal Mix Control, which gives each musician volume and mix control of two independent signals on stage, via easy-to-use controls on the M2R stereo body-pack receiver. The wireless UHF M2T Stereo Transmitter provides a choice of 100 selectable frequencies and is equipped with two XLR/¼” combo input connectors into which users can connect line-level inputs. While up to 10 complete M2 systems may be used on stage simultaneously, any number of M2R stereo receivers may be used on the same frequency with a single M2T stereo transmitter. These rugged systems are built to stand up to the inevitable bumps of life on the road, delivering clear, natural sound for touring and installed-sound uses.
| Overall System | |
|---|---|
| Minimum Frequency Step | 25 kHz |
| Modulation Mode | FM stereo |
| Maximum Deviation | ±40 kHz |
| Dynamic Range | 90 dB (typical), A-weighted |
| Total Harmonic Distortion | |
| Operating Range | 100 m (300'), typical Open range environment with no interfering signals. |
| Operating Temperature Range | -5° C (23° F) to +50° C (122° F) Battery performance may be reduced at very low temperatures. |
| Frequency Response | 60 Hz to 13 kHz (+/- 3 dB) |
| Simultaneous Use | 10 channels per band (maximum recommended) |

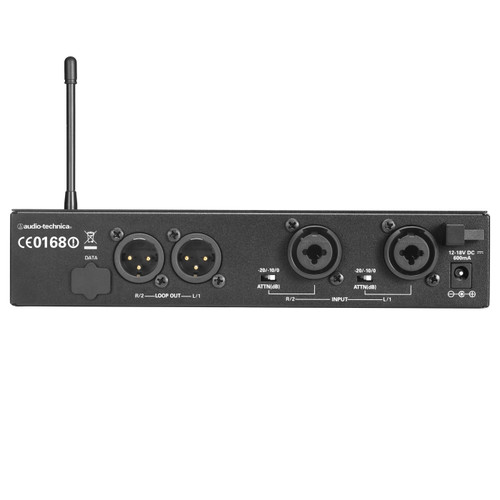

| M2T Transmitter | |
| RF Power Output | 10 mW/30 mW (switchable internally), 50 ohms Limited to 10 mW within 863 MHz to 865 MHz |
| Input Connections | XLRF-type/6.3 mm stereo (1/4") combination connector Pin 1 and Sleeve: Ground Pin 2 and Tip: Hot Pin 3 and Ring: Cold |
| Maximum Input Level | XLRF-type/6.3 mm stereo, (1/4") balanced: +26 dBu 6.3 mm (1/4") mono, unbalanced: +26 dBu |
| Loop Output Connector | XLRM-type connector Pin 1: Ground Pin 2: Hot Pin 3: Cold |
| Power Requirement | 12-18V DC, 600 mA |
| Accessories Included | AC adapter (country dependant); rack mount adapters |
| Dimensions (H x W x D) | 1.7" (44 mm) x 8.3" (210 mm) x 5.2" (132 mm) |
| Net Weight | 1.92" (0.87 kg) |
| M2R Body-Pack Reciever | |
| Receiving System | Double conversion superheterodyne |
| RF Sensitivity | 20 dBuV (at 60 dB S/N ratio, 50 ohms termination) |
| Headphone Output Connector | 3.5 mm TRS stereo phone jack |
| Headphone Output Power | 65 mW (at 32 ohms) |
| Antenna Input | SMA-type, 50 ohms |
| Aux Input Connector | 3.5 mm TRS stereo phone jack |
| Batteries | 2 x 1.5V AA (not included) |
| Battery Life | 8 hours (alkaline) Depending on battery type and use pattern |

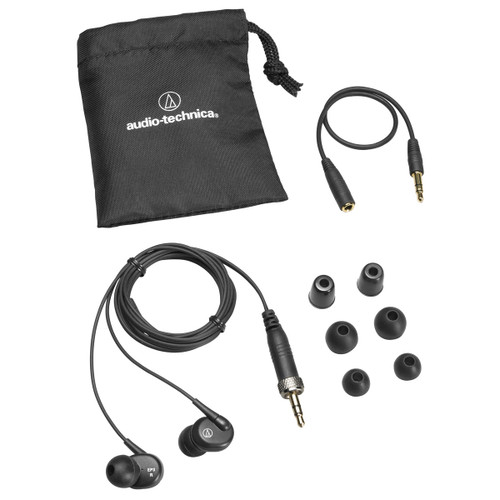

| Accessories Included | EP3 earphone; frequency sticker; flexible antenna |
| Dimensions (H x W x D) | 4.33" (110 mm) x 2.76" (70 mm) x 0.98" (25 mm)110 |
| Net Weight | 0.24 lbs (0.11 kg) |
