Inside the Design

This auditorium sound system with two Bose F1 Model 812 loudspeakers feature adjustable coverage patterns and produce clear natural vocals and midrange clarity even at high volumes without requiring the use of a mixer. This high-quality auditorium PA speaker system includes a wireless handheld microphone, Bluetooth receiver and gives you the flexibility to direct your sound exactly where you want it to accommodate your unique space. Stream audio wirelessly from any Bluetooth-enabled smartphone, tablet or other mobile devices.

Sound System Features:

• Bose flexible array speakers can be configured into four unique shapes for the best possible coverage pattern
• Powerful high-output 1000W loudspeakers deliver a maximum SPL of 132 dB
• Value-packed Audix handheld diversity wireless system has slight bass proximity, tailored mid-range, and full-bodied sound
• Wirelessly stream audio from any Bluetooth-enabled smartphone, tablet or other mobile devices
• Bluetooth receiver supports wireless streaming audio using Bluetooth A2DP+EDR technology
• Speaker wall brackets allow for both pitch and yaw adjustments to enable flexible mounting options

About the System Components

This Pro Acoustics designed sound system includes two Bose F1 Model 812 flexible array 1000W powered portable array loudspeakers with adjustable coverage patterns and pan/tilt wall mount brackets, an Audix AP41 OM2 wireless handheld microphone system, a C2G Bluetooth audio receiver with NFC and cables to complete your system.

Some products in this sound system design are now discontinued. Please call for replacements.
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

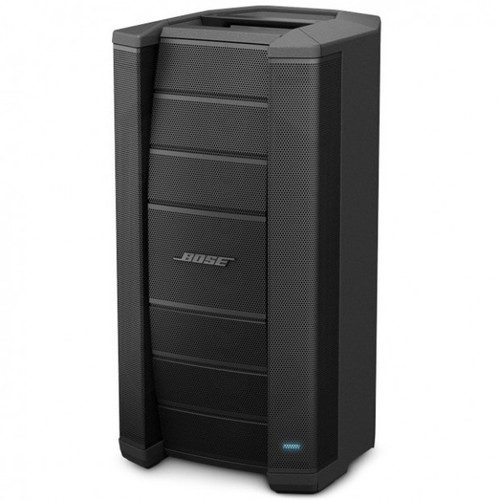

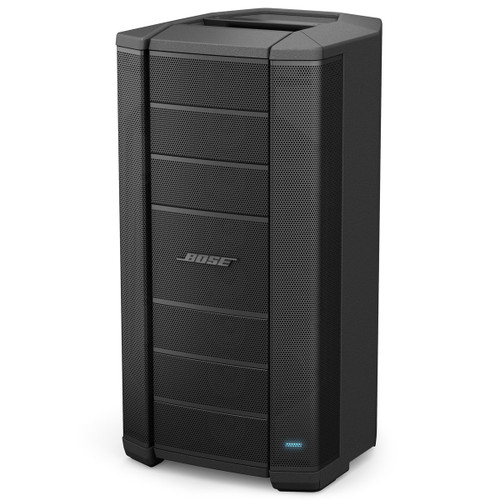

Bose F1 Model 812 Flexible Array Powered Portable 1000W Array Loudspeakers with Adjustable Coverage Pattern:

• Flex array is a flexible baffle that can be configured into four unique shapes ("Straight," "C," "J" or "Reverse J"), allowing the customer to choose the best possible coverage pattern for the application
• Vertically oriented 8-driver mid/high line array, with each driver mounted on a custom 100° waveguide, helps deliver wide, consistent coverage
• 12-inch LF driver provides high performance at low frequency for strong low-frequency output
• Bi-amplified design with 2 high-output, Class-D amplifiers to separately power the FLEX array and 12-inch LF driver

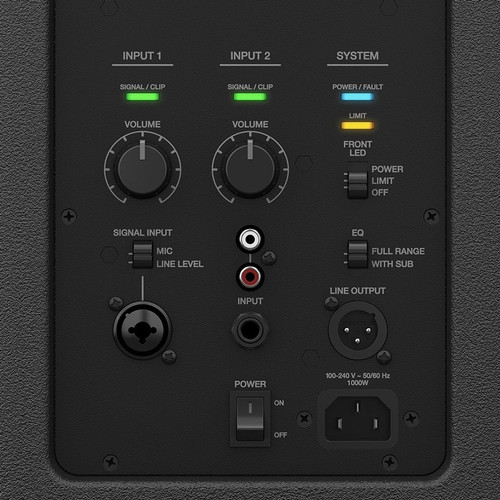

• 2 input channels with independent volume controls and Line Level/Mic switch on Channel 1



Audix AP41 OM2 Wireless Handheld Microphone System:

• 32 MHz Wide spectrum receiver
• 106 Pre-coordinated frequencies for quick, easy and reliable set up
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to receiver via infrared beam
• 64 MHz Wide spectrum transmitter with OM2 dynamic capsule
• Durable metal housing
• 14 Hour run time - AA batteries

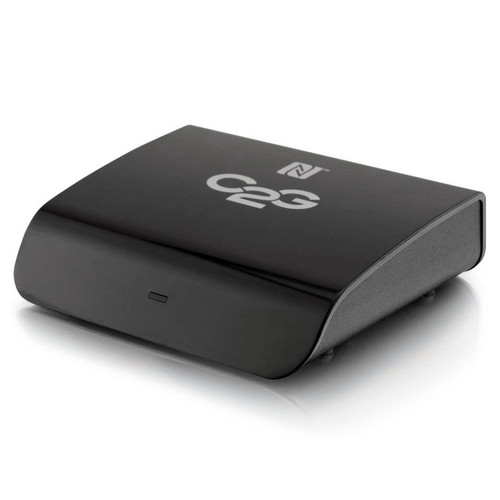

C2G 41321 Bluetooth Audio Receiver with NFC:

• Near Field Communication (NFC) provides for a simple pairing process
• Supports wireless streaming audio using Bluetooth A2DP+EDR technology
• Wireless connectivity up to 32 ft
• Digital Audio output via Toslink or Stereo Audio output via 3.5 mm



Bose F1 RMUBRKT1 Pan and Tilt Brackets:

• Fits all RMU loudspeakers, F1 Loudspeakers, and Panaray 402 Series IV
• Horizontal or vertical mounting (RMU105, vertical only)
• Convenient hook-and-lock method for easy mounting
• Available in indoor (RMUBRKT1) and outdoor models (WBPWR-50)

• (2) Bose F1 Model 812 Flexible Array Powered Portable 1000W Array Loudspeakers
• (2) Bose RMUBRKT1 Pan and Tilt Brackets
• (1) Audix AP41 OM2 Wireless Microphone System with R41 Diversity Receiver and H60/OM2 Handheld Transmitter
• (1) C2G 41321 Bluetooth Audio Receiver with NFC

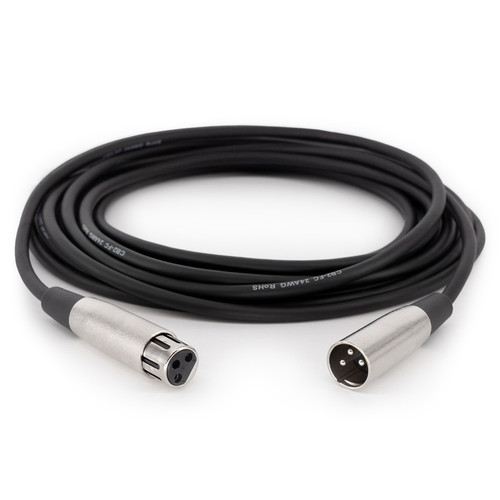

• (1) CBI MLN-3 XLR Patch Cable - 3ft
• (1) CBI MLN-30 XLR Cable - 30ft
