Auditorium Sound System with 2 JBL CBT 70J Loudspeakers and Yamaha Mixer (Discontinued Components)

This Auditorium Sound System with 2 JBL CBT 70J-1 Line Array Column loudspeakers is a pre-configured versatile full range loudspeaker system for your school auditorium and any small to large auditorium venues.

The CBT 70J-1 combines Constant Beamwidth Technology with a physical J-shaped curving, resulting in a very well controlled progressive line array with asymmetrical vertical coverage. The asymmetrical coverage produces a higher concentration of sound with a tighter pattern from the upper half of the array and a lower concentration of sound with a broader vertical pattern from the lower half of the array. This sends more sound toward the far area of the room than to the near area of the room, resulting in more even front-to-back SPL levels than would be the case from a traditional speaker or column that projects symmetrically in the vertical plane. The two-way coaxial design provides a wide 60 Hz – 20 kHz bandwidth. The low-diffraction baffle eliminates frequency response irregularities that could otherwise occur due to baffle discontinuities. The thick, heavy-duty aluminum grille stands up to portable/event applications while allowing for rust-free installation outdoors. The slim, compact design fits well into virtually any architectural decor. The 27.6" tall line array height provides consistent pattern control throughout the intelligibility band, making the CBT 70J-1 work well in difficult acoustic environments.

For a more precise control and enhancement of your sound, the Yamaha MG12XU 12-Channel Mixing Console comes equipped with a suite of Yamaha's renowned SPX effects. Featuring high-resolution Chorus, Flanger, Distortions, Reverb and Delay, all with editable parameters, these are the same multi-effects processors used on Yamaha's high-end mixing consoles, giving you the tools you need to elevate your mixes to a higher plane. This design concept ensures that by just plugging in a single power cable and making a few simple, intuitive connections, anyone can be their own sound engineer.

Crown's XTI 2002 amplifier defines the standard for portable PA systems with unmatched performance, technology and power-to-the-people affordability that delivers the goods night after night without even breaking a sweat. There's no debate — when you choose Crown's XTi Series, you’re choosing one of the most powerful and efficient amplifiers on the market today. With innovations designed to simplify your life and rock their world. Innovations like integrated DSP that allows you to quickly and easily configure crossovers, EQ, limiting and delay, along with tools like a pink noise generator, subharmonic synthesizer, and universal tracking switch-mode power supply, which reduces power draw and waste heat. And as the first Crown amps to use Icepak™ thermal modeling software, they are at the top of their class when it comes to thermal efficiency and lightweight portability.

The Juice Goose JG 8LED features two long lasting, cool-to-the-touch, dimmable LED lights, housed in anodized black aluminum tubes that slide into the chassis when not in use. The switched outlets on the back of each unit provide power while the discreet components inside provide a basic level of protection to help clean up dirty and dangerous AC voltage. The JG Series products provide this fast acting protection for incoming AC power. The Basic power conditioning includes a fast-acting metal oxide varistor (MOV) installed to clamp voltage spikes running between the incoming line and neutral leads. This level of conditioning also includes a capacitor to reduce the level of AC line interference that may be transmitted between the line and neutral leads. The JG 8LED features two slide out, dimmable LED lights that are brighter and more reliable than incandescent bulbs. Each light tube can be rotated to control the direction of the two light beam. After use, the lights slide inside the chassis to store conveniently away.

Audio-Technica's third-generation 3000 Series wireless systems offer up to 1001 selectable UHF frequencies and new features for clear sound & intuitive operation. We've simplified selection of usable frequencies, increased system reliability, and illuminated transmitter screens for clear reads on dark stages. It all adds up to the luxury of rock-solid, richly detailed high-fidelity sound.

The Listen Tech LP-3CV-072-01 RF Value Package offers economic value for meeting your assistive listening needs backed by Listen's exceptional service and support. The package is easy to use and is ideal for houses of worship, classrooms, theatres, employee trainings, business meetings, and much more. Open up a world of communication so everyone can have the opportunity to clearly hear your message.

The PRO 49QL quick-mount double-gooseneck cardioid condenser microphone is designed to plug into any standard XLRF-type surface or cable connector. With a flat, smooth frequency response and self-contained electronics, this mic features a quiet, fixed-placement, long-life gooseneck and wide-range condenser element with low-mass diaphragm for superior performance.

The Gator GRW1009509 is a fixed Wall Mounted Rack, 9U, 17" Deep with a vented glass front door. The GRW-SHELF1SLD is a 1U Sliding Shelf, 13.8" deep, for your Yamaha MG12XU Mixer to sit on.

Some products in this sound system design are now discontinued. Please call for replacements.
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

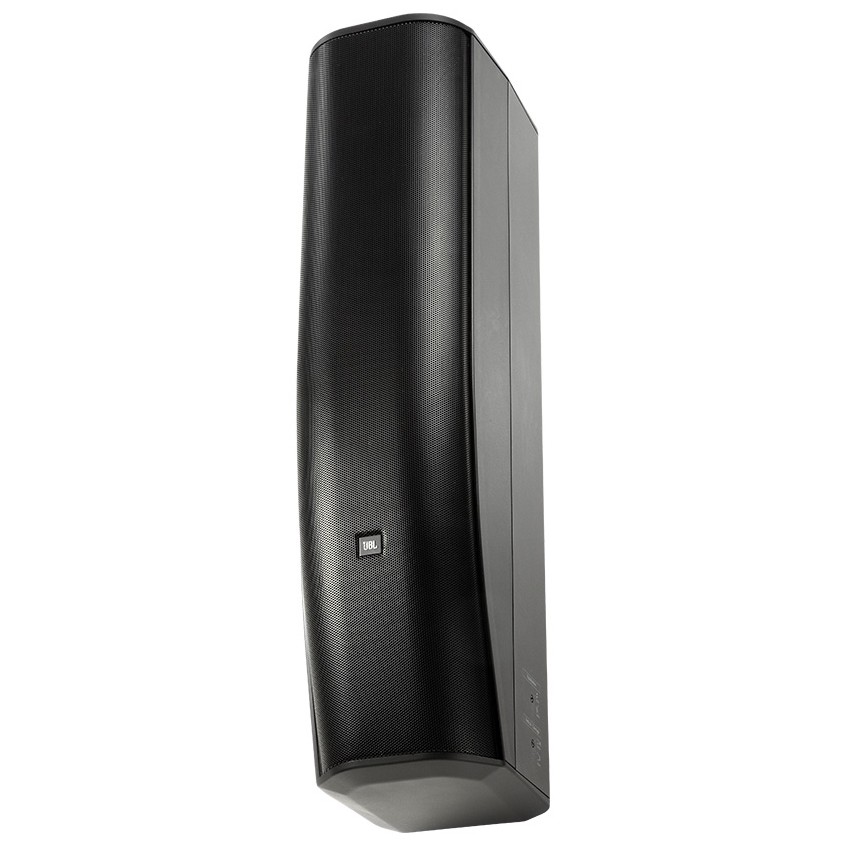

JBL CBT 70J-1 Line Array Column Loudspeakers:

• Asymmetrical vertical coverage sends more sound toward far area of room to make front-to- back sound levels more consistent

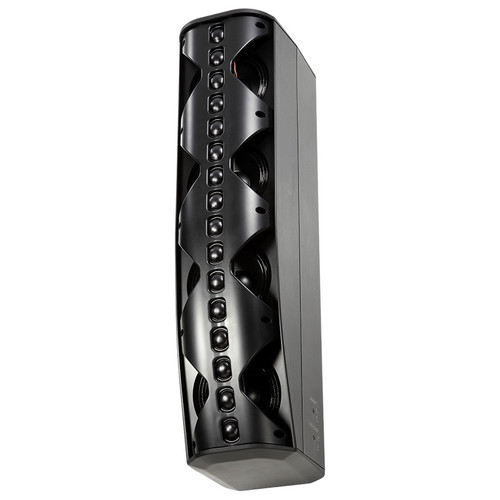

• Components: Sixteen 25 mm (1 in) soft dome tweeters and four 125 mm (5 in) high-power LF drivers, arranged coaxially
• Patent-pending Constant Beamwidth TechnologyTM provides constant directivity up to the highest frequencies and reduces out-of- coverage lobing

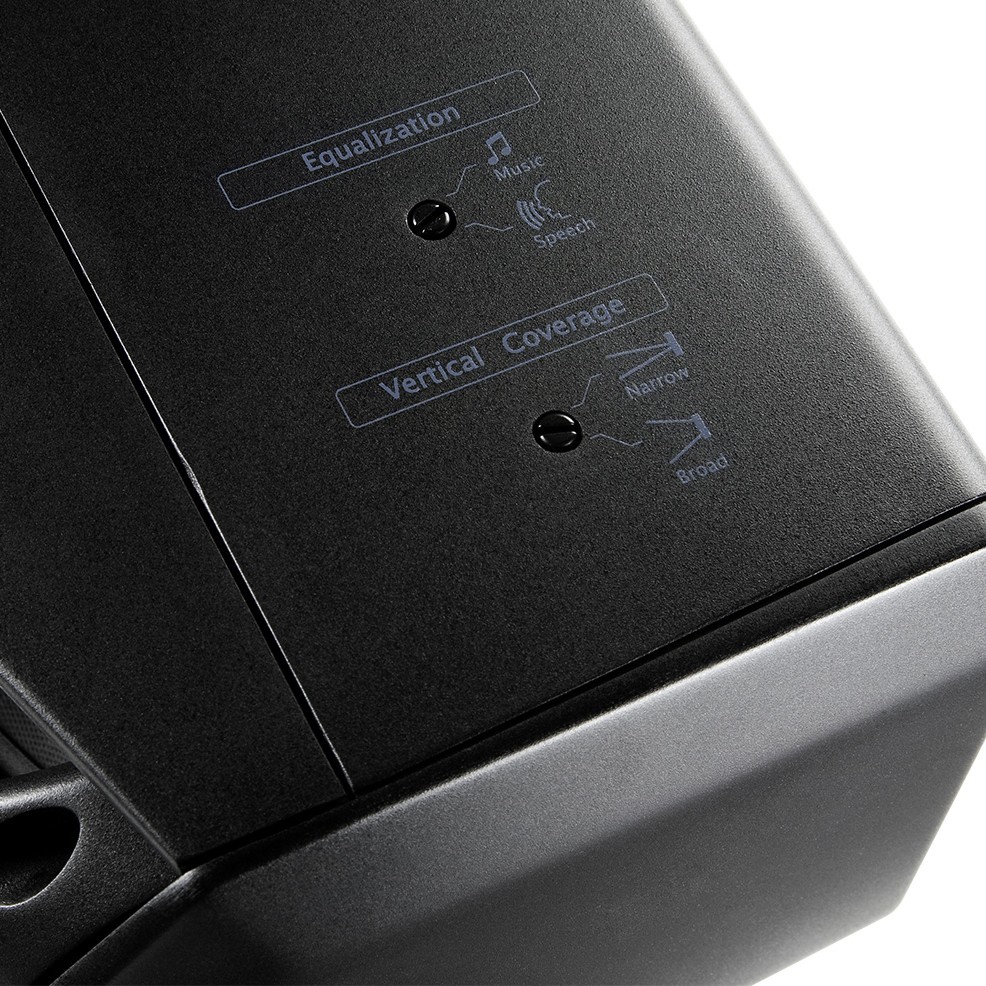

• Vertical pattern coverage switchable between 45° for medium-throw coverage and 25° for long-throw applications
• Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode
• Dynamic SonicGuardTM overload protection of HF devices
• Swivel (pan) / tilt wall bracket included

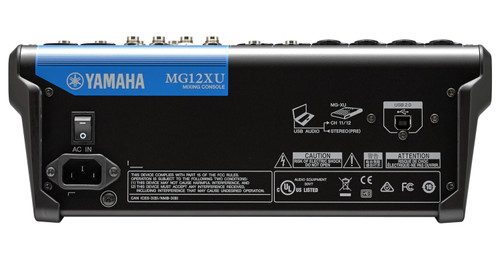

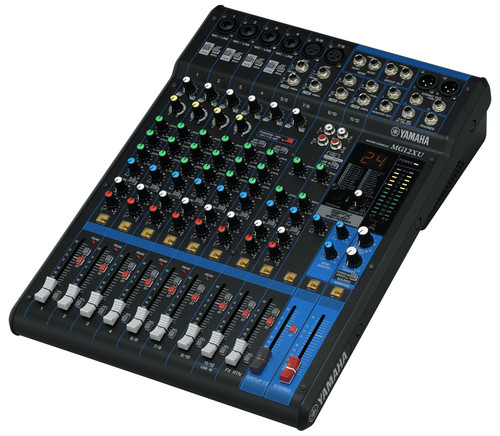

Yamaha MG12XU 12-Channel Mixing Console:

• 12-Channel Mixing Console
• Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
• 2 GROUP Buses + 1 Stereo Bus
• 2 AUX (incl. FX)
• “D-PRE” mic preamps with an inverted Darlington circuit
• 1-Knob compressors
• High-grade effects: SPX with 24 programs
• 24-bit / 192kHz 2in / 2out USB Audio functions
• Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
• Includes Cubase Al DAW software download version
• PAD switch on mono inputs
• +48V phantom power
• XLR balanced outputs
• Internal universal power supply for world-wide use
• Metal chassis

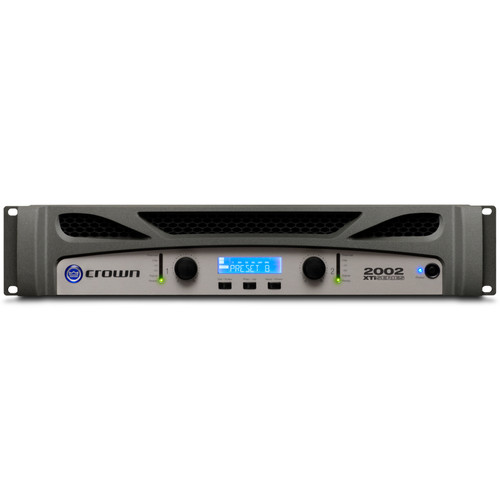

Crown XTi 2002 2-Channel Stereo Power Amplifier:

• Peakx Plus™ Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack, and release
• Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
• 3 User-defined fan mode controls – normal, early and fullspeed – for matching fan performance to a specific application
• New system monitoring provides software visibility of AC line voltage and power supply temperature
• Integrated cast-aluminum handles for easy handling and enhanced durability
• Locking power cord clip provides a secure connection between the amplifier and power cord
• Updated HiQnet Band Manager™ and System Architect™ control software
• Increased number of presets to a total of 30; 29 of which are user definable



Juice Goose JG 8LED Power Distribution Center with LED Lights:

• 2 Slide out, dimmable LED lights
• Light tubes can be rotated to control the direction of the two light beams
• Lights slide inside the chassis to store conveniently away



Audio-Technica ATW-3141b Wireless Handheld System:

• 996 - 1001 UHF frequencies in one of three UHF frequency ranges
• Available in three frequency bands:
• 541.500 MHZ to 566.375 MHz (TV Channels 25 - 30)
• 655.500 MHz to 680.375 MHz (TV Channels 44 - 49)
• 482.000 MHz to 507.000 MHz (TV Channels 16 - 20)
• Antenna power available for powered antennas & other in-line RF devices
• Nine pre-coordinated frequency scan groups simplify selection of usable frequencies in a multi-channel wireless system
• True Diversity operation reduces dropouts
• Advanced digital Tone Lock™ squelch effectively blocks stray RF and communicates transmitter data for receiver display
• Transmitters offer backlit LCD & dual-color LED
• Locking battery compartment with secure latch and robust design
• Ground-lift switch helps eliminate audible hum caused by ground loops
• Balanced and unbalanced audio output jacks



Audio-Technica ATW-3131b Wireless Lavalier System:

• 996 - 1001 UHF frequencies in one of three UHF frequency ranges
• Available in three frequency bands:
• 541.500 MHZ to 566.375 MHz (TV Channels 25 - 30)
• 655.500 MHz to 680.375 MHz (TV Channels 44 - 49)
• 482.000 MHz to 507.000 MHz (TV Channels 16 - 20)
• Antenna power available for powered antennas & other in-line RF devices
• Nine pre-coordinated frequency scan groups simplify selection of usable frequencies in a multi-channel wireless system
• True Diversity operation reduces dropouts
• Advanced digital Tone Lock™ squelch effectively blocks stray RF and communicates transmitter data for receiver display
• Transmitters offer backlit LCD & dual-color LED
• Locking battery compartment with secure latch and robust design
• Ground-lift switch helps eliminate audible hum caused by ground loops
• Balanced and unbalanced audio output jacks

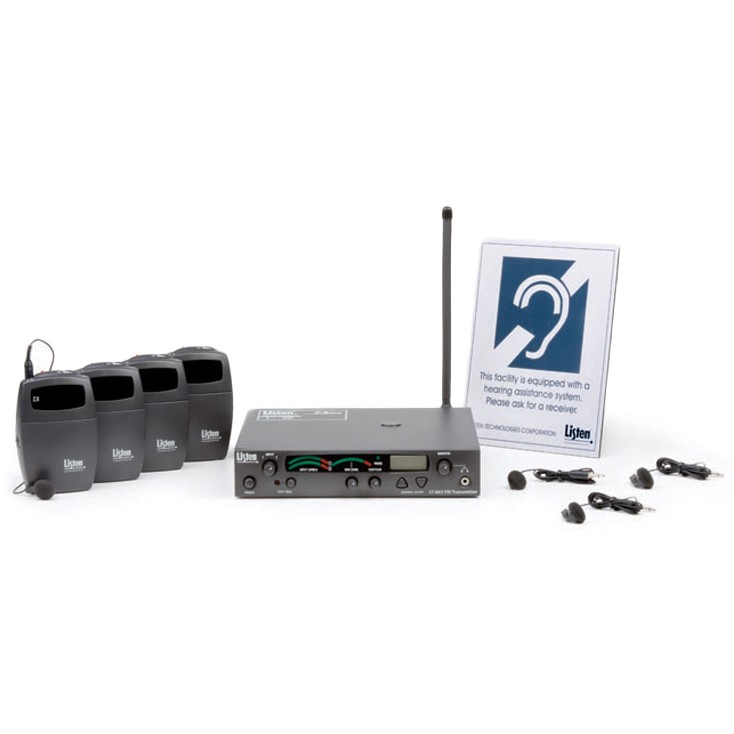

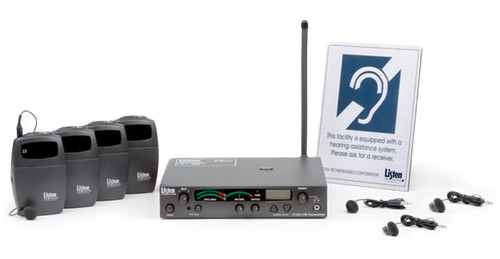

Listen Tech LP-3CV-072-01 RF Value Package:

• Economical price - backed by Listen's exceptional service and support
• Three channels - makes it simple to install, manage and use
• Limited lifetime warranty
• Reliable clear sound quality - 62 dB SNR
• Ensures public venues meet ADA requirements
• 30-day no obligation demonstrations available



Audio-Technica Pro 49QL Gooseneck Microphones:

• Wide-range condenser element with low-mass diaphragm for superior performance
• Self-contained electronics eliminate need for external power modules
• Flat, smooth frequency response
• Quiet, fixed-placement long-life gooseneck
• Plugs into any standard XLRF-type surface or cable connector
• Overall length of 16.46" (418 mm)
• Also available in a 13.07" (332 mm)-long version as PRO 49Q

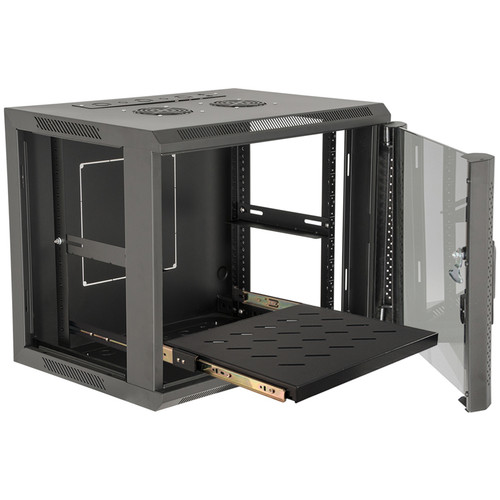

Gator GRW1009509 9U 17" Deep Fixed Wall Rack with Glass Door:

• Fixed Back Single Section Welded Frame Construction
• Comes with Removable 18 Gauge Mounting Panel for Easy Wall Installation
• 18 Gauge Removable Side Panels with Spring Latch
• 18 Gauge SPCC Cold Rolled Steel Top and Bottom
• Fan ready perforated top
• 11 gauge drilled and tapped front and rear rack rails
• Rack U number printed on the rack rails
• 10/32 rack screws
• 1/2", 5/8", 3/4", 1"1 and 1 1/2" cable entry knockouts on top and bottom
• 5/8" knockout design to be used for VHF/UHF antenna
• 10" x 10" rear access knockout for cable entry
• Front door features toughened glass with vented sides and spring loaded push and turn locking system

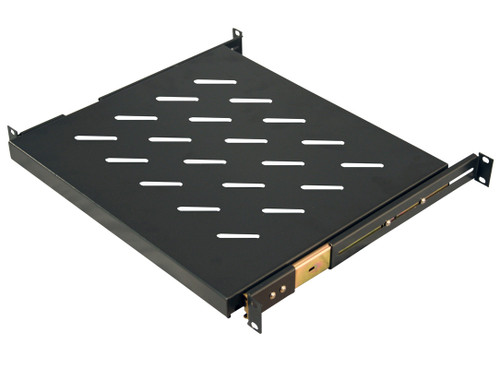

Gator GRW-SHELF1SLD 1U, 13.8" Deep Sliding Shelf:

• Cold Rolled 16 Gauge Steel Construction
• Black Powder Coated Finish
• Rear Flanged for Rigidity
• Elongated Vent Holes for Optimum Air Circulation
• Sliding vented 1U shelf

• (2) JBL CBT 70J-1 Line Array Column Loudspeakers
• (1) Yamaha MG12XU 12-Channel Mixing Console
• (1) Crown XTi 2002 2-Channel Stereo Power Amplifier
• (1) Juice Goose JG 8LED Power Distribution Center with LED Lights
• (1) Audio-Technica ATW-3141b Wireless Handheld System
• (1) Audio-Technica ATW-3131b Wireless Lavalier System
• (1) Listen Tech LP-3CV-072-01 RF Value Package
• (2) Audio-Technica Pro 49QL Gooseneck Microphones
• (1) Gator GRW1009509 9U 17" Deep Fixed Wall Rack with Glass Door
• (1) GRW-SHELF1SLD 1U, 13.8" Deep Sliding Shelf
• (2) CBI MLN-100 100ft XLR Cables for Podium Microphones
• (4) CBI MLN-6 6 ft XLR Cables
