Auditorium Sound System with 6 SD5 SuperDispersion Ceiling Speaker Arrays and RMA350BT 350W Rack Mount Bluetooth Mixer Amplifier (Discontinued Components)

By Pure Resonance Audio

Auditorium Sound System with 6 SD5 SuperDispersion Ceiling Speaker Arrays and RMA350BT 350W Rack Mount Bluetooth Mixer Amplifier (Discontinued Components)

Name: Auditorium Sound System with 6 SD5 SuperDispersion Ceiling Speaker Arrays and RMA350BT 350W Rack Mount Bluetooth Mixer Amplifier (Discontinued Components)
Brand: Pure Resonance Audio
SKU: ADSS-6SD5RMA350BT
Price: 4539.99 USD
Availability: OutOfStock

Write a Review

Part #:

ADSS-6SD5RMA350BT

Model #:

ADSS-6SD5RMA350BT

Current Stock:

Availability: Some products in this system are discontinued. In-stock alternatives may be available.

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

This auditorium sound system is simple to use and features 6 crystal clear SD5 SuperDispersion® drop tile ceiling speaker arrays, perfect for public speakers or musical performances with its unrivaled speech reproduction and voice intelligibility and a high-performance 350W RMA350BT Bluetooth rack mount mixer amplifier.

Description

Inside the Design

This affordable auditorium sound system is easy to install, simple to use and features six SD5 SuperDispersion® omnidirectional drop tile ceiling speaker arrays, each built with a proprietary high-frequency tweeter that creates better audio coverage and response than most loudspeaker systems. The RMA350BT 5-channel mixer amplifier provides 350 watts of high-performance Class H power for long working hours, due to its forced air-cooling fan, and includes a remote control to easily manage volume levels, play/pause, skip and more all from a distance. This system also includes a Denon Professional DN-300Z all-in-one Bluetooth media player that plays USB, SD or CDs and has a built-in AM/FM tuner you can count on when the whole room is listening! The Shure SLXD124/85 combo wireless microphone system can be set up quickly and used confidently thanks to its innovative setup features such as auto frequency scan with transmitter setup, exceptional wireless clarity, and legendary Shure microphones. With the crystal clear SD5 speakers, easy to use mixer amplifier, and 3 microphone options, this system provides exceptional sound for public address or musical performance applications.

Sound System Features:

360° x 180° coverage with crystal clear speech reproduction and voice intelligibility
SD5s have powerful proprietary tweeter design with a lower crossover point that improves vocal performance
Easily connect your Bluetooth device to the RMA350BT's high-performance mixer amplifier
Manage volume levels, play/pause, skip and more, all from a distance with included remote control
DN-300Z Multimedia audio player makes switching formats quick and easily accessible to any user
SLXD124/85 provides quick and secure setup time with auto frequency scan and transmitter setup, wireless clarity, and legendary Shure microphones
MX412 mic includes preamplifier and shock mount that provides over 20 dB isolation from surface vibration noise

About the System Components

This Pro Acoustics designed sound system includes six Pure Resonance Audio SD5 SuperDispersion® drop tile ceiling speaker arrays, a Pure Resonance Audio RMA350BT 5-channel 350W commercial rack mount mixer amplifier, a Denon Professional DN-300Z media player with bluetooth, CD, SD, USB, and AM/FM tuner, an Atlas Sound AP-S15LA 15LA power conditioner and distribution unit with pull out light, two Shure SLXD124/85 combo wireless microphone systems with handheld and lavalier mics, a Shure MX412 microflex gooseneck microphone, an Atlas Sound 607-15 7 RU stand alone basic wall cabinet, a Gator GRW-DRW3 3U rack drawer, a 25 pack of Gator GRW-SCRW025 rack screws, a 3ft CBI MLN-3-PREP to female XLR patch cable, a 30ft CBI MLN-30-PREP to female XLR patch cable, and 500' of West Penn 225 16/2 non-plenum speaker wire.

Not sure if this is the right Auditorium Sound System solution for you?

Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

Pure Resonance Audio SD5 SuperDispersion® 70V Omnidirectional Drop Tile Ceiling Speaker Arrays:

Omnidirectional coverage pattern provides 360° x 180° of consistent frequency response
Powerful proprietary tweeter design with a lower crossover point improves vocal performance
Wave guided housing directs sound where it needs to go
Ported enclosure is acoustically optimized and tuned with bass-reflex for turbulence reduction
Low profile metal back-box comes with built-in safety suspension points
Thumbwheel selectable 8-ohm nominal and 70-volt inputs are compatible with any commercial or stereo amplifier
Takes just minutes to install, simply remove one ceiling tile and drop the SD5 into any standard drop-ceiling grid
Safety carabiner kit includes braided steel cables and infinitely adjustable SpeedClamp™ fasteners for secure and fast easy-install

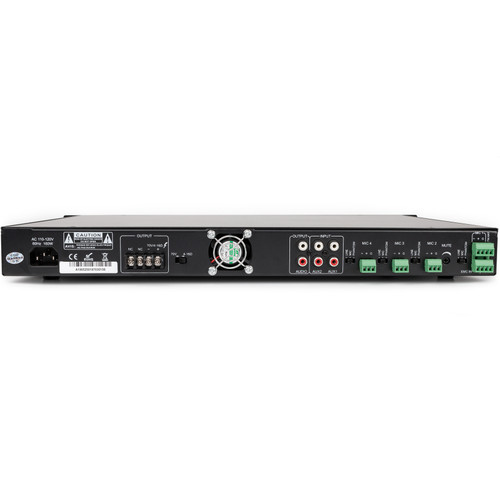

Pure Resonance Audio RMA350BT 350W Rack Mount Bluetooth Mixer Amplifier:

1 RU chassis, high-efficiency, and lightweight design
MP3 media player supports USB, SD, Bluetooth and FM tuner
Supports 1 emergency channel input, 2 AUX inputs, and 4 MIC inputs
Bass and treble tone controls
Level, overload, and protection light indicators provide short circuit, overload, and overheating protection
Advanced high-performance power amplifier circuit
4-16Ω/70V speaker output
350W rated output power
Forced air-cooling fan from front to back, starts up in a uniform speed rotation and then speeds up when the temperature increases to meet long working hours
Remote control

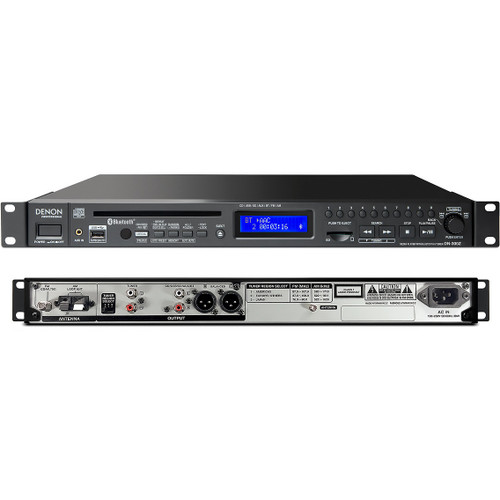

Denon Professional DN-300Z Media Player with Bluetooth:

Super-fast loading, slot-in CD player
Supports removable USB thumb and HDDs, SD/SDHC cards
Wireless audio playback from tablets and smartphones via Bluetooth
Selectable Power-On-Play mode automatically plays USB, SD or CD tracks when powered up — simply turn it on
Up to 100 foot (30m) wireless Bluetooth range
Plays CD-DA, MP3, WAV, and AAC files
3.5mm (1/8-inch) input for audio playback of any audio device with a 3.5mm output
AM/FM Tuner w/ dedicated audio out for multi-room use
RCA and balanced XLR audio outputs
10-key direct track access
Random, repeat, and single play playback modes
Remembers up to 8 Bluetooth devices for simple switching of wireless audio sources
Folder only and All play modes
Lockable front-panel keeps program material from being interrupted

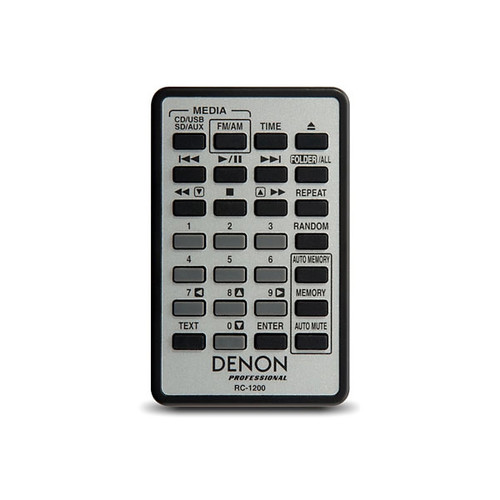

IR controllable with included, compact remote
1RU chassis with removable rack ears
Detachable IEC-weighted AC inlet
100-220v switching power supply

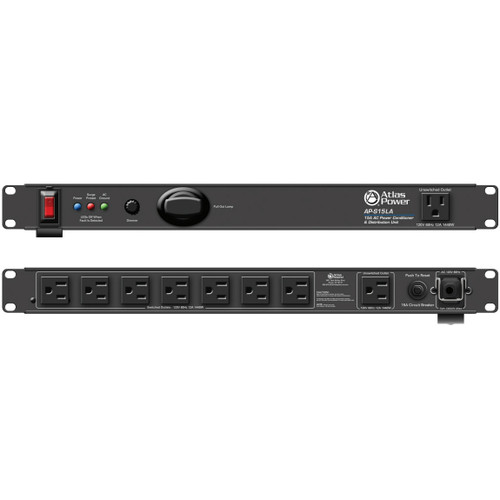

Atlas Sound AP-S15LA 15LA Power Conditioner and Distribution Unit:

Front panel dimmable pull out lamp
Circuit breaker protection @ 15A
9 total outlets
7 rear panel switched outlets
1 rear panel unswitched outlet
1 front panel unswitched convenience outlet
Removable IEC power cord with a retainer bracket
RFI noise filtering to reduce radio frequency interference
EMI filtering to reduce electromagnetic interference
Spike suppression up to 6000V
Power LED indicator
Surge protect LED indicator
AC ground LED indicator
Power switch cover

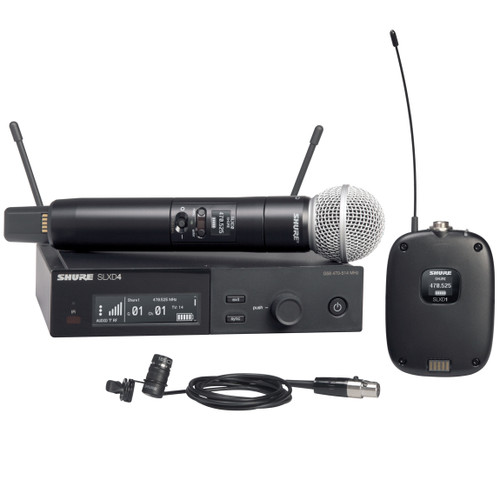

Shure SLXD124/85 Combo Wireless Handheld and Lavalier Microphone Systems:

Extended 20 Hz to 20 kHz frequency range (microphone dependent)
120 dB dynamic range
Digital predictive switching diversity
44 MHz tuning bandwidth (region dependent)
32 available channels per frequency band (region dependent)
Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
Easy pairing of transmitters and receivers over IR scan and sync
Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery

Shure MX412 Microflex Gooseneck Microphone:

Wide dynamic range and frequency response
Interchangeable cartridges
Balanced, transformerless output for increased immunity to electromagnetic hum and RF interference over long cable runs
Shock mount provides over 20 dB isolation from surface vibration noise
Locking flange mount for permanently securing microphone
Snap-fit foam windscreen

Atlas Sound 607-15 7 RU Stand Alone Basic Wall Cabinet:

10-32 pan head screws for panel mounting
16-gauge CRS all-welded construction with 11-gauge CRS fixed tapped mounting rails
Completely assembled
Convenient pre-punched back panel for wall mounting (back panel is not removable)
Locking front door
Vents on each side

System Includes

(6) Pure Resonance Audio SD5 SuperDispersion® Drop Tile Ceiling Speaker Arrays

(6) Safety Cable Kits: (24) Steel Safety Cables, (24) Carabiners and (24) Fastlinks

(1) Pure Resonance Audio RMA350BT 350W Commercial Bluetooth Mixer Amplifier

(1) IR Remote Control
(1) Power Cord

(1) Denon Professional DN-300Z Media Player with Bluetooth
(1) Atlas Sound AP-S15LA 15LA Power Conditioner and Distribution Unit
(2) Shure SLXD124/85 Combo Wireless Handheld and Lavalier Microphone Systems
(1) Shure MX412 Microflex Gooseneck Microphone
(1) Atlas Sound 607-15 7 RU Stand Alone Basic Wall Cabinet
(1) Gator GRW-DRW3 Rackworks Rack Drawer
(1) Gator GRW-SCRW025 Rack Screws (25 Pack)
(2) CBI MLN-3-PREP to Female XLR Patch Cables - 3ft
(1) CBI MLN-30-PREP to Female XLR Patch Cable - 30ft

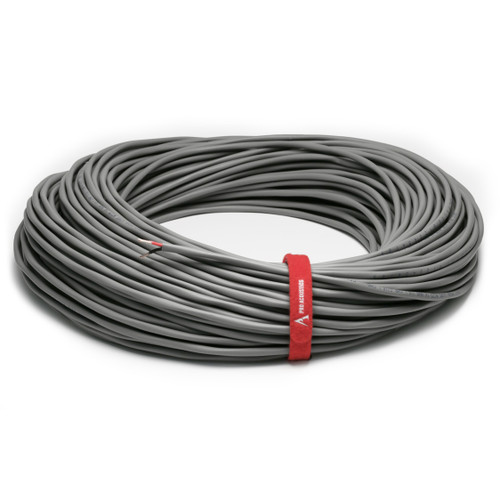

(500') West Penn 225 16/2 Non-Plenum Speaker Wire
