Audix AP41 L10 Wireless Microphone System with R41 True Diversity Receiver and B60 Bodypack Transmitter with ADX10 Lavalier Microphone

Description

Audix AP41 L10 Wireless Microphone System

The ADX10 is a lightweight, low profile mic designed for lavalier applications such as speech, presentation, and theatrical production. With the ability to accurately capture and reproduce vocals from a comfortable distance of 4-8 inches, the ADX10 has a natural sound with exceptional response that is resistant to feedback and easy to use.

Features

R41 Diversity Receiver:

• 32 MHz Wide spectrum receiver
• 106 Pre-coordinated frequencies for quick, easy and reliable set up
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to the receiver via infrared beam

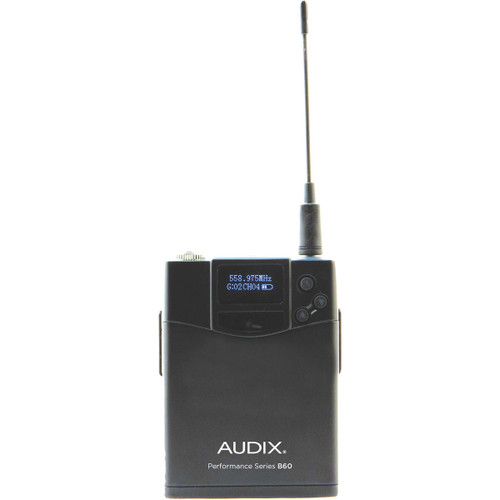

B60 L10 Bodypack Transmitter:

• 64 MHz Wide spectrum transmitter with ADX10 lavalier
• Durable metal housing
• 14 Hour run time - AA batteries

Specifications

R41 Receiver
Frequency Range	Band A: 522 MHz - 554 MHz Band B: 554 MHz - 586 MHz
Bandwidth	32 MHz
Compatible Systems	16 Compatible system operation
Switchable Frequencies	106 Preset frequencies
Frequency Response	45 Hz - 18 kHz
Compander System	2:1
Pilot Tone	32 kHz
Receiving System	Single tuner, diversity
Signal-to-Noise Ratio	105 dB at 30 kHz deviation (A-weighted)
Total Harmonic Distortion	≤.7% (33 kHz deviation at 1 kHz)
Sensitivity	5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)
Audio Output (AF=0)	Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
Output Connectors	1/4", XLR
Audio Level Adjust	Balanced: -12 to +9 dBu Line: -24 to +4 dBu (adjustable in 3 dB-steps)
Range	300', (91 M)
Power Supply	100 - 240V / 50 - 60 Hz, 12V DC, 1A
Dimensions (H x W x D)	1.7" (44 mm) x 8" (205 mm) x 8.1" (206 mm)
Net Weight	1.92 lbs (870 g)
B60 Bodypack Transmitter
RF Power Output	10 mW, 40 mW
Frequency Bandwidth	64 MHz
Gain Controls	0 db, -6 dB, -12 dB
Input Connector	3 pin mini-XLR
Batteries Included	2 AA 1.5 V
Current Consumption	110 mA typical
Battery Life	14 hours
Input Impedance	Mic: 10 kohm, Line: 1 Mohm
Max Sound Pressure Level	128 dB to140 dB (depending on mic)
Dimensions (L x W x D)	3.5" (90 mm) x 2.6" (67 mm) x 0.67" (17 mm)
Net Weight (Without Battery)	3.0 oz (85 g)

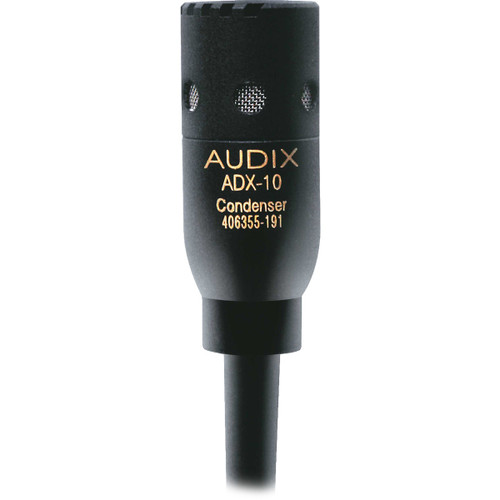

ADX10 Lavalier Mic
Transducer Type	Pre-Polarized Condenser
Frequency Response	50 Hz - 18 kHz
Polar Pattern	Cardioid
Output Impedance	800 ohms
Sensitivity	5 mV / Pa @ 1k
Equivalent Noise Level
Signal to Noise Ratio	>65 dB
Maximum SPL	≥120 dB
Power Requirements	9-52 V phantom
Connector	Shielded 3’ terminating to a miniature 3 pin Female XLR connector
Polarity	Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
Length	0.98" (25 mm)
Weight	21 g (0.74 oz)

DOCUMENTS

In The Box

• (1) R41 32 MHz Diversity Receiver
• (1) B60 Bodypack Transmitter with ADX10 Lavalier Microphone
• (2) Antennas
• (1) Audio Cable
• (1) Clip
• (2) AA Batteries
• (1) Carrying Case
• (1) Power Supply
• (1) User Guide
• (1) Rackmount Hardware
