Audix AP41 BP Wireless Microphone System with R41 Diversity Receiver and B60 Bodypack Transmitter
Usually arrives in 5-9 business days.
The AP41 OM2 wireless microphone system is a professional, value-driven handheld wireless solution designed for small to mid-size PA systems. Featuring the renowned OM2 dynamic capsule, it delivers a full-bodied sound with a slight bass proximity effect and tailored mid-range response, making it ideal for vocals in live sound environments. Known for its excellent isolation and outstanding feedback rejection, the OM2 performs reliably even in demanding stage conditions while handling high sound pressure levels without distortion.

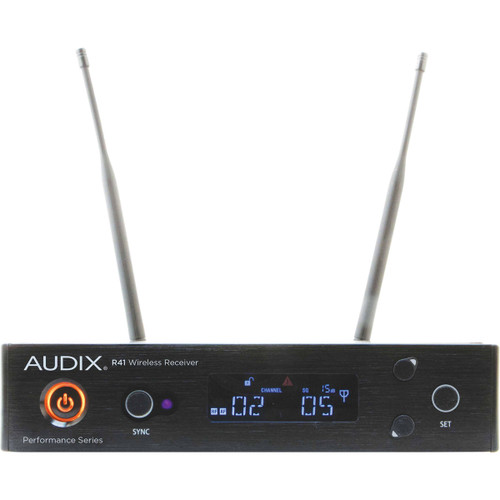

At the core of the system is the R41 diversity receiver, offering a 32 MHz wide spectrum and 106 pre-coordinated frequencies for fast, reliable setup. One-touch auto scan and infrared sync ensure quick, interference-free channel selection and seamless transmitter pairing. The H60 handheld transmitter features a durable metal housing and the OM2 capsule, operating on a 64 MHz wide spectrum for stable wireless performance.
Designed for long-lasting use, the system provides up to 14 hours of operation on standard AA batteries. With rugged construction, intuitive setup features, and professional-grade audio performance, the Audix AP41 OM2 is a dependable wireless solution for live performers, presenters, and venues that demand clarity and reliability.
R41 Diversity Receiver:
H60 OM2 Handheld Microphone:
| R41 Receiver | |
|---|---|
| Frequency Range | Band A (522 MHz - 554 MHz) or Band B (554 MHz - 586) |
| Bandwidth | 32 MHz |
| Compatible Systems | 16 Compatible System Operation |
| Switchable Frequencies | 106 Preset frequencies |
| Frequency Response | 45 Hz - 18 kHz |
| Compander System | 2:1 |
| Pilot Tone | 32 kHz |
| Receiving System | Single tuner, diversity |
| Signal-to-Noise Ratio | 105 dB at 30 kHz deviation (A-weighted) |
| Total Harmonic Distortion | ≤.7% (33 kHz deviation at 1 kHz) |
| Sensitivity | 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted) |
| Audio Output (AF=0) | Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load |
| Output Connectors | 1/4", XLR |
| Audio Level Adjust | Balanced: -12 to +9 dBu Line: -24 to +4 dBu (adjustable in 3 dB-steps) |
| Range | 300' (91 M) |
| Power Supply | 100 - 240V / 50 - 60 Hz, 12V DC, 1A |
| Dimensions (H x W x D) | 1.73" (44 mm) x 8" (205 mm) x 8.1" (206 mm) |
| Net Weight | 1.92 lbs (870 g) |
| H60 Transmitter | |
| RF Power Output | 10 mW, 40 mW |
| Frequency Bandwidth | 64 MHz |
| Gain Controls | 0 dB, -6 dB, -12 dB |
| Batteries Included | 2 AA 1.5 V |
| Current Consumption | 110 mA typical |
| Battery Life | 14 hours |
| Max Sound Pressure Level | >140 dB (depending on capsule) |
| Dimensions (L x Dia) | 10.43" (265 mm) x 2.1" (53 mm) |
| Net Weight | 0.68 lbs (312 g) |
