Audix AP41 OM5 Wireless Microphone System with R41 Diversity Receiver and H60/OM5 Handheld Transmitter

Description

Audix AP41 OM5 Wireless Microphone System

A high-performance handheld diversity wireless system featuring the legendary Audix OM5.

Since the mid-90s, the OM5 has become one of the most respected handheld dynamic mics in the world. Used on stage, in studios, and for broadcast applications, the OM5 has a reputation for clarity, resistance to feedback and ability to handle SPLs in excess of 144 dB without distortion.

Features

R41 Diversity Receiver:

• 32 MHz Wide spectrum receiver
• 106 Pre-coordinated frequencies for quick, easy and reliable set up
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to receiver via infrared beam

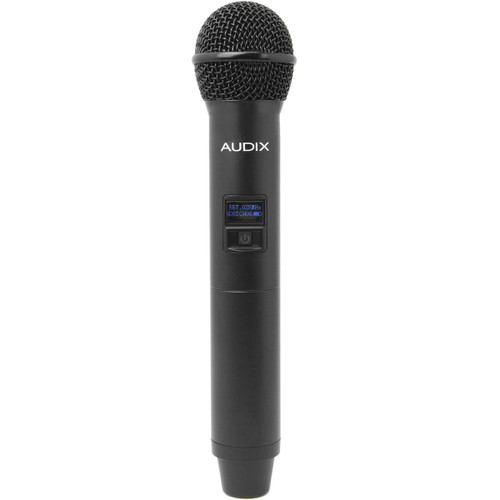

H60 OM5 Handheld Transmitter:

• 64 MHz wide spectrum transmitter with OM5 dynamic capsule
• Durable metal housing
• 14 Hour run time - AA batteries

Specifications

R41 Diversity Receiver
Frequency Range	522 MHz – 554 MHz / 554 MHz - 586 MHz
Bandwidth	32 MHz
Power Supply	100 - 240V / 50 - 60 Hz, 12V DC, 1A
Dimensions (H x W x D)	1.73" (44 mm) x 8.07" (205 mm) x 8.11" (206 mm)
Weight	1.92 lbs (0.87 kg)
H60/OM5 Handheld Transmitter
RF Power Output	10 mW, 40 mW
Frequency Bandwidth	64 MHz
Batteries Included	(2) AA 1.5 V 14hr batter life
Max Sound Pressure Level	>140 dB (depending on capsule)
Dimensions (H x Body Dia)	10.43" (265 mm) x 2.1" (53 mm)
Weight	0.69 lbs (0.31 kg)

DOCUMENTS

In The Box

• (1) R41 32 MHz Diversity Receiver
• (1) H60 Handheld Transmitter with OM5 Capsule Module
• (2) Antennas
• (1) Audio Cable
• (1) Clip
• (1) Pouch
• (2) AA Batteries
• (1) Carrying Case
• (1) Power Supply
• (1) Rackmount Hardware
• User Guide
