Audix AP42 BP Wireless Microphone System
Audix AP42 BP Wireless Microphone System with R42 2-Channel Diversity Receiver and 2 B60 Bodypack Transmitters
Audix AP42 BP Wireless Microphone System with R42 2-Channel Diversity Receiver and 2 B60 Bodypack Transmitters
By Audix Microphones

Audix AP42 BP Wireless Microphone System with R42 2-Channel Diversity Receiver and 2 B60 Bodypack Transmitters

Write a Review
Part #:
AP42BPA
Model #:
AP42 BP
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Audix AP42 BP is a value-packed diversity system featuring the versatile B60 bodypack transmitter that may be used with any lavalier, head-worn, or instrument microphone in the Audix line, as well as guitar and bass.

Description

Audix AP42 BP Wireless Microphone System (522 MHz - 554 MHz / 544 MHz - 586 MHz)

A value-packed diversity system featuring the versatile B60 bodypack transmitter. This bodypack may be used with any lavalier, head-worn, or instrument microphone in the Audix line, as well as guitar and bass.

Included are a rack mount kit and BNC cables for front mounting antennas.

Features

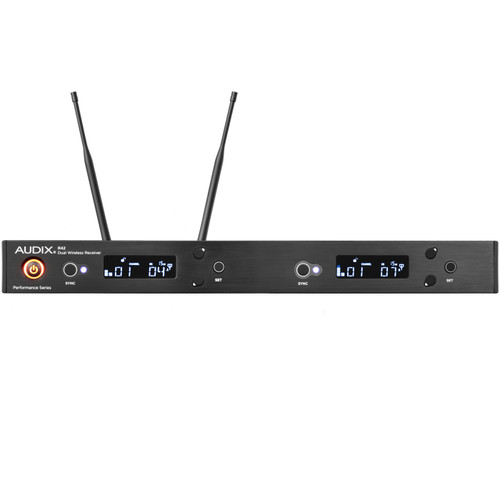

R42 Two Channel Diversity Receiver:

  • 32 MHz wide spectrum tuning receiver
  • 106 Pre-coordinated frequencies
  • One-touch auto scan searches for clear channel
  • One-touch sync links transmitter to receiver via infrared beam

B60 Bodypack Transmitter:

  • 64 MHz wide spectrum transmitter
  • Durable metal housing
  • 14 Hour run time - AA batteries

Specifications
R42 Diversity Receiver
Frequency Range 522 MHz – 554 MHz / 554 MHz - 586 MHz
Bandwidth 32 MHz
Power Supply 100 - 240V / 50 - 60 Hz, 12V DC, 1A
Dimensions (H x W x D) 1.73" (44 mm) x 15.98" (406 mm) x 8.23" (209 mm)
Weight 4.4 lbs (2 kg)
B60 Bodypack Transmitter
RF Power Output 10 mW, 40 mW
Frequency Bandwidth 64 MHz
Batteries Included (2) AA 1.5 V
14hr battery life
Max Sound Pressure Level 128 dB to140 dB (depending on mic)
Dimensions (H x W x D) 3.5" (90 mm) x 2.6" (67 mm) x 0.67" (17 mm)
Weight 0.19 lbs (0.09 kg) (without battery)

DOCUMENTS

In The Box
  • (1) R42 32 MHz Two Channel Diversity Receiver
  • (2) B60 Bodypack Transmitters
  • (2) Antennas
  • (1) Audio Cable
  • (4) AA Batteries
  • (1) Power Supply
  • (1) Rackmount Hardware
  • (2) BNC Cables
  • User Guide
