Audix AP61 OM2 L10 Wireless Microphone System Combo with R61 Diversity Receiver, H60/OM2 Handheld Transmitter and B60 Bodypack Transmitter with ADX10 Lavalier Microphone

Audix AP61 OM2 L10 Wireless Microphone System Combo with R61 Diversity Receiver, H60/OM2 Handheld Transmitter and B60 Bodypack Transmitter with ADX10 Lavalier Microphone

Name: Audix AP61 OM2 L10 Wireless Microphone System Combo with R61 Diversity Receiver, H60/OM2 Handheld Transmitter and B60 Bodypack Transmitter with ADX10 Lavalier Microphone
Brand: Audix Microphones
SKU: AUDIX-AP61OM2L10
Price: 1340 USD
Availability: InStock

Write a Review

Part #:

AP61OM2L10

Model #:

AP61 OM2 L10

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Description

Audix AP61 OM2 L10 Wireless Microphone System Combo

The Audix AP61 OM2 L10 is a Performance Series single-channel true diversity receiver and dual-transmitter bundle designed to deliver reliable long-range wireless audio for preachers, guest speakers, and announcers in houses of worship and live stage applications. It includes an R61 single-channel true diversity receiver, a B60 bodypack transmitter, an ADX10 cardioid condenser lavalier mic, and one H60 transmitter with an OM2 hypercardioid dynamic microphone capsule. With conveniences such as one-touch sync and auto scan, a high-contrast LCD, and 207 pre-coordinated frequencies, the bundle is easy to configure and efficient to operate. It ships with two antennas, two BNC antenna cables, an audio cable, four AA batteries, a power supply, and a rackmount kit.

Features

R61 True Diversity Receiver:

64 MHz Wide spectrum tuning receiver
207 Pre-coordinated frequencies for quick, easy, and reliable set up
One-touch auto scan searches for clear channel
One-touch sync links transmitter to the receiver via infrared beam
2560 tunable frequencies

H60 OM2 Handheld Transmitter:

64 MHz Wide spectrum transmitter with OM2 dynamic capsule
Durable metal housing
14 Hour run time – AA batteries

B60 L10 Bodypack Transmitter:

64 MHz Wide spectrum transmitter with ADX10 lavalier microphone
Durable metal housing
14 Hour run time – AA batteries

Specifications

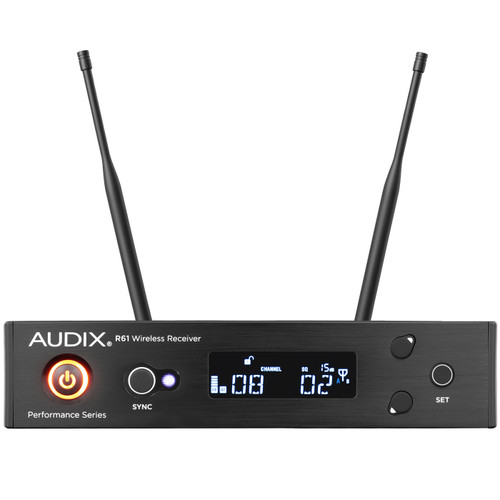

R61 True Diversity Receiver
Frequency Range	522 MHz – 586 MHz
Bandwidth	64 MHz
Power Supply	100 - 240V / 50 - 60 Hz, 12V DC, 1A
Dimensions (H x W x D)	1.73" (44 mm) x 8.07" (205 mm) x 8.11" (206 mm)
Weight	2.43 lbs (1.1 kg)
B60 Bodypack Transmitter
RF Power Output	10 mW, 40 mW
Frequency Bandwidth	64 MHz
Batteries Included	(2) AA 1.5 V 14hr batter life
Max Sound Pressure Level	128 dB to140 dB (depending on mic)
Dimensions (H x W x D)	3.5" (90 mm) x 2.6" (67 mm) x 0.67" (17 mm)
Weight	0.19 lbs (0.09 kg)
H60/OM2 Handheld Transmitter
Type	Dynamic
Polar Pattern	Hypercardioid
Capsule	VLM Type B
Frequency Response	50 Hz to 16 kHz
Battery Life	Approximately 14 hour
Dimensions (Dia x L)	2.1" (53 mm) x 10.4" (265 mm)
Weight	11 oz (312 g)
