Inside the Design
This Pure Resonance Audio small stadium sound system is ideal for little league baseball, softball, and other small outdoor athletic fields. Featuring two S10 10" IP66 weatherproof stadium speakers, an MA120BT 120W Bluetooth mixer amplifier, and a PTT1 push-to-talk paging microphone, this easy-to-use outdoor PA speaker system delivers clear vocal reproduction, wide coverage, and reliable audio performance for play-by-play announcements, paging, and music playback during sporting events.
The S10 outdoor stadium loudspeakers feature a 90° x 90° coverage pattern, rugged all-weather construction, and built-in 70V/100V multi-tap transformers for flexible speaker configuration. Each speaker is rated for 200W continuous power handling, while the MA120BT provides 120W of total amplifier output. For maximum output within the amplifier's rated capacity, each S10 can be tapped at 50W on a 70V system, creating a combined 100W speaker load and leaving 20W of unused amplifier capacity. For installations requiring at least 20% amplifier headroom, a lower tap setting or higher-powered amplifier is recommended.
With built-in Bluetooth, USB and SD media playback, and a convenient desktop push-to-talk microphone, this system makes it easy to manage music and announcements from a press box, field office, or other central location. The package also includes 500ft of 14/2 Aquaseal direct burial speaker wire for outdoor speaker connections.
Sound System Features
- Complete outdoor stadium sound system designed for little league baseball, softball fields, small stadiums, and outdoor athletic facilities
- Two IP66-rated S10 10" all-weather stadium speakers with 200W continuous power handling and 90° x 90° coverage per speaker
- Coaxial full-range speaker design delivers clear speech intelligibility and high-quality music reproduction for outdoor sporting events
- Built-in 70V/100V multi-tap transformers provide flexible speaker configuration for distributed audio applications
- Recommended maximum-output configuration of 50W per speaker at 70V for a combined 100W load on the 120W amplifier
- Heavy-duty wall-mounting brackets and M8 eyebolts included with each speaker for secure installation
- MA120BT 120W commercial mixer amplifier with built-in Bluetooth for wireless music streaming from compatible devices
- Multiple audio source options, including microphone inputs, RCA line inputs, USB and SD media playback, and FM radio
- PTT1 desktop push-to-talk paging microphone provides convenient control for play-by-play announcements, paging, and general public address applications
- Includes 500ft of 14/2 Aquaseal direct burial speaker wire for outdoor speaker connections
About the System Components

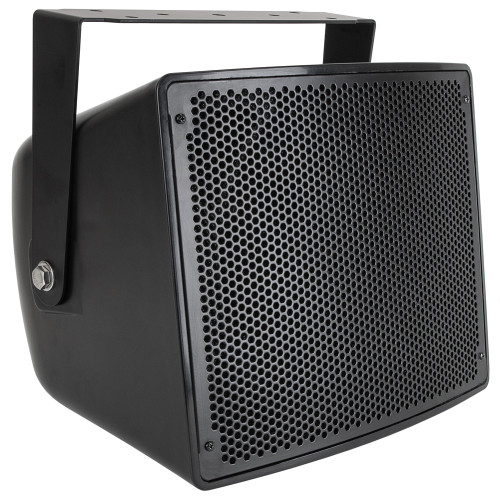

Pure Resonance Audio S10 10" All-Weather Stadium Loudspeakers
The Pure Resonance Audio S10 10" compact two-way coaxial full-range stadium loudspeaker is designed to deliver exceptional voice clarity and high-quality music reproduction in demanding outdoor environments. Featuring a wide 90° x 90° coverage pattern and 200W continuous power handling, the S10 provides reliable audio performance for baseball fields, softball fields, sports facilities, stadiums, arenas, and other indoor and outdoor commercial applications. Its rugged fiber-reinforced plastic and metal enclosure, durable metal grille, and IP66 weatherproof rating provide complete protection against dust and resistance to powerful water jets. A built-in 70V/100V multi-tap transformer with 8-ohm bypass allows flexible integration into commercial audio systems, while the included heavy-duty wall-mounting bracket and M8 eyebolt provide versatile installation options.
Pure Resonance Audio MA120BT 120W Bluetooth Commercial Mixer Amplifier
The Pure Resonance Audio MA120BT 120W commercial mixer amplifier combines reliable amplification, flexible audio connectivity, and convenient media playback in a compact, easy-to-operate design. Featuring built-in Bluetooth, USB, and SD media playback, and FM radio, this versatile mixer amplifier supports a variety of music and paging sources for commercial sound applications. Balanced and unbalanced audio inputs, microphone priority controls, and 70V, 100V, 4-ohm, 8-ohm, and 16-ohm speaker output options provide flexibility for different installation requirements. The MA120BT also includes an IR remote control for convenient operation, making it an excellent choice for managing announcements and music at small stadiums, athletic fields, and recreational facilities.

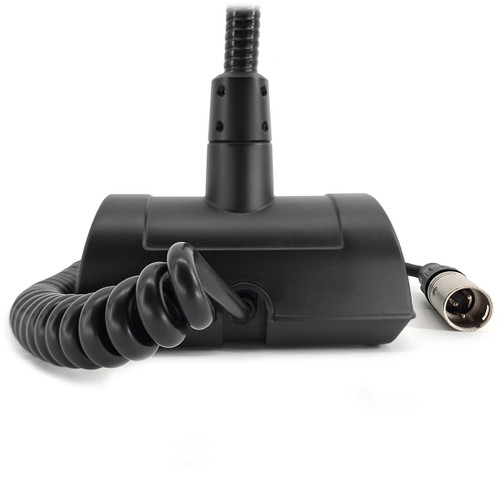

Pure Resonance Audio PTT1 Push-to-Talk Paging Microphone
The Pure Resonance Audio PTT1 desktop push-to-talk paging microphone provides clear, dependable voice communication for play-by-play announcements, paging, and general public address applications. Featuring a unidirectional dynamic gooseneck microphone, a durable die-cast zinc table stand, and both momentary push-to-talk and locking switch functions, the PTT1 offers convenient control for frequent announcements throughout sporting events. Its 5ft coiled cable and 3-pin male XLR connector provide straightforward integration with compatible mixer amplifiers, while its rugged metal construction ensures reliable performance in press boxes, field offices, and other commercial environments.
