Inside the Design
This football stadium sound system provides superior voice and music reproduction with wide 90° x 90° coverage from each weatherproof Pure Resonance Audio S10 stadium speaker. The included RMA500BT is a powerful 500W Bluetooth mixer amplifier that features an MP3 media player that supports USB, TF, Bluetooth, and FM tuner, and includes an emergency channel input. The Audio-Technica ATW-2120 handheld wireless system is extremely easy to use with automatic frequency scanning that determines and sets the best available frequency. This mic system is great for announcements or singing from the middle of the field with 300ft range. The PTT1 desktop push-to-talk microphone provides excellent performance and reliability, ideal for paging and announcements from the pressbox.
Sound System Features:
- Highly weatherproof IP66 rated outdoor football stadium speakers with 200W of continuous power handling and 90° x 90° dispersion
- Provides ideal coverage of more than 3000 sq. ft. and up to 650ft for direct speech from each speaker
- A heavy-duty wall mounting bracket is included with each speaker for a quick, safe, and secure installation
- The RMA500BT features an MP3 media player that supports USB, TF, Bluetooth and FM tuner
- In the event of an emergency, you can quickly use the emergency input to stop all other audio transmissions. This input takes priority letting any integrated emergency voice alarm system be heard loud and clear
- Wireless handheld microphone provides clear sound quality and rock-solid, dependable performance, and a range of 300'
- The PTT1 push-to-talk tabletop microphone is ideal for paging, announcements, and general public address applications
About the System Components
Pure Resonance Audio S10 10" Loudspeakers
The Pure Resonance Audio S10 10" compact two-way coaxial full-range all-weather outdoor stadium loudspeaker offers superior voice and music reproduction with a wide 90° x 90° coverage angle from a durable construction. IP66 rated for long-lasting reliability in harsh environmental conditions, this highly weatherproof speaker is dust-tight and protected against direct high-pressure water. With a fiber-reinforced plastic and metal enclosure, and a built-in 200W 70V/100V multi-tap transformer with an 8-ohm bypass, the S10 is specially engineered for installation in outdoor commercial environments with the included wall mount bracket for easy mounting.

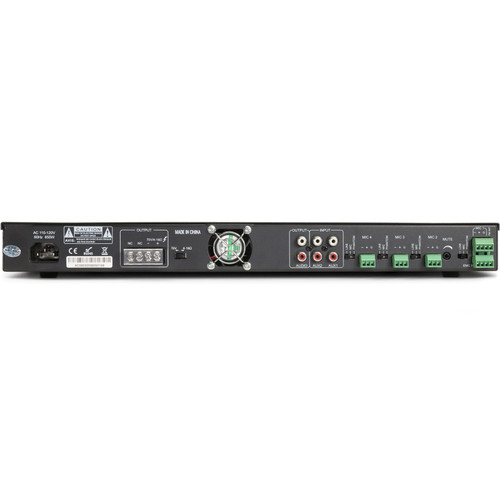

Pure Resonance Audio RMA500BT Bluetooth Mixer Amplifier
The Pure Resonance Audio RMA500BT 5-channel 4 Ohm/70V commercial rack mount mixer amplifier provides quick and easy Bluetooth connection and 500W of high-performance Class H power encased in a slim and lightweight space-saving design. With the forced air-cooling fan and emergency priority capabilities, this compact and affordable mixer amplifier perfectly accommodates any commercial business or public address application making it ideal for your office, school, restaurant, retail store, or any background music, paging, or announcement complete audio system.

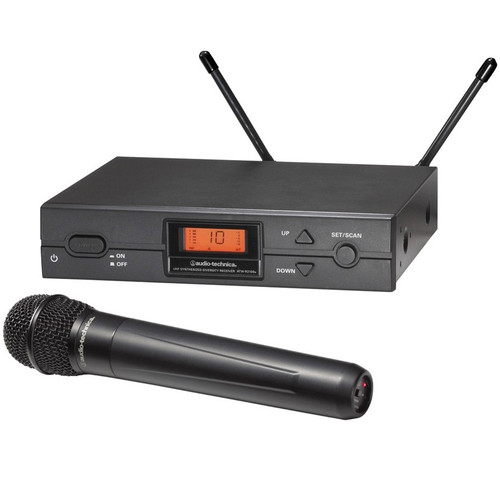

Audio-Technica ATW-2120 Wireless Handheld Microphone System
Audio-Technica's 2000 Series is a 10-channel frequency-agile UHF wireless system designed to suit a variety of applications, including MI/live performance, fixed installation, public address, A/V rental houses and places of worship. It offers all the advantages of a high-quality, professional wireless system at an extremely affordable price. Offering 10 selectable channels and True Diversity UHF wireless technology, the 2000 Series features automatic frequency scanning. At the touch of a button, this function automatically determines and sets the best available frequency.

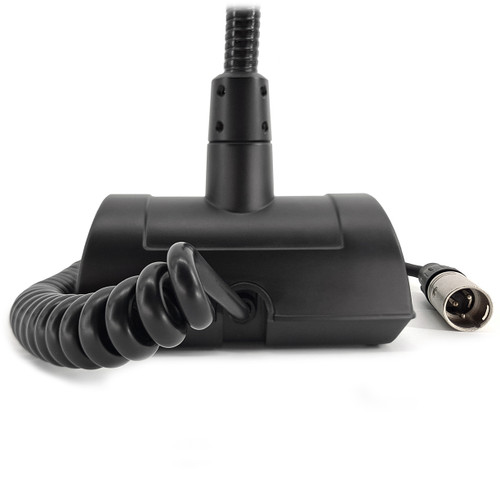

Pure Resonance Audio PTT1 Push-to-Talk Paging Microphone
The Pure Resonance Audio PTT1 desktop push-to-talk microphone provides excellent performance and reliability, ideal for paging, announcements, general public address, and communication applications. The PTT1 features a uni-directional dynamic gooseneck microphone, table-stand, dual momentary locking switch, 5-foot cable, and three-pin male XLR connector. The durable gooseneck and metal table-stand ensure the PTT1 push-to-talk paging microphone can withstand even the toughest daily use in a football stadium sound system.
