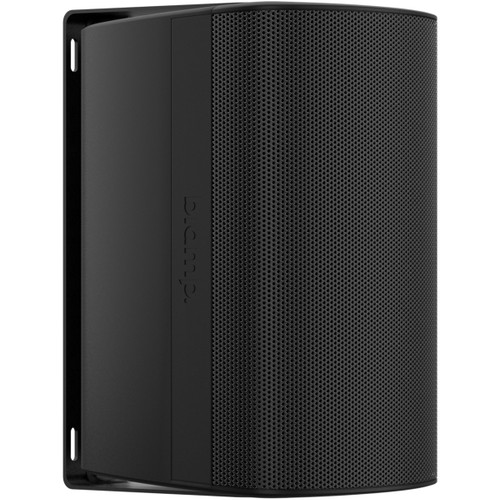

Biamp Desono DX-S5-UB-B 5" Black Indoor Outdoor Coaxial Surface Mount Loudspeakers
The Desono DX-S5-UB-B is a high-performance pair of black 5-inch surface-mount loudspeakers engineered for exceptional speech intelligibility and music reproduction. Combining high efficiency, strong output, and low distortion, the DX-S5-UB-B easily outperforms larger loudspeakers, making it an excellent solution where space is limited.
Its sleek black design blends seamlessly into modern environments while maintaining weather resistance for direct outdoor use. Ideal for a wide range of distributed audio applications, the DX-S5-UB-B shares consistent voicing with the DX ceiling loudspeakers, ensuring smooth integration in mixed system designs.

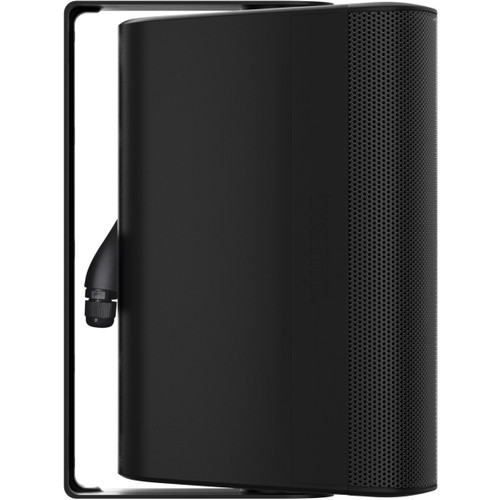

Installation is quick and versatile with Biamp's low-profile Marine Grade aluminum U-Bracket, which provides secure mounting to walls, ceilings, suspension posts, or compatible pole adapters. The included ClickPlug connector with gland nut ensures reliable weather-resistant connections, while the U-Bracket itself is theft- and tamper-resistant for added security.
Whether indoors or outdoors, the DX-S5-UB-B delivers professional-quality sound in a compact and durable package.
- Features
Features
- Zoom Certified
- High efficiency, high output, and clear intelligibility with low distortion
- Wide, uniform coverage from a 5-inch 2-way coaxial design
- Durable black finish for discreet installation in any environment
- Low-profile Marine Grade aluminum U-Bracket for flexible and secure mounting
- Weather-resistant construction for reliable indoor and outdoor use
- Consistent voicing with DX ceiling loudspeakers for system uniformity
- Integrated ClickPlug with gland nut for secure, weather-resistant connections
- Theft- and tamper-resistant mounting hardware for added protection
- ETL listed, certified to UL 1480A and CSA 62368-1, CE marked, and RoHS compliant
- 5-year warranty
- Specification
Operating Mode Single Amplified with DSP Operating Environment Indoor / Outdoor Direct Exposure Operating Range (-10 dB) 75 Hz to 20 kHz Nominal Beamwidth (H x V) 130° x 125° Transducers LF 1 x 5" (127 mm)
HF 1 x 1" (25 mm) exit compression driverAutoformer 70V: 60W, 30W, 15W, 7.5W; 100V: 60W, 30W, 15W Recommended Amplifiers Passive: 100W - 200W into 8Ω, (28V - 40V) Input Connection Lever-actuated wire clamping 4-position terminal block with pass-through Controls Wattage / low impedance selector switch Mounting Provisions U-Bracket with ClickPlug Certifications IP54 per IEC 60529, IEC 60068-2-5 (Solar Radiation),
IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2),
IEC 60068-2-60 (Chlorine)Dimensions (H x W x D) 11.03" (280 mm) x 7.09" (180 mm) x 7.28" (185 mm) Shipping Weight 26.35 lbs (11.95 kg) - Documents
Documents
- In The Box
In The Box
- (2) DX-S5-UB-B Surface Mount Speakers
- (2) U-Brackets with ClickPlug
- Drilling Template for Bracket
