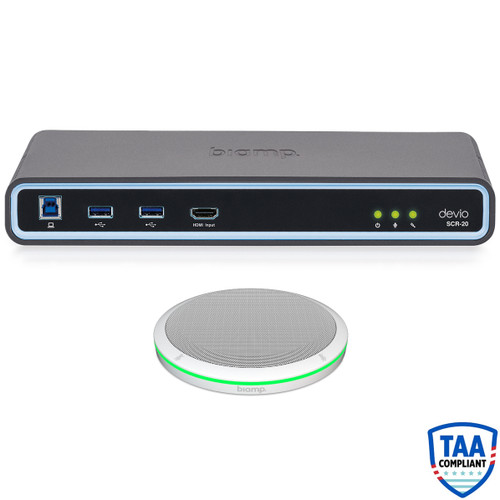

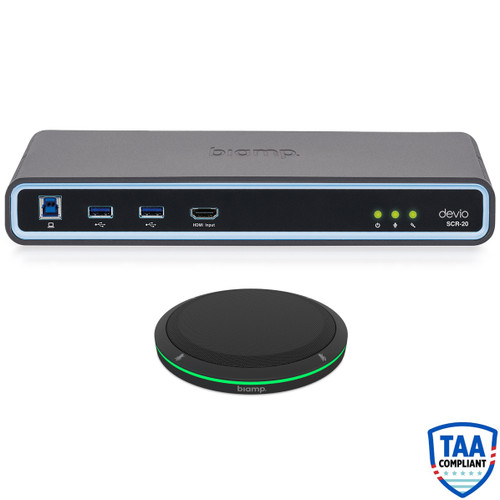

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.The Devio SCR-20 is a conferencing hub that provides users with exceptional AV experiences when using web-based conferencing systems. Intended for huddle rooms or small conference rooms, the SCR-20 uses Beamtracking™ microphones and professional grade DSP to optimize the audio quality, allowing far-end conference participants to experience the conversation naturally.
The Devio SCR-20 supports a variety of room designs for computer-based conferencing including a BYOD approach or connection via a dedicated in-room PC. Devio works in concert with PCs running a variety of web-based conferencing solutions including Microsoft Teams, Zoom, Google Meet, and many more. For ease of network and device management, Devio can be monitored and managed remotely via SNMP or with the Devio System Administration Utility (SAU) software, and firmware updates can be scheduled and deployed to multiple Devio units as needed.
All Devio SCR-20 models (Devio SCR-20C Black, Devio SCR-20C White, Devio SCR-20CX Black, Devio SCR-20CX White, Devio SCR-20T, Devio SCR-20TX Black & Devio SCR-20TX White) comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.

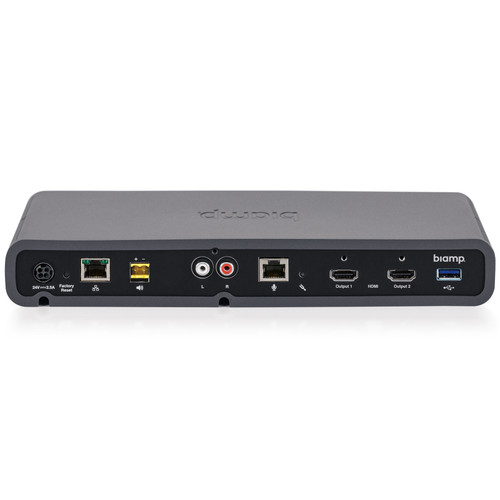

| Devio SCR-20 | |
|---|---|
| Network Connection | RJ-45 with Ethernet cable (Cat 5e and above) |
| Power | 24V DC 60W |
| Ambient Operating Temperature Range | 32-104° F (0-40° C) |
| Compliance | FCC Part 15B (USA) UL and C-UL listed (USA and Canada) CE Marked (Europe) RoHS Directive (Europe) |
| Dimensions (H x W x D) | 1.8" (46 mm) x 11.2" (284 mm) x 6.9" (175 mm) |
| Weight | 2 lbs (0.9 kg) |
| Parlé TCM-XEX Microphone | |
| Frequency Response (150 Hz - 16 kHz) | ± 3 dB |
| Microphone Technology | 16-Element Digital Array |
| Polar Pattern | Active Beamformed |
| Maximum SPL (at < 1% THD) | 109 dB |
| Dynamic Range (THD+N < 1%) | 92 dB, A-Weighted |
| Connector | RJ-45 |
| Power | Custom/Proprietary |
| Compliance | FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe) Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces |
| Dimensions (H x Dia) | 0.6" (15 mm) x 5.9" (150 mm) |
| Weight | 0.7 lbs (340 g) |
