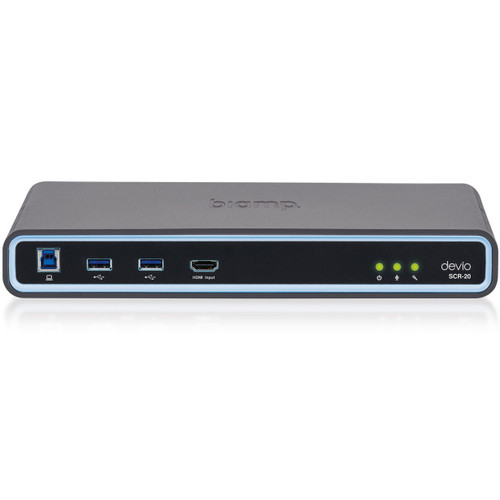

Biamp Devio SCR-20TX Web-Based Conferencing Hub with TTM-XEX Tabletop Microphone

The Devio SCR-20TX is a conferencing hub bundled with a black Parlé TTM-XEX tabletop microphone that provides users with exceptional audiovisual experiences when using web-based conferencing systems.

Intended for huddle rooms or small conference rooms, the SCR-20TX uses Beamtracking microphones and professional grade DSP to optimize the audio quality, allowing far end conference participants to experience the conversation naturally.

The Devio SCR-20TX supports a variety of room designs for computer-based conferencing including a BYOD approach or connection via a dedicated in-room PC. Devio works in concert with PCs running a variety of web-based conferencing solutions including Microsoft Teams, Zoom, Google Meet, Cisco Webex, BlueJeans and many more. For ease of network and device management, Devio can be monitored and managed remotely via SNMP or with the Devio System Administration Utility (SAU) software, and firmware updates can be scheduled and deployed to multiple Devio units as needed.

Features

Features

Works in concert with PCs running web-based conferencing solutions, including Microsoft Skype for Business/Microsoft Teams, Zoom, BlueJeans, Google Meet, and many more
Supports both Windows and Mac PCs, and uses standard audio drivers
Supports driverless, pass-through HDMI connectivity to a single in-room display, or to two monitors with USB video using DisplayLink USB graphics technology (requires installation of DisplayLink driver on laptop; supports Windows 7, 8, 8.1, and 10)
Auto Setup validates device connections, adjusts room levels, and sets speaker EQ to optimize audio quality
Can be monitored and managed remotely via SNMP or with the Devio System Administration Utility (SAU)
Firmware updates can be scheduled and deployed to multiple Devio units via the SAU
Speaker connectivity options include HDMI audio, a built-in 20 watts amplifier, or RCA line out
Includes a mounting bracket for under–the–table installation
Ships with one tabletop or ceiling Beamtracking microphone with 360-degree coverage
5-year warranty
Compliant with the US Trade Agreement Act (TAA)

Specification

Devio SCR-20
Network Connection	RJ-45 with Ethernet cable (Cat 5e and above)
Power	24V DC 60W
Ambient Operating Temperature Range	32-104° F (0-40° C)
Compliance	FCC Part 15B (USA) UL and C-UL listed (USA and Canada) CE Marked (Europe) RoHS Directive (Europe)
Dimensions (H x W x D)	1.8" (46 mm) x 11.2" (284 mm) x 6.9" (175 mm)
Weight	2 lbs (0.9 kg)
Parlé TTM-XEX Microphone
Microphone Technology	16-Element Digital Array
Frequency Response (150 Hz - 16 kHz)	± 3dB
Polar Pattern	Beamformed
Maximum SPL (at < 1% THD)	109dB
Dynamic Range (THD+N < 1%)	92dB, A-Weighted
Connector	RJ-45
Power	Custom/Proprietary
Compliance	FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe) Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
Dimensions (H x Dia)	0.6" (15 mm) x 4.3" (110 mm)
Weight	0.5 lbs (231 g)
