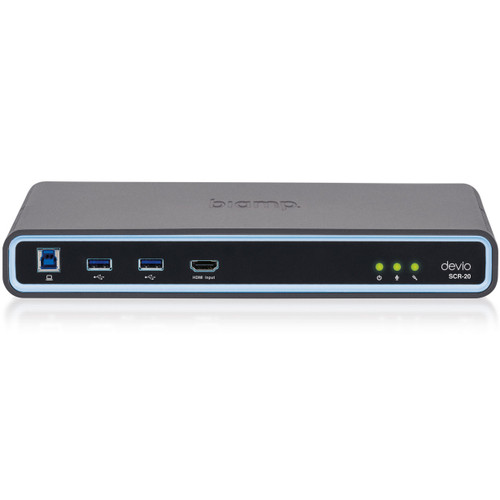

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.The Devio SCR-20TX is a conferencing hub bundled with a black Parlé TTM-XEX tabletop microphone that provides users with exceptional audiovisual experiences when using web-based conferencing systems.
Intended for huddle rooms or small conference rooms, the SCR-20TX uses Beamtracking microphones and professional grade DSP to optimize the audio quality, allowing far end conference participants to experience the conversation naturally.
The Devio SCR-20TX supports a variety of room designs for computer-based conferencing including a BYOD approach or connection via a dedicated in-room PC. Devio works in concert with PCs running a variety of web-based conferencing solutions including Microsoft Teams, Zoom, Google Meet, Cisco Webex, BlueJeans and many more. For ease of network and device management, Devio can be monitored and managed remotely via SNMP or with the Devio System Administration Utility (SAU) software, and firmware updates can be scheduled and deployed to multiple Devio units as needed.
| Devio SCR-20 | |
|---|---|
| Network Connection | RJ-45 with Ethernet cable (Cat 5e and above) |
| Power | 24V DC 60W |
| Ambient Operating Temperature Range | 32-104° F (0-40° C) |
| Compliance | FCC Part 15B (USA) UL and C-UL listed (USA and Canada) CE Marked (Europe) RoHS Directive (Europe) |
| Dimensions (H x W x D) | 1.8" (46 mm) x 11.2" (284 mm) x 6.9" (175 mm) |
| Weight | 2 lbs (0.9 kg) |
| Parlé TTM-XEX Microphone | |
| Microphone Technology | 16-Element Digital Array |
| Frequency Response (150 Hz - 16 kHz) | ± 3dB |
| Polar Pattern | Beamformed |
| Maximum SPL (at < 1% THD) | 109dB |
| Dynamic Range (THD+N < 1%) | 92dB, A-Weighted |
| Connector | RJ-45 |
| Power | Custom/Proprietary |
| Compliance | FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe) Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces |
| Dimensions (H x Dia) | 0.6" (15 mm) x 4.3" (110 mm) |
| Weight | 0.5 lbs (231 g) |
