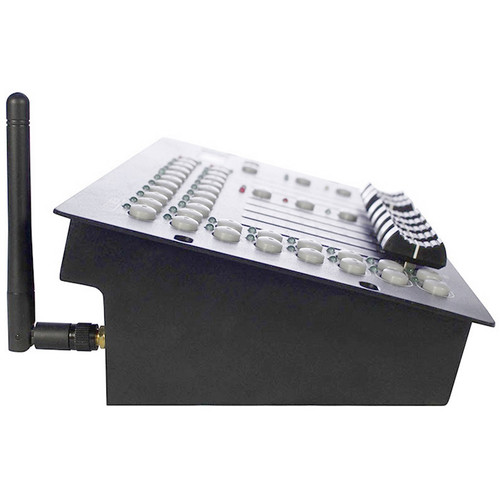

Blizzard Lighting Kontrol 5 Skywire 10-Channel 5 Fader Color Mixing DMX Controller with Built-In 2.4 GHz Wireless DMX Transmitter

Name: Blizzard Lighting Kontrol 5 Skywire 10-Channel 5 Fader Color Mixing DMX Controller with Built-In 2.4 GHz Wireless DMX Transmitter
Brand: Blizzard Lighting
SKU: BLIZZARD-123570
Price: 339.99 USD
Availability: InStock

Write a Review

Part #:

123570

Model #:

Kontrol 5 Skywire

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Blizzard Lighting Kontrol 5 Skywire is a compact wireless DMX controller for any LED fixtures with 3/4/5-channel modes. Control up to 16 fixtures composed of 10 channels each and up to 16 programmable scenes manually, automatically or with music trigger.

Description

Blizzard Kontrol 5 Skywire Wireless DMX Color-Mixing Control

The perfect compact DMX controller to compliment any LED lighting fixtures with 3/4/5-channel modes. Its 5 conveniently labeled red, green, blue, white and amber sliders make for ultra easy color-mixing control!

The Kontrol 5™ Skywire will allow you to control up to 16 fixtures composed of 10 channels each and up to 16 programmable scenes. Its sixteen chase banks can contain up to 200 steps composed of saved scenes or manual inputs in any order. Programs can be triggered by music, automatically or manually. Plus, all chases can be executed at the same time.

On the surface of the Kontrol 5™, you will find various programming tools such as 5 RGBAW/universal channel sliders, quick access fixture and scene buttons, and an LED display indicator for easier navigation of controls and menu functions.

Features

DMX512/1990 Standard
Controls 16 fixtures of up to 10 channels, 160 channels total
16 Preset scene/color banks, 8 per page
Record up to 16 chases with up to 200 scenes per chase
5 Sliders for direct control of channels
Built-in microphone for music mode
Auto mode program controlled by fade time sliders
DMX out: 3-pin XLR
LED information display
Blackout function and instant strobe with variable speed fader
USB Backup/Restore of Data

Specifications

General
Operating Voltage	9-12 VDC, .3A (from included power supply)
Max. Operating Temperature	104° F (40° C) ambient
Protocol	USITT DMX-512
DMX Channels	160
Output	3-pin XLR Female
USB Specification	1.0
Disk Format	FAT16 / FAT32 ONLY
Maximum Disk Size	4GB
Warranty	2-year limited warranty
Wireless Transmitter
Operating Band	2.4 GHz ISM
Max Operating Range	400 Meters (Line of Sight)
Frequency Groups	7
Max Transmission Power	20dBm
Dimensions (H x W x D)	2.75" (69.5 mm) x 10.2" (255 mm) x 5.6" (142 mm)
Weight	3.25 lbs (1.5 kg)
