More Views

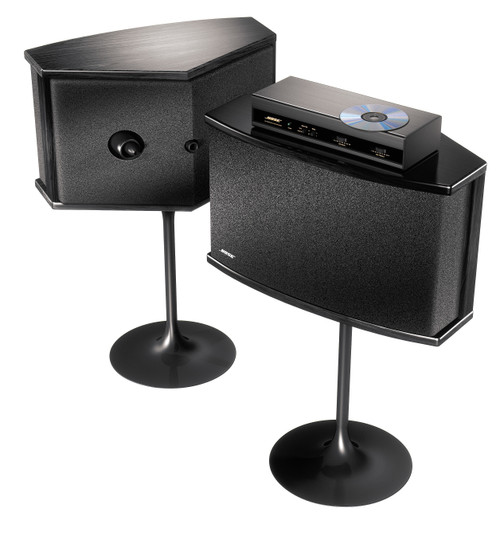

Bose 901 Direct/Reflecting Speaker System (Discontinued)

Part # 901
Model # 901

The 901 Series VI Direct/Reflecting speaker system, brings the warmth, power and excitement of a concert hall to your home. This flagship system creates the mix of direct and reflected sound you hear in a live performance.


Description

Details

Experience legendary performance from your stereo components with our best stereo speaker system. The 901® Direct/Reflecting® Series VI speaker system brings the warmth, power and excitement of a concert hall to your home. First introduced in 1968, this flagship system now represents over 350 enhancements to the acclaimed original. It recreates a mix of direct and reflected sound you hear in a live performance for a listening experience that conveys much of the emotion of live music.

This innovative Bose sound system works by reflecting most of the sound off walls and other flat surfaces, instead of aiming all the sound toward you, as many conventional stereo speakers do. Direct/Reflecting® speaker technology reproduces the natural concert hall balance of direct and reflected sound, so anything you listen to acquires lifelike realism.

The result is Stereo Everywhere® speaker performance—sound that is clear and lifelike throughout the room, rather than just one "sweet spot." With Bose 901 home stereo speakers, you'll hear balanced audio no matter where you sit or stand.

Features

Features

  • Direct/Reflecting® speaker technology blends reflected and direct sound to re-create much of a live concert's natural spaciousness.
  • Active equalizer, engineered specifically for 901 speakers, balances the output of all frequencies for natural tonal balance and clarity throughout the musical spectrum.
  • Acoustic Matrix™ enclosure dramatically reduces speaker chamber noise. Hear clear, well-defined low frequencies over the entire low-frequency spectrum.
  • Stereo Everywhere® speaker performance produces balanced stereo sound over a wide area. The result of proprietary Bose technologies, these speakers let you enjoy balanced sound throughout the listening area, unlike conventional speakers that radiate sound mostly in a single direction.
  • Helically wound aluminum voice coils designed for higher durability, greater efficiency and superior power handling.
  • Nine full-range drivers provide greater power handling than conventional speakers
  • Optional floorstanding speaker pedestals available
Specification
901 Direct/Reflecting Loudspeakers
Transducer complementNine (9) 41/ ” (11.4 cm) full-range Helical 2Voice Coil drivers in each cabinet
Energy dispersion89% by reflection, 11% by direct radiation
Enclosure14-element Acoustic Matrix enclosure with three reactive air columns
Nominal impedance8Ω (ohms)
Amplifier compatibilityAmplifiers/Receivers rated from 10 - 450 watts RMS,Rated 250 watts IEC
Recommended fusingSeries connected 3A quick-acting fuse Buss AGC-3, Littelfuse 312-003, or equivalent
CabinetOil-rubbed hardwood veneer with walnut finish, Black vinyl veneer
Wire Gauge 18 (0.75 mm2)Wire Length 30 ft (9 m) maximum
Wire Gauge 16 (1.5 mm2)Wire Length 45 ft (14 m) maximum
Wire Gauge 14 (2.0 mm2)Wire Length 70 ft (21 m) maximum
Dimensions (W x H x D)21” (53.3 cm) x 125/” (32 cm) x 13” (33.0 cm)
Weight35 lb. (16 kg) per enclosure
901 Active Equalizer
Input Impedance47 k ohms (47 kΩ)
Output Impedance1 k ohm
Usable dynamic range106 dB @ 35 Hz
Noise (A-weighted)Greater than 90 dB below 1 volt
DistortionLess than 0.09% THD at 1 kHz, 1 V input
Compensation controlsMid-Bass, ±6 dB @ 225 Hz
Compensation controlsMid-Treble, ±6 dB @ 3 kHz
Bass Switch– 6 dB @ 35 Hz
Power Requirements120V ~ 50/60Hz, 3.5W
Power Requirements220-240V ~ 50/60Hz 3.5W
Power Requirements100V ~ 50/60Hz 3.5W
CabinetBlack anodized aluminum
Dimensions (W x H x D)13” (33 cm) x 23/ ” (7.0 cm) x 5” (12.7 cm)
Weight3.4 lb (1.5 kg)
In the Box

In the Box

  • (2) 901 Speakers
  • (2) Equalizer cables
  • (1) 901 Active Equalizer
