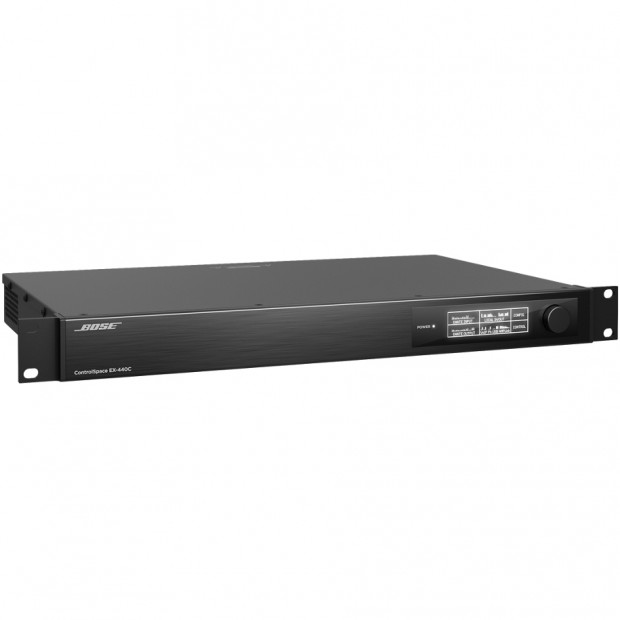

Bose Professional ControlSpace EX-440C Conferencing Signal Processor

Bose Professional ControlSpace EX-440C Conferencing Signal Processor

Name: Bose Professional ControlSpace EX-440C Conferencing Signal Processor
Brand: Bose Professional
SKU: BOSE-834315-1110
Price: 2599 USD
Availability: InStock

Write a Review

Part #:

834315-1110

Model #:

EX-440C

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The ControlSpace EX-440C conferencing signal processor, designed for microphone integration and audio processing for small-to-medium standalone meeting rooms. Includes four mic/line analog inputs, four analog outputs, onboard VoIP and PSTN, USB, Bose AmpLink output, eight-channel acoustic echo cancelling (AEC), and 16 x 16 Dante connectivity.

Description

With an open-architecture, all-in-one design, the ControlSpace EX-440C conferencing signal processor facilitates high-quality microphone integration and audio processing for small to medium standalone meeting rooms. Various inputs and outputs allow for flexible configuration: four mic/line analog inputs, four analog outputs, onboard VoIP and PSTN, USB, Bose AmpLink output, eight-channel acoustic echo canceling (AEC), and 16 x 16 Dante® connectivity. ControlSpace Designer software simplifies the setup process with drag-and-drop programming, making configuration quick and easy.

Applications:

Small/Medium Conference Rooms
Courtrooms
Distance Learning

Features

All-in-one design supports simultaneous VoIP, PSTN, and USB soft codecs in a single, 1RU model
8-channel advanced AEC with multiple references, routable to both analog and Dante inputs
Adaptable noise cancellation with non-linear processing and comfort noise on each AEC channel enhances clarity
Single-line VoIP supports all popular systems and includes an internal web interface for IT personnel to configure VoIP parameters without design file access or integrator involvement
PSTN (RJ-11) connection for worldwide POTS/analog telephone systems and includes compliance certification for most countries
USB connection facilitates easy integration with all soft codecs
Dante audio networking supports 16 x 16 audio channels for connection to other Dante-enabled products, including native Dante-integrated microphones and amplifiers
Bose AmpLink port provides 4 channels of uncompressed, low-latency digital audio to AmpLink-equipped Bose amplifiers
Front-panel interface features a large OLED display and rotary encoder for setting network parameters and monitoring channel activity
GPI and Serial for external connections, such as fire alarm triggers and interfacing with control systems

Specifications

Signal Processor	32-bit fixed/floating-point DSP 456 MHz/ARM Cortex-A8 600 MHz
Frequency Response	20 Hz to 20 kHz (+0.3 dB/-0.1 dB)
Dynamic Range	> 115 dB A-weighted 20 Hz – 20 kHz, analogy input to analog output
Input Channels	4 balanced, mic/line level
Output Channels	4 balanced, line level
