Bose Professional FreeSpace 3 Subwoofer Satellite Flush Mount System (Discontinued - Limited Stock)

Description

Bose FreeSpace 3 Flush Mount Business Music System

The Bose® FreeSpace® 3 subwoofer/satellite systems are high-performance, extended-range loudspeaker systems designed for small to medium-sized installed applications requiring high fidelity and extended bandwidth reproduction of voice and music. Surface and flush components can be mixed and matched to provide greater flexibility to suit a wide range of applications. FreeSpace® 3 systems feature a wide coverage pattern and frequency response down to 40 Hz.

Features

• Subwoofer/satellite system that delivers high fidelity and extended bandwidth reproduction of voice and music for a wide range of installed applications, including retail, restaurant and hospitality operations
• Modular design supports the flexibility for use of 2 or 4 satellites per Acoustimass bass module, and parallel connection of bass modules
• Mix and match surface-mount and flush-mount components to work with different room decors and layouts for a variety of applications
• Flush-mount components are plenum rated when used with the optional plenum cover
• Selectable 70/100V or low impedance with transformer tap adjustment on Acoustimass bass module
• Can be configured for stereo or mono operation

Specifications

System Performance
Frequency Response (+/-3 dB)	50 Hz - 16 kHz
Frequency Range (-10 dB)	40 Hz - 20 kHz
Recommended High-Pass Filter	40 Hz high-pass filter
Loudspeaker EQ	Recommended
Overload Protection	PTC
Long-Term Power Handling	70/100 V: 200 W (800 W peak) Low impedance: 100 W (400 W peak)
Sensitivity (SPL / 1 W @ 1 m)	82 dB SPL
Maximum SPL @ 1 m	93 dB (99 dB SPL peak in a 45,000 ft³ room, with RT60 of 1 second, +/- 3 dB)
Nominal Impedance	6 Ω per channel
Transformer Taps (70/100V)	25W, 50W, 100W, 200W
Transducers
Satellites Driver Compliment	2.5" (64 mm) full-range driver (per satellite)
Acoustimass Module Driver Compliment	5.25" (133 mm) dual voice coil low frequency driver
Satellites
Frequency Response (+/-3 dB)	210 Hz - 16 kHz
Frequency Range (-10 dB)	170 Hz - 20 kHz
Nominal Dispersion	170° conical
Loudspeaker EQ	Recommended
Long-Term Power Handling	12W (48W peak)
Sensitivity (SPL / 1 W @ 1 m)	84 dB SPL
Maximum SPL @ 1 m	Pink noise: 95 dB SPL (101 dB SPL peak) IEC noise: 92 dB SPL (108 dB SPL peak)
Nominal Impedance	6 Ω
Enclosure	PC/ABS
Grille	Expanded metal grille
Connectors	2-position terminal block
Suspension / Mounting	Integral quick-install mounting features included. Tab for seismic chain or safety cable
Ceiling Thickness (Maximum)	1.5" (38 mm)
Satellite Net Weight (ea)	1.9 lbs (0.9 kg)
Acoustimass
Enclosure	PC/ABS
Connectors	Multi-position screw-type barrier
Suspension / Mounting	Integral quick-install mounting features. Three points at rear of housing for pendant mounting
Ceiling Thickness (Maximum)	1.8" (48 mm)
Acoustimass Net Weight	14 lbs (6.4 kg)
Physical
Environmental	Indoor use only
Shipping Weight	40 lbs (18.14 kg)

DOCUMENTS

System Includes

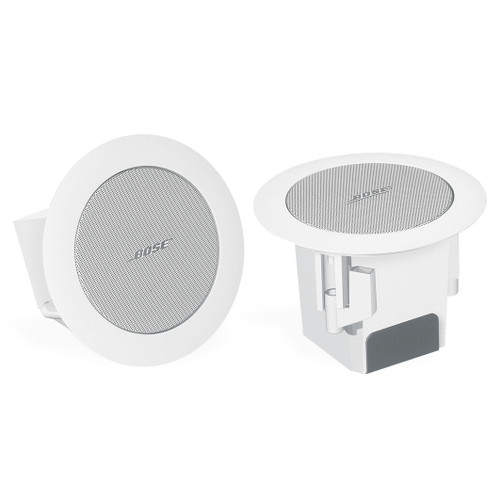

• (4) Bose FreeSpace 3 Flush Mount Satellite Speakers

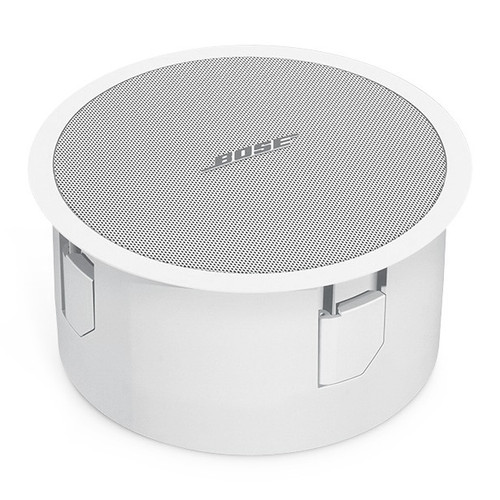

• (1) Bose FreeSpace 3 Series II Flush Mount Acoustimass Module
