Bose Professional FreeSpace DS 40F In-Ceiling Loudspeaker 8 Ohm 70/100 Volt Multi-Tap Transformer 40W (160W Peak) - White (Discontinued)
Bose Professional FreeSpace DS 40F In-Ceiling Loudspeaker 8 Ohm 70/100 Volt Multi-Tap Transformer 40W (160W Peak) - White (Discontinued)
Bose Professional FreeSpace DS 40F In-Ceiling Loudspeaker 8 Ohm 70/100 Volt Multi-Tap Transformer 40W (160W Peak) - White (Discontinued)
Bose Professional FreeSpace DS 40F In-Ceiling Loudspeaker 8 Ohm 70/100 Volt Multi-Tap Transformer 40W (160W Peak) - White (Discontinued)
By Bose Professional

Bose Professional FreeSpace DS 40F In-Ceiling Loudspeaker 8 Ohm 70/100 Volt Multi-Tap Transformer 40W (160W Peak) - White (Discontinued)

Write a Review
Part #:
321278-0231
Model #:
DS 40F
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

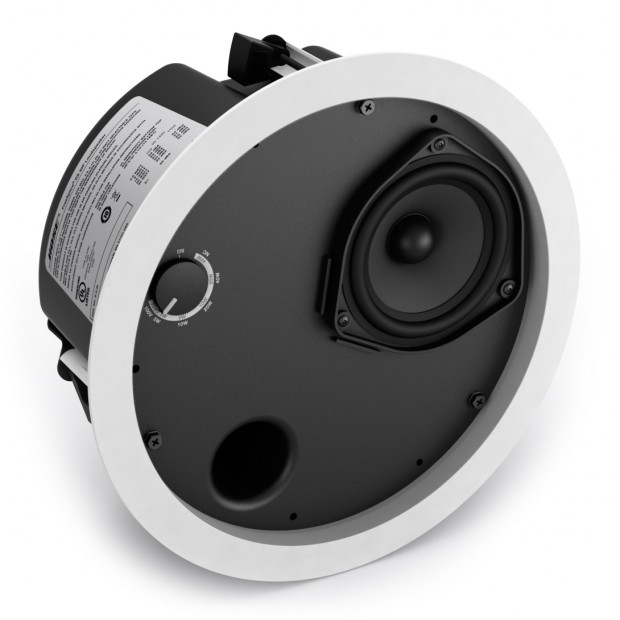

The Bose® FreeSpace DS 40F is the most versatile member of the DS loudspeaker family. It is a high-performance, full-range, flush-mount loudspeaker designed for foreground and background music and speech reproduction in a wide range of installed applications.

Description

Bose FreeSpace DS 40F In-Ceiling Loudspeaker

The Bose® FreeSpace DS 40F is the most versatile member of the DS loudspeaker family. It is a high-performance, full-range, flush-mount loudspeaker designed for foreground and background music and speech reproduction in a wide range of installed applications. The DS 40F features high output and 125° conical pattern with a frequency range down to 70 Hz.

Bose FreeSpace background/foreground loudspeakers are designed for a wide range of commercial audio applications, including retail shops, hotels, shopping malls, restaurants, conference rooms, bars and health clubs.

Features
  • Full-range loudspeaker with a single 4.5" (114 mm) driver in a ported enclosure to deliver a 125° conical coverage pattern and clear, intelligible music and speech reproduction for flush-ceiling or pendant-mount applications
  • Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap setting from underneath the loudspeaker grille
  • Shortcan design allows installation in shallower ceilings with minimum depth of 6.4" (163 mm)
  • Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40 and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality
  • Supported by a suite of accessories, including ceiling-mount bracket, adjustable tile bridge, pendant-mount kit and square grille

Specifications
System Performance
Frequency Response (+/-3 dB) 80 Hz - 17 kHz
Frequency Range (-10 dB) 70 Hz - 19 kHz
Nominal Dispersion 125° conical
Recommended High-Pass Filter 70 Hz high-pass filter
Loudspeaker EQ Recommended
Overload Protection PTC/Resistor
Long-Term Power Handling 40W (160W peak)
Sensitivity (SPL / 1 W @ 1 m) 87 dB SPL
Maximum SPL @ 1 m 103 dB SPL (109 dB SPL peak)
Nominal Impedance 8Ω (transformer bypassed)
Transformer Taps (70/100V) 70V: 2.5W, 5W, 10W, 20W, 40W
100V: 5W, 10W, 20W, 40W
Transducers
Driver Compliment 4.5" (114 mm) full-range driver
Physical
Enclosure Polypropylene (front baffle), powder-coated steel (rear enclosure)
Grille Powder-coated steel grille
Environmental Indoor use only
Connectors Three-terminal barrier strip
Optional accessory available for use when ceramic connector and thermalfuse are required
Wire gauge: 18 AWG (0.8 mm) to 14 AWG (2.0 mm)
Suspension / Mounting (3) integrated quick-install mounting arms
(3) mounting points at the rear of the enclosure for use with optional accessory pendant mount kit
Safety cable attachment: .35" (8.9 mm) diameter hole on junction box
Ceiling Thickness (Maximum) 2.5" (64 mm)
Dimensions (Enclosure Only) Outer flange diameter: 11.8" (300 mm)
Depth: 6.0" (153 mm)
Ceiling hole diameter: 10.5" (267 mm)
Weight 8.3 lbs (3.7 kg) with transformer
Shipping Weight 11 lbs (5 kg)
