Bose Restaurant Multi-Zone Sound System for High-Quality Background/Foreground Music

This Bose restaurant and hospitality 3-zone sound system delivers high-quality background or foreground music with wide even coverage ideal for restaurants, hospitality venues such as hotel bars and dining areas, sports bars, microbreweries and more. The small and aesthetically pleasing Bose RoomMatch Utility speakers are available in black or white to match any decor and the included U-brackets allow you to mount the speakers and subwoofer on the wall or ceiling. The MZ-223 offers versatile multi-zone audio routing, mixing, and segregation of several audio sources simultaneously. If paging is desired you can easily add a microphone into the amplifier. Volume sliders, routing switches/buttons, EQ knobs, and mute buttons for the microphones make the MZ-223 simple and fast to operate and set up.

Bose RoomMatch Utility RMU105 5.25" Ultra-Compact Foreground/Fill Loudspeaker

The Bose RoomMatch Utility RMU105 ultra-compact foreground/fill loudspeaker is intended for use in high-quality background/ foreground music and zone-fill applications that require excellent audio, minimal physical size, and high design aesthetics. The design features a single Bose® EMB2 compression driver to provide mid/high frequency voicing similar to that of RoomMatch full-range array modules and all RoomMatch Utility models. A single 5.25-inch woofer provides vocal-range output, and a 100° x 100° high-frequency horn provides consistent coverage with either vertical or horizontal mounting.

Bose MB210 10" Compact Subwoofer

Bose Professional MB210 compact subwoofers are designed for background/foreground music and small sound reinforcement systems that require low-frequency extension down to 37 Hz. The MB210 subwoofer features two (2) 10-inch high-excursion woofers, derived from the award-winning Bose Professional F1 portable, powered subwoofer, in a compact, Baltic-birch plywood enclosure optimized for fixed-installation applications. Featuring outstanding performance to size ratio, the MB210 is designed to complement Bose Professional FreeSpace®, Panaray®, and RMU loudspeaker models with additional bass impact.

Bose PowerShare PS604A Adaptable Power Amplifier with AmpLink

The Bose PowerShare PS604A adaptable power amplifier delivers 600 watts for fixed-install applications. Through patented technology, total amplifier power is shared across all output channels, allowing installers the freedom to utilize power where needed. With support for both low- and high-impedance loads up to 100V, PowerShare amplifiers adapt to a wide range of applications. Onboard configurable loudspeaker processing and direct access to zone controllers eliminate the need for an additional signal processor in many installations, while outstanding audio performance and reliability are assured with patented technologies inherited from the field-proven PowerMatch® line. With the inclusion of AmpLink, up to 24 digital audio channels can be sent to the amp from a Bose DSP via a shielded CAT 5 cable. This unique set of features and technologies makes PowerShare one of the most versatile high-performance amplifiers available.

Tascam MZ-223 Industrial Grade Multi-Channel Multi-Zone Mixer

The Tascam MZ-223 is a powerful multi-channel, multi-zone mixer housed in a compact 2U design, The MZ-223 offers versatile multi-zone audio routing, mixing, and segregation of several audio sources simultaneously. Source content can include music, spoken word (microphone), phonograph, and more and are easily controlled via familiar sliders and assignment controls on the front panel. Designed for easy integration in virtually any system, the MZ-223 is ideal for small format install applications such as moderate sized hotels, restaurants, meeting rooms, schools, or any situation that demands independently routed audio.

Not sure if this is the right Restaurant Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Bose RoomMatch Utility RMU105 5.25" Ultra-Compact Foreground/Fill Loudspeakers:

• Award-winning RoomMatch sound – now in smaller, 2-way, point-source designs for high-level foreground music, under-balcony, zone-fill, and vocal-range floor monitor applications
• Bose EMB2 compression driver – for lower distortion and improved vocal clarity compared to conventional foreground/fill models; also provides consistent mid/high sonic character compared to that of RoomMatch full-range and other RoomMatch Utility models
• Ultra-compact design – allows use for high-quality background/foreground music and zone-fill applications that require excellent audio, minimal physical size, and high design aesthetics
• 100° x 100° constant-directivity high-frequency horn – gives wide, even coverage, allowing vertical or horizontal mounting with no change in coverage pattern.
• 1 x Bose LF5 5.25-inch woofer – with 1.5-inch long-excursion voice coil extends response to 90 Hz for lowest vocal range
• 100 Hz – 16 kHz frequency response and 118 dB maximum peak SPL - deliver the performance required for most demanding applications in an ultra-compact enclosure design
• Flexible mounting with included U-bracket – rear enclosure panel also includes 2 x M6 threaded inserts with 3-inch (75 mm) spacing to accept third-party accessory mounting brackets

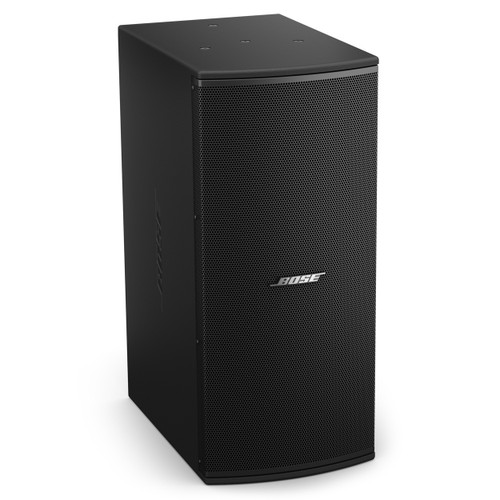

Bose MB210 10" Compact Subwoofer:

• 2 x 10" high-excursion woofers – for high-output bass in a compact enclosure – Transducers derived from award-winning Bose F1 portable, powered subwoofer
• 500 W long-term power handling – for high sound output and reliability
• Low-frequency extension down to 37 Hz
• 124 dB maximum continuous SPL, 130 dB peak SPL
• Baltic Birch plywood enclosure – with compact size for installations
• Scuff-resistant polyurethane paint – available in black or white
• U-bracket included – for easy mounting to walls or ceilings

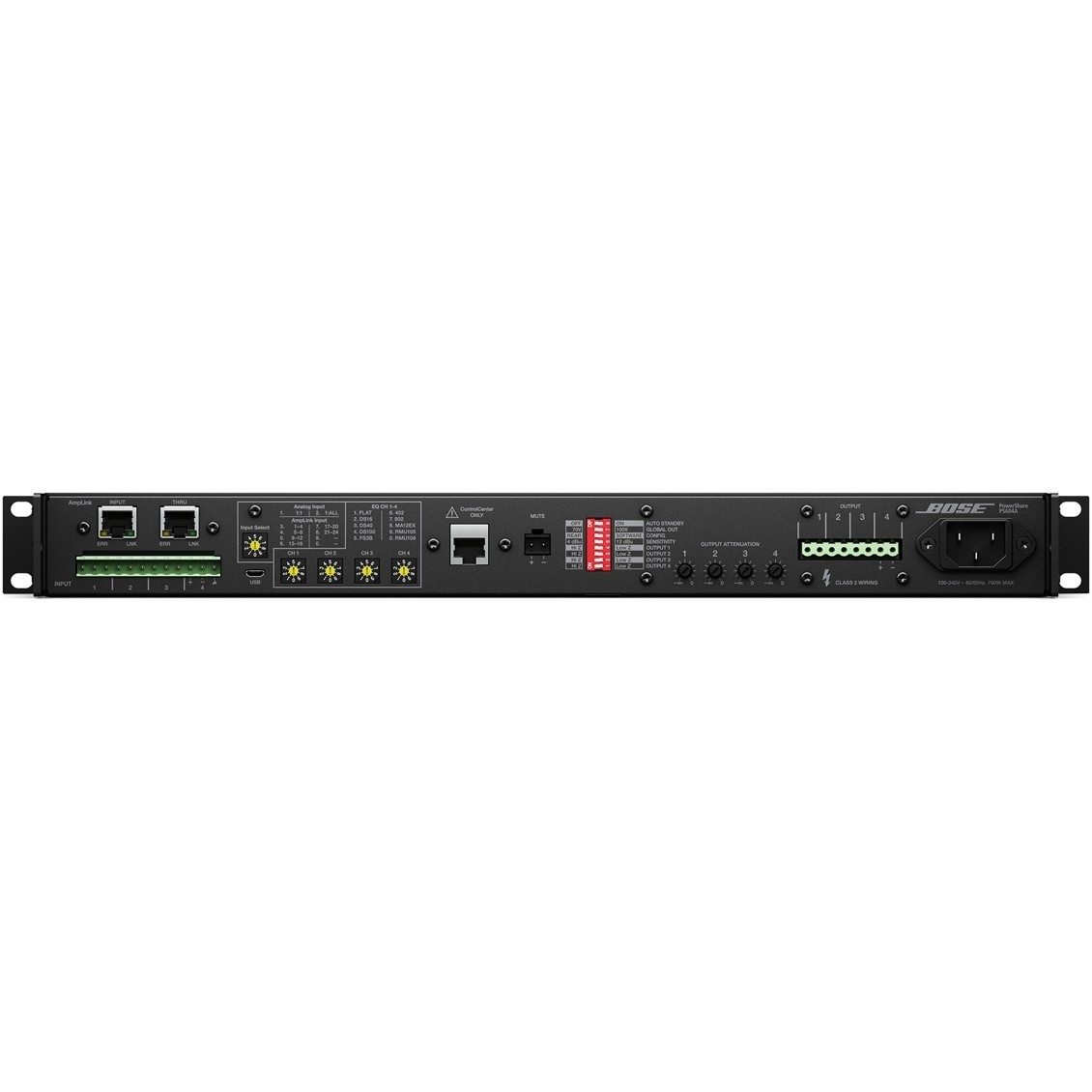

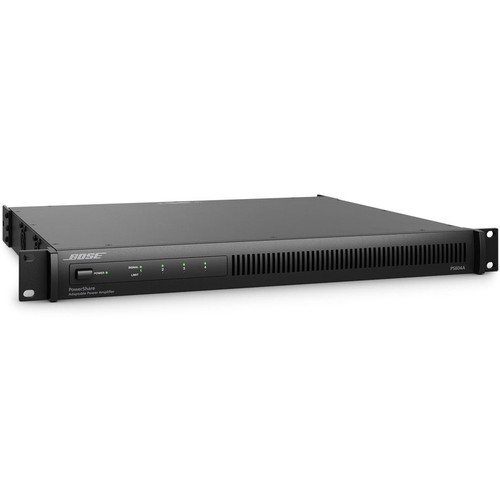

Bose PowerShare PS604A Adaptable Power Amplifier with AmpLink:

• PowerShare Technology – Patented PowerShare technology allows the total 600 watts of power to be shared asymmetrically across all outputs, as each output is capable of delivering full power. Instead of selecting amplifier power based on the needs of the largest zone, installers now have the freedom to use total amplifier power in the application. This enables more flexibility during the initial design, or later on-site when making unplanned changes that take advantage of surplus power
• Load-Independent Outputs – Each channel can be configured for low-impedance (4-8 Ω) or high-impedance (70/100V) applications without bridging, use of jumpers, or software settings.
• DFL™ System – The Dual Feedback Loop system, inherited from the field-proven Bose PowerMatch® amplifier line, improves performance and reliability through continuous monitoring and control of both the current and voltage delivered to each output load. This combination provides improved linearity and lower distortion while protecting loudspeakers
• Integrated Loudspeaker Processing with Optional PowerShare Editor Configuration – For applications requiring additional signal processing the PowerShare Editor Software offers real-time selection and control of Bose loudspeaker EQs, 9-band PEQs, matrix mixing, crossover, delay, and mute/output polarity through a USB connection. For basic setups without a PC, rear-panel settings allow installers to recall Bose loudspeaker equalization and protection per output channel. These features eliminate the need for an external signal processor in many applications
• AmpLink – Transports up to 24 uncompressed, near zero latency, digital audio channels between Bose DSPs and the PowerShare PS604A via shielded CAT 5 cable. The amp also supports a THRU path for daisy-chaining up to 8 other Bose AmpLink amplifiers, at a distance of up to 10 m between products. Any combination of AmpLink amplifiers can be daisy-chained
• ControlCenter Zone Controller Accessories – Bose ControlCenter CC-1 zone controllers can be directly attached for remote adjustment of amplifier outputs, further extending stand-alone amplifier applications
• Auto-Standby – Designed to save power consumption when not in use. PowerShare amplifiers can be configured to automatically enter standby mode when the audio signal falls below a set threshold, then wake when audio returns

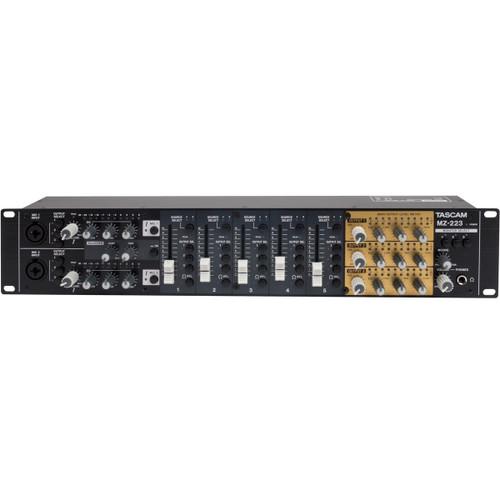

Tascam MZ-223 Industrial Grade Multi-Channel Multi-Zone Mixer:

• Easy operation and routing via familiar volume sliders, toggle switches/buttons, and knobs
• Three independent zone outputs with stereo XLR balanced and unbalanced RCA-type connectors per channel
• Five separate input channels, each with two sets of stereo RCA-type inputs
• Two additional mic-compatible XLR inputs on the front panel
• All audio can be mixed or segregated per channel and routed to the three separate zones/outputs
• “Talkover” function automatically lowers other source content while microphones are in use
• Independent three-band EQ per output channel and per microphone input
• Compact 2U rack mount design

• (4) Bose RoomMatch Utility RMU105 5.25" Ultra-Compact Foreground/Fill Loudspeakers
• (4) U-Brackets
• (1) Bose MB210 10" Compact Subwoofer
• (1) U-Bracket
• (1) Bose PowerShare PS604A Adaptable Power Amplifier with AmpLink
• (1) Tascam MZ-223 Industrial Grade Multi-Channel Multi-Zone Mixer
• (3) CBI MLN-3-PREP-F Bare Wire to Female XLR Cables - 3ft
• (500') West Penn 227 12/2 Audio Speaker Wire
