Four Zone Distributed Background Music and Paging Restaurant Sound System
This commercial multi-zone 70-volt distributed sound system is designed for background music and paging announcements for up to four areas or zones of a restaurant and bar establishment, up to 8,000 sq. ft. The multi-zone mixer has several audio and microphone inputs enabling the user to choose different audio sources and volumes for the different areas as well as paging to any combination of zones. This sound system also has a priority structure built in, so that if an emergency message needs to be broadcast across all zones, this can take priority over all currently active sound sources or paging.
Below is an example of how this custom multizone sound system can be set up but can be adjusted to meet your specific needs:
| Zone 1: |
Main Dining
Six (6) Electro-Voice EVID PC6.2 6.5" In-Ceiling Speakers
|
| Zone 2: |
Private Dining Areas or Bathrooms
Two (2) Electro-Voice EVID PC6.2 6.5" In-Ceiling Speakers
|
| Zone 3: |
Bar Area
Four (4) Electro-Voice EVID-S8.2T 8" Surface Mount Speakers
|
| Zone 4: |
Outdoor/Patio Area
Four (4) Electro-Voice EVID-S5.2T 5" Surface Mount Speakers
|
The TOA MA-725F matrix multi-zone mixer amplifier is designed to address the demand for a simpler and more cost-effective, mid-level background music and paging system with high power and multiple zones. At its core, the MA-725F-AM is a 6-input matrix mixer: 4 of its inputs are configured for BGM or other line-level sources, while two balanced inputs are designated for priority sources, such as paging mics or message players. The only controls any user needs to access are on the front panel, source select buttons and four output level (zone) controls. All other controls are placed on the rear panel to prevent unauthorized tampering.

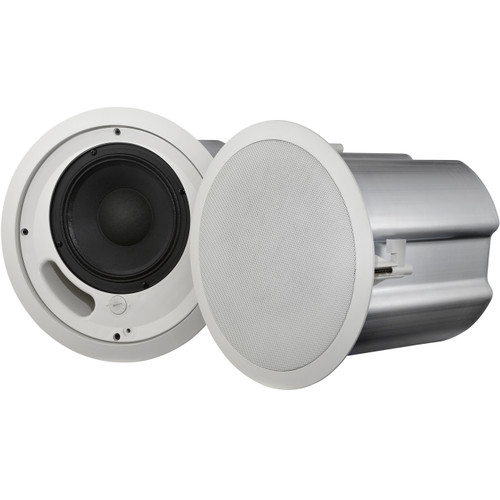

The EVID PC6.2 speaker system from Electro-Voice is a complete high performance 2-way ceiling speaker package ideal for background and foreground music, voice evacuation, paging, and sound reinforcement applications and provide a unique combination of high acoustic output, superb coverage control, high power handling and wide dispersion, to cover virtually any size listening area.
The EVID-S8.2T and EVID-S5.2T feature weather-resistant enclosures, excellent wide coverage, outstanding performance and include a unique and innovative mounting system already assembled and making every installation quick, simple, and reliable. The mounting system allows for 90 degrees of rotation horizontally, and 45 degrees of rotation vertically, and can be easily installed on walls and ceilings.

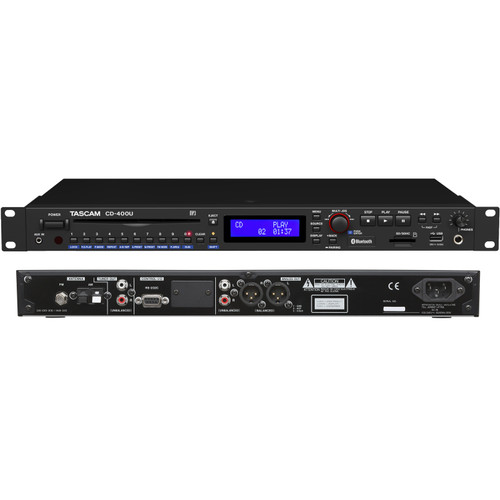

Ideal for a variety of installations, the Tascam CD-400U delivers the latest wireless and solid state technology content playback by offering CD, Bluetooth wireless, SD, USB, and AM/FM tuner capability for fast and easy playback of professional quality audio. Recording from the CD or AM/FM source to SD or USB media is also possible. The CD-400U has been designed for full-proof and automatic operation with the inclusion of a "panel lock" function which disables the panel buttons, and an automatic playback function which starts playback upon power up.
The TOA PM-660U paging microphone is an elegantly styled, compact desk microphone with a convenient push-to-talk button. Its smooth, natural response provides high-quality voice reproduction and excellent articulation to enhance the overall performance of your system.
The TOA WP-700-AM is a wall remote control switch/volume panel designed for the MA-725F-AM amplifier which can remote select input source and adjust volume levels through a CAT-5 cable. All assignments and setups can be done by dip switches on its rear panel without a laptop or a PC.

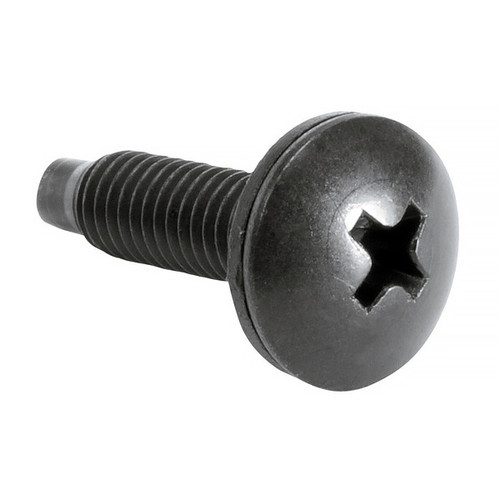

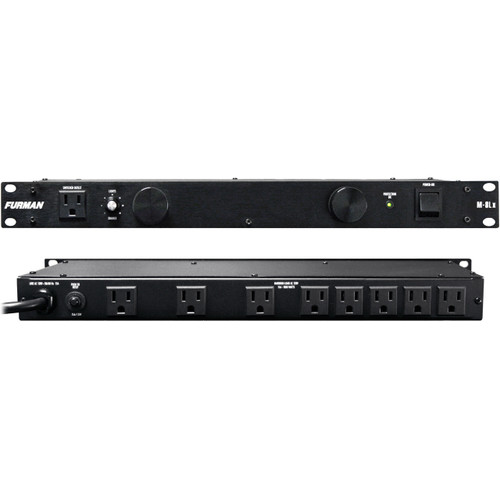

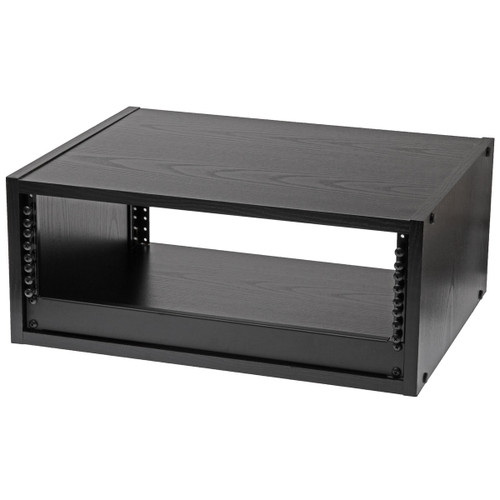

This complete multi-zone sound system also comes with a power conditioner to protect your sound system, an equipment rack with screws and speaker wire for installation. This sound system fits a wide range of applications that require multi-zone paging and/or background music and can be easily customized by our talented audio engineers. Contact us today to get started (888) 256-4112.
