Bose RoomMatch RMS215 Subwoofer Module Loudspeaker (Discontinued)

Part # 330034-0110

Model # RMS215

The Bose® RoomMatch® RMS215 Subwoofer Module Loudspeaker is designed primarily to extend the low-frequency response of Bose RoomMatch® arrays to 40 Hz. It features dual Bose LF15 15-inch high-excursion woofers, with a proprietary port design that minimizes distortion and improves perceived transient impact.

Availability:

No Longer Available
See other Bose Line Array Systems
Not Sure? Email Us [email protected] Get Friendly Help Fast!

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

Bose® RoomMatch® RMS215 subwoofer module is designed primarily to extend the low-frequency response of Bose RoomMatch® arrays to 40 Hz. The RMS215 subwoofer module features dual Bose LF15 15-inch high-excursion woofers, with a proprietary port design that minimizes distortion and improves perceived transient impact. The durable Baltic birch enclosure with 2-part polyurethane coating allows reliable ground-stack applications.

Features

Features

Subwoofer for Bose RoomMatch® array module loudspeakers
Dual Bose LF15 15-inch, high-excursion, 4-inch voice coil transducers
1000 W long-term / 4000 W peak power handling
139 dB SPL peak maximum SPL at 1 m

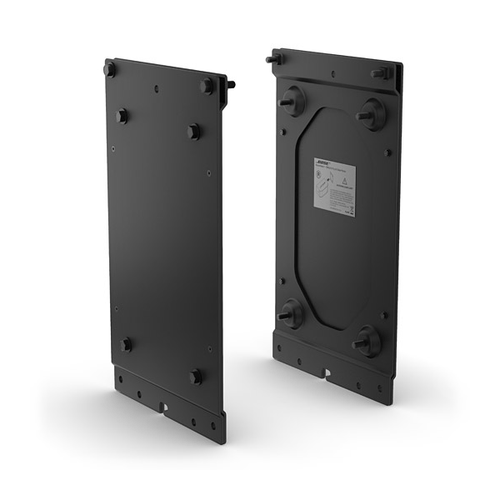

Optional side-plate mounting kit (RMSFLY) allows integration with RoomMatch full-range modules in arrays
Optional Array Frames and Extender Bars allow cardioid configurations
Bose Modeler® Software features presets for cardioid configurations

Specification

Frequency Range (-10 dB)	40 Hz - 280 Hz
Nominal Dispersion	Omni-directional below 100 Hz
Long-Term Power Handling	1000 W (4000 W peak),Per woofer: 500 W (2000 W peak)
Nominal Impedance	2 x 8 Ω (discrete connection per woofer)
Sensitivity (SPL / 1 W @ 1 m)	Array Position (free field): 97 dB SPL,Ground Stack (half space): 103 dB SPL
Maximum SPL @ 1 m	Array Position (free field): 127 dB SPL (133 dB SPL peak)
Maximum SPL @ 1 m	Ground Stack (half space): 133 dB SPL (139 dB SPL peak)
Enclosure	13-ply Baltic birch plywood
Environmental	Indoor use only
Connectors	Two (2) parallel-wired NL4 Neutrik® Speakon® connectors
Color	Black, Paintable
Dimensions	17.8" H x 37.1" W x 21.8" D (452 mm x 943 mm x 553 mm)
Net Weight	132 lbs (59.9 kg)
