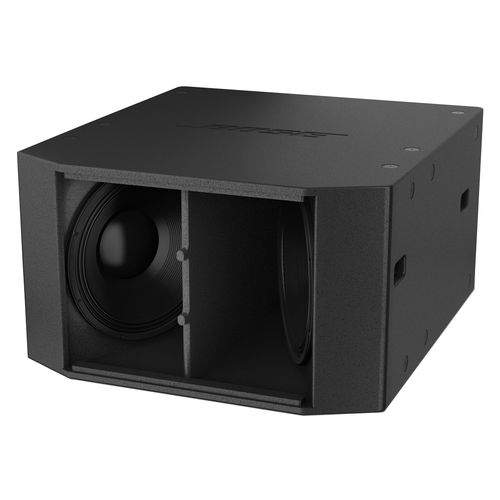

Bose RoomMatch RMS218 VLF-Subwoofer Module Loudspeaker (Discontinued)
Part # 344055-0110
Model # RMS218

The Bose® RoomMatch® RMS218 VLF-Subwoofer Module Loudspeaker features dual Bose® LF18 18-inch high-excursion woofers, and a V-baffle design that reduces distortion while minimizing enclosure width.

Availability:

No Longer Available
See other Bose Line Array Systems
Not Sure? Email Us [email protected] Get Friendly Help Fast!

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The Bose® RoomMatch® RMS218 VLF-subwoofer is designed primarily to extend the low-frequency response of Bose® RoomMatch® arrays down to 25 Hz. It features dual Bose® LF18 18-inch high-excursion woofers, and a V-baffle design that reduces distortion while minimizing enclosure width. The durable Baltic birch enclosure with 2-part polyurethane coating integrates with all RoomMatch® modules for reliable ground-stack applications. Use the RMS218 VLF-subwoofer with RMS215 subwoofer and full-range modules to create RoomMatch® 4-way systems.

Features

Features

  • Very-low-frequency subwoofer - with 30 Hz rated response (-3 dB) and 25 Hz usable response (-10 dB) for the most demanding electronic music and sound-effect program material
  • Dual Bose LF18 woofers 18-inch, high-excursion, 4.5-inch voice coil, neodymium-magnet transducers provide maximum performance
  • 142 dB peak sound levels - provide balanced subwoofer performance with the largest RoomMatch array systems
  • V-baffle design - provides increased acoustic loading and lowers port airflow turbulence to improve sound quality, while minimizing enclosure width to allow integration with all RoomMatch modules
  • Recommended Bose PowerMatch® PM8500 power amplifier - provides optimal power and loudspeaker DSP
Specification
Single Module Performance
Frequency Response (+/-3 dB)30 Hz - 200 Hz
Frequency Range (-10 dB)25 Hz - 250 Hz
Nominal Coverage Pattern (H x V)Omni-directional below 100 Hz
Recommended High-Pass Protection Filter25 Hz with minimum 12-dB / octave filter
Recommended Crossover Frequency60 - 100 Hz (active, external DSP)
Transducers
Low Frequency2x Bose® LF18: 18" woofer w. neodymium magnet, 4.5" voice coil w. ventilated gap & demodulation ring
Nominal Impedance2 x 4 Ω (discrete connection per woofer)
Physical
Enclosure13-ply Baltic birch plywood
FinishTwo-part spray polyurethane coating, black
Grille18-gauge (1.2 mm) perforated steel, powder-coated finish, black
EnvironmentalIndoor use only
Connectors2 x Neutrik® NL4 wired parellel
Suspension / Mounting24 x M10 threaded inserts (6 ea. top, bottom, sides) opt. RMSFLY218 kit for RM Array integration
Dimensions21" x 37" x 41.5"
(534 mm x 940 mm x 1055 mm)
Net Weight203 lbs (92.1 kg)
248 lbs (112.5 kg) with fly kit
AccessoriesRMSFLY218 side-plate rigging kit
Shipping Weight229 lbs (103.9 kg)
