Bose DesignMax Luna Extended‑Range Pendant Speaker

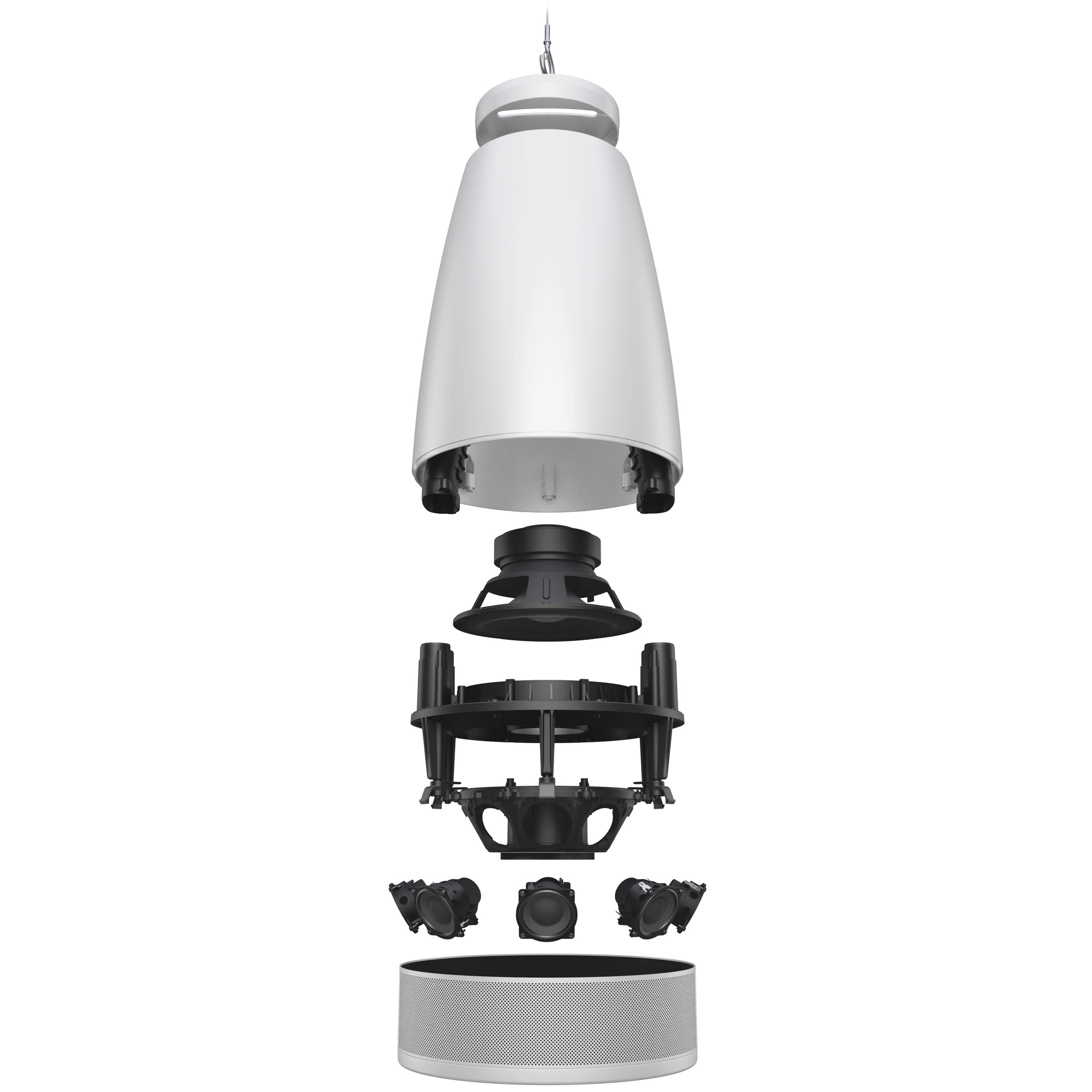

The DesignMax Luna pendant loudspeaker offers full-range performance from a sleek, modern design—making it easy to get great sound in open-ceiling spaces. The proprietary Ring Array™ configuration combines eight 2-inch mid-high drivers with an integrated 8-inch woofer, delivering clear, balanced sound down to 40 Hz. With 111 dB max SPL and consistent 140° coverage, Luna reduces the number of speakers needed while preserving clarity, aesthetics, and design flexibility. Single- or two-point suspension allows for fast installs and perfectly balanced hangs—even in challenging ceiling conditions—while concealed wiring keeps everything looking clean. Luna marks a giant leap forward in pendant loudspeakers, raising the bar for what’s sonically possible in retail stores, restaurants, fitness studios, and other design-conscious spaces.
The Bose Professional DesignMax Luna was awarded Best of Show at InfoComm 2025 for AV Technology.
- Features
Features
- Proprietary Ring Array™ configuration delivers precise, balanced sound with no hot spots or dead zones
- Integrated 8" woofer extends down to 40 Hz - no subs needed
- Wide-throw 140° coverage reduces speaker count and installation costs
- Flexible mounting lets you use a single cable - or two-point suspension - for fast installs and perfectly balanced hangs
- Streamlined design with concealed wiring and premium finish options
- Factory-optimized loudspeaker presets when combined with Bose Professional amplifiers and processors
- Compatible accessories include DesignMax Pendant Threaded Rod Adapter and Conduit Adapter
- Specification
Frequency Response (-3 dB) 50 Hz – 15,000 Hz Frequency Range (-10 dB) 40 Hz – 20,000 Hz Nominal Coverage (500 Hz – 5 kHz) 140° conical Power Handling, Long-term Continuous AES Transducer Test - 140W
Bose Professional Extended-Lifecycle Test - 100WPower Handling, Peak AES Transducer Test - 560W
Bose Professional Extended-Lifecycle Test - 400WSensitivity (SPL / 1 W @ 1 m) AES Transducer Test - 85 dB
Bose Professional Extended-Lifecycle Test - 85 dBCalculated Maximum SPL @ 1 m, Continuous AES Transducer Test - 107 dB
Bose Professional Extended-Lifecycle Test - 105 dBCalculated Maximum SPL @ 1 m, Peak AES Transducer Test - 113 dB
Bose Professional Extended-Lifecycle Test - 111 dBLoudspeaker EQ Not required. Bose Professional EQ voicing and SmartBass available Transformer Taps 70V: 12W, 25W, 50W, 100W, bypass
100V: 25W, 50W, 100W, bypassLow Frequency 1 x 8" (203 mm) woofer High Frequency 8 x 2" (51 mm) drivers in circular array Nominal Impedance 8Ω (transformer bypass) Enclosure Material Engineered plastics Grille Perforated steel, powder-coated finish, paintable Logo Rotatable, removable Color White (RAL 9003) Environmental Indoors only Certifications UL Listed, UL 1480A, NFPA 70 & NFPA 90A, CE-compliant Connectors 6-pin Euroblock connector with loop-through, mounted on top. Accepts 18 AWG – 14 AWG (0.8 mm2 – 2.1 mm2 ) wire Suspension / Mounting (1) 3-hole suspension cable attachment point. Attach to (A) 1 main suspension cable & 1 secondary suspension cable with slack for safety or (B) 2 suspension cables supporting load equally with pendant located halfway between 2 suspension beams Cable Length 15ft Optional Accessories Threaded rod adapter, conduit adapter Dimensions (Dia x D) 12.1" (308 mm) x 19.4" (492 mm) Weight 22 lbs (10 kg) - Documents
Documents
- In The Box
In The Box
- (1) DesignMax Luna DML88P Pendant Loudspeaker
- (1) Connection Panel Cover
- (1) Adjustable Suspension Cable System
- (4) Cable Ties
- Installation Guide
