Details
The speaker is designed to provide excellent sound quality for a wide variety of low to medium volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more.
The 130° coverage is especially wide, delivering consistent sound quality for listeners located both off and on axis.
The high technology cone driver is designed with a lightweight high-temperature Kapton™ voice coil former and aluminum coupling ring to reduce distortion and extend the high-frequency response of the system. The FEA-optimized motor construction and cone geometry allow for smooth frequency response and improved off-axis performance. A high-temperature grade voice coil ensures stable performance under long-term high power working conditions. The butyl rubber surround provides long-term durability and good sonic damping, and the polypropylene cone s water and humidity resistant.
The removable locking connector has screw terminals for secure wire termination and “loop through” terminals. A dual strain relief assembly provides clamping for use with cable or flex conduit.

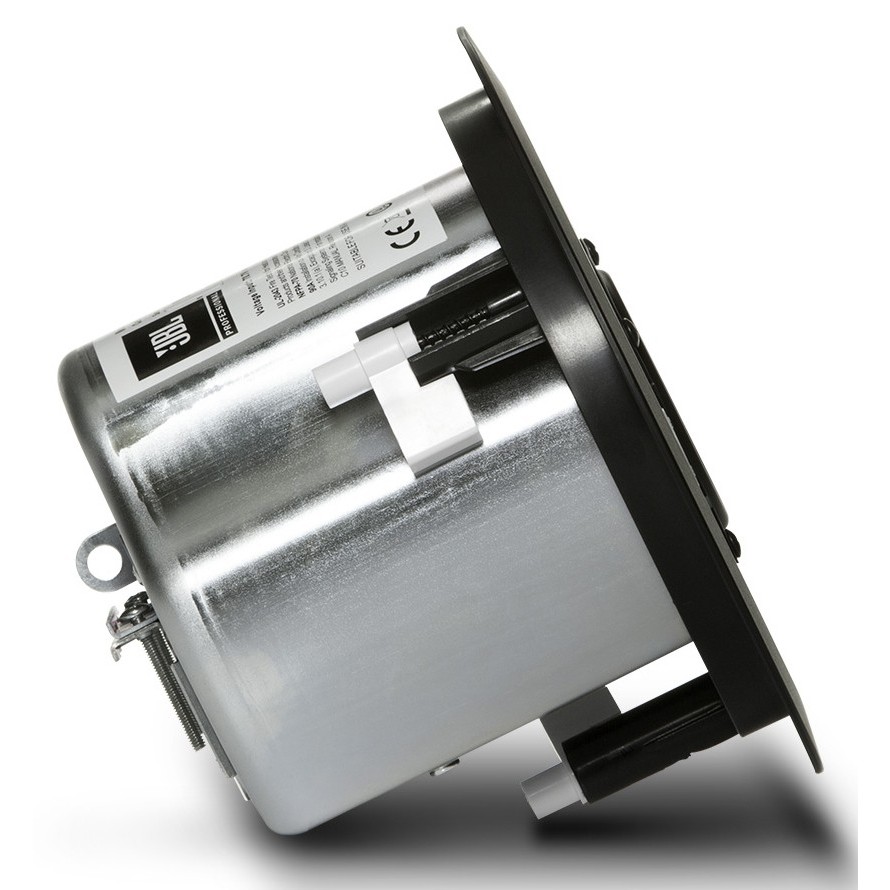

The compact backcan extends only 5.4" behind the baffle, allowing the speaker to fit into more shallow ceiling areas.
- Features
Features
- 3" full-range driver
- Blind-mount backcan for quick and easy install
- Dual conduit/cable clamps
- Combined 70V/100V and low impedance direct operation
- 20 Watts at 8Ω nominal setting
- 15 Watts multi-tap at 70V/100V
- 68 Hz – 17 kHz bandwidth with wide 130° coverage
- Available in colors white or black

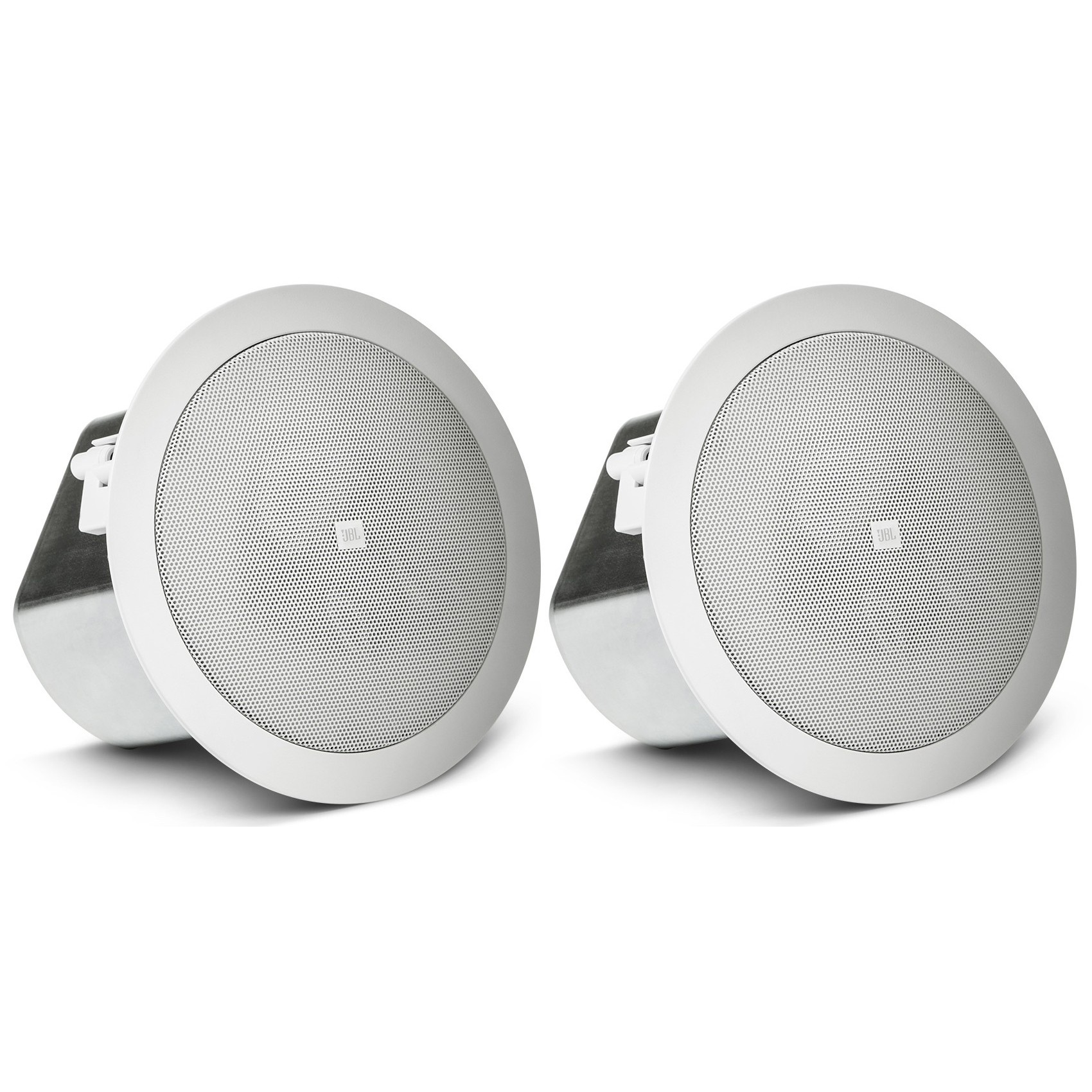

- Sold in pairs (all mounting hardware included)
- Specification
Frequency Range (-10 dB) 68 Hz – 17 kHz Power Capacity (at low-Z) 40 Watts Continuous Program Power;20 Watts Continuous Pink Noise Transformer Taps 15 W, 7.5 W, 3.8 W @ 70V and 100V(& 1.9 W @ 70V only) Frequency Response (±3 dB) 95 Hz – 15 kHz Nominal Sensitivity 84 dB Nominal Coverage Angle 130° Conical Coverage Directivity Factor (Q) 9.8 Directivity Index (DI) 7.4 dB Rated Maximum SPL 97 dB @ 3.3 ft (1 m) Average, 103 dB Peak Nominal Impedance 8 Ohms (In Direct/Bypass 8Ω Setting) Input Connectors Removable Locking 4-pin Connector with Screw-Down Terminals. Max Wire Size 12 AWG (2.5 mm2) Connector Wiring Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru;Pin 4 = - Loop Thru Strain Reliefs Strain Relief for 2 Cables or 2 Flex Conduits Via Coupled Clamping Mechanism Materials ABS Baffle with UL94-V0 and UL94-5VB Flame Class Fire Rating. Zinc-platedSteel Backcan. Safety Agency UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Signaling Speaker. Ceiling Cutout Size Circular Cutout with 6.7" (170mm) Diameter (Cardboard Cutout Template Included) Ceiling Thickness Range Up to 1.4" w/Stock Dog-Ears. MTC-TCD Thick Ceiling Dog-Ears Available Up to 2.2" Ceiling Thickness. Safety Seismic Attachment One Point, Top Surface Dimensions (Dia x D) 7.7" (195.58 mm) x 5.4" (137.16 mm) Net Weight (ea) 3.5 lbs (1.6 kg) Shipping Weight (pair) 14.7 lbs (6.7 kg) - In The Box
In The Box
- C-ring support backing plate
- (2) Tile support rails
- Cutout template
- Paint shield
- Removable locking multi-pin connector
- Grille
