CAD Audio WX1200 Wireless Handheld System (Discontinued)

Part #:
WX1200
Model #:
WX1200
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The CAD Audio WX1200 Wireless Handheld System features frequency agile diversity reception for outstanding connectivity, minimizing multipath interference. The 16 Channel Agility for frequency plan flexibility and VHF Channelization provides increased operating range.

Description

The StagePass WX1200 provides you an easy and exciting performance for your next gig. CAD Audio/Astatic Commercial has been creating high-value products since 1938 and prides itself on supporting and developing the live performer. Our design criterion was straightforward: develop a high-performance wireless microphone system agile enough to cope with today’s dynamic RF environment that is both easy to use and exciting to operate.

The CAD Audio WX1200 Wireless Handheld System features frequency agile diversity reception for outstanding connectivity, minimizing multipath interference. 16 Channel Agility for frequency plan flexibility and VHF Channelization provides increased operating range. Scan-Link technology provides instantaneous and automatic channel configuration (First, the receiver conducts an environmental frequency evaluation then selects a channel. Second, the receiver links to the transmitter and sets the transmit frequency automatically). Double AA batteries supply >10hrs of battery life. Transmitters have soft touch On & Mute switches with multi-color LED indicators to monitor mute status and battery life. Metal Chassis provide a durable and formidable shielded enclosure. The WX1200 receiver offers ¼” and XLR outputs for maximum flexibility.

Features

  • VHF Channelization for increased operating range
  • Diversity Operation to minimize multipath interference
  • 16 Channel Agility for frequency plan flexibility
  • Scan-Link technology for instantaneous and automatic channel configuration
  • The receiver conducts an environmental frequency evaluation then selects a channel
  • The receiver links to the transmitter and sets the transmit frequency automatically
  • Double AA batteries with >10hrs of battery life
  • Transmitters have soft touch On & Mute switches with multi-color LED indicators
  • Metal Chassis for a durable and formidable shielded enclosure

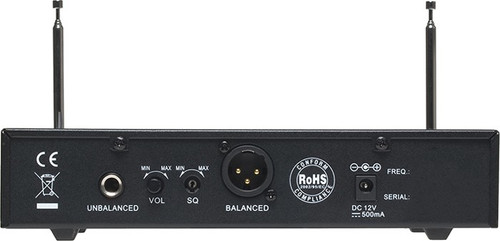

  • ¼” and XLR outputs for maximum flexibility

Specifications

Balanced Output -16dBV
Unbalanced Output -13dBV
Balanced Output 350 ohms
Unbalanced Output 250 ohms
Power Requirement 12-15VDC, 500mA (power supply included)
Dimensions (H x W x D) 1.5" (40 mm) x 9.5" (230 mm) x 4.5" (114 mm)
Net Weight 0.77 lbs 12.3oz (350g)
Operating Principal Moving Coil Dynamic
Polar Pattern Cardioid
Frequency Response 40Hz- 15kHz
Max SPL 143dB
Dynamic Range 110dB
RF Output
Power Requirement 2 x AA Batteries
Battery Life > 10 Hours, high quality alkaline
Dimensions (H x Dia) 9.5" (241 mm) x 1.875" (48 mm)
Net Weight 0.45 lbs (0.204 kg)

System Includes

  • (1) RX1200 Receiver

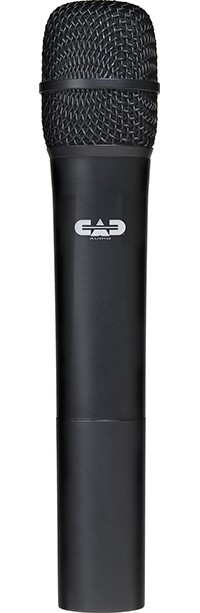

  • (1) TX1200 Cardioid Dynamic Handheld Transmitter
