CHAUVET DJ Kinta FX 3-in-1 LED Multi-Effects Light (Discontinued)

Description

The Kinta FX combines an LED derby effect, laser and SMD strobe in one compact fixture. These effects can be coordinated to create a variety of exciting looks that feature multicolored derby beams, dynamic strobes and chases plus hundreds of sharp red and green laser beams. Control this versatile fixture easily via DMX, master/slave, optional IRC-6 remote or its digital display. Multiple units can be power linked to save time running cables and extension cords. Fits best in the CHS-30 VIP Gear Bag.

Features

• Compact multi-effect with a Kinta, Laser and SMD Strobe
• LED Kinta effect projects countless razor sharp multicolor beams
• SMD strobes produce eye-catching strobe effects and chases
• A red and green laser that casts hundreds of beams
• Master/Slave with other Mini Kinta FXs for a coordinated show

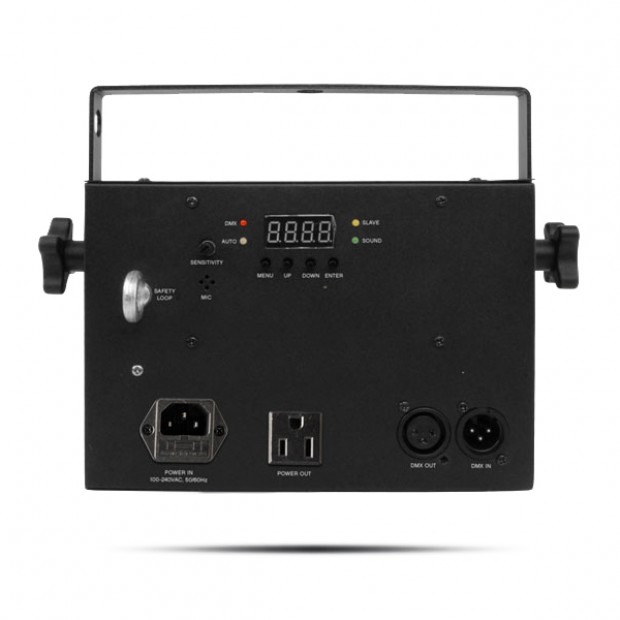

• Easily control the unit from DMX, Master/Slave, IRC-6 or the digital display
• Save time running cables and extension cords by power linking multiple units

Specifications

DMX Channels	2 or 9
DMX Connectors	3-pin XLR
Light Source	Kinta: 4 LEDs (1 Red, 1 Green, 1 Blue, 1 White) 7.5W (2.4 A), 50,000 hours life expectancy Strobe: 16 SMD LEDs (white) 5W (1.6 A) 50,000 hours life expectancy Laser: 650 nm/100 mW (Red) laser diode, 532 nm/30 mW (Green) laser diode
Strobe Rate	0 to 20 Hz
Power Linking	16 units @ 120 V; 31 units @ 230 V
Input Voltage	100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current	32W, 0.5 A @ 120 V, 60 Hz 31W, 0.3 A @ 230 V, 50 Hz
Approvals	Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
Optional Controllers	IRC - 6
Dimensions (H x W x D)	7.4" (187 mm) x 10.3" (262 mm) x 7.4" (187 mm)
Weight	3.8 lbs (1.7 kg)

DOCUMENTS

In The Box

• (1) Kinta FX Light
• (1) Power Cord
• (1) Warranty Card
• (1) User Manual
