CHAUVET DJ Swarm Wash FX 4-in-1 LED Effects Light (Discontinued)

Description

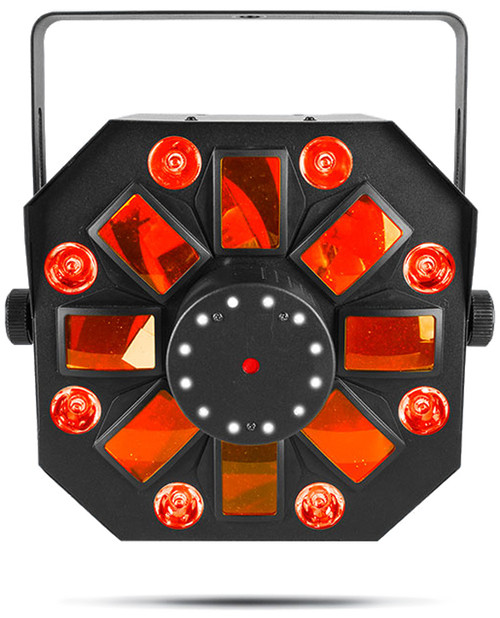

CHAUVET DJ Swarm Wash FX 4-in-1 LED Effects Light

The Swarm Wash FX is a 4-in-1 LED effect fixture that combines an RGBAW rotating derby, RGB+UV wash, red/green laser, and a ring of white SMD strobes. Create an endless array of looks by individually controlling each effect via DMX and master/slave modes. Other features include automated and sound activated programs and a user-friendly menu structure. Multiple units can be power linked to save time running cables and extension cords. Fits best in the CHS-40 VIP Gear Bag.

Features

• 4-in-1 LED light that combines an RGBAW rotating derby, RGB+UV wash, red/green laser, and a ring of white SMD strobes
• Endless possible looks with individual control of each effect via DMX and Master/Slave modes
• Improved menu structure for ease of use
• Red and green laser beams project thousands of beams for maximum coverage
• Quick set up with automatic and sound-activated programs
• Control clutter and save time running cables and extension cords by power linking multiple units
• Fits best inside the CHS-40 VIP Gear Bag

Specifications

DMX Channels	2 or 18
DMX Connectors	3-pin XLR
Light Source	(Swarm): 5 LEDs (1 red, 1 green, 1 blue, 1 amber, 1 white) 2 W (650 mA) 50,000 hours life expectancy (Wash): 8 LEDs (quad-color RGB+UV) 1.5 W (600 mA), 50,000 hours life expectancy (Strobe) 12 LEDs (white) 1 W (300 mA), 50,000 hours life expectancy (Laser): 650 nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode
Strobe Rate	0 to 20 Hz
Power Linking	15 units @ 120 V; 26 units @ 230 V
Input Voltage	100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current	40 W, 0.5 A @ 120 V, 60 Hz 38 W, 0.3A @ 230 V, 50 Hz
Approvals	CE, FDA (Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007)
Dimensions (H x W x L)	9.4" (241 mm) x 13" (332 mm) x 13.1" (335 mm)
Weight	9.2 lbs (4.2 kg)

DOCUMENTS

In The Box

• (1) Swarm Wash FX
• (1) Power Cord
• (1) Hanging Bracket with Mounting Hardware
• (1) Warranty Card
