Church Sound System with 2 JBL JRX215 Loudspeaker and Crown XLS 2502 Amplifier

Home /
Church Sound System with 2 JBL JRX215 Loudspeaker and Crown XLS 2502 Amplifier

Description

Details

The JBL JRX215 two way loudspeakers, the JBL JRX218S compact subwoofer and the Crown XLS 2502 power amplifier combine for an ideal portable or installed church sound system. Easy setup, installation and operation, and fits a wide variety of house of worship applications.

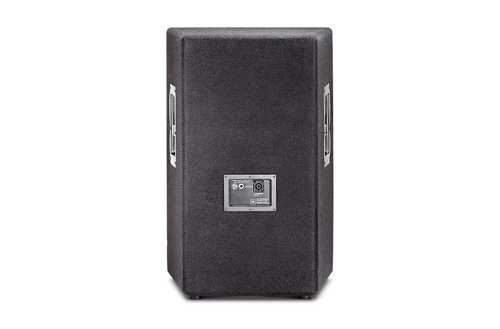

The JBL JRX215 is a portable, 15”, two-way speaker system designed specifically for applications in live music, music playback, and reinforcement of speech. With the smooth, natural sounding mid-range of the system, the JRX215 does a great job projecting live vocals, solos and speech. The extended lows and great top-end make it at home for music playback in DJ applications or anywhere live sound reinforcement is needed. Features include the dual-angle, 36 mm pole-mount socket as well as Neutrik Speakon and 1/4” input connectors.

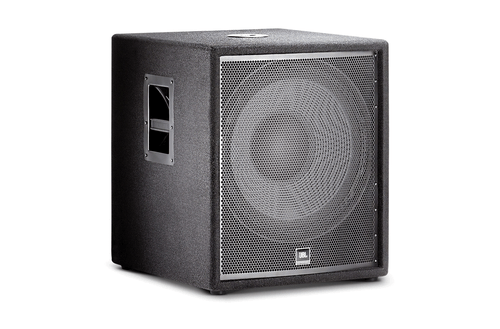

The JBL JRX218S is driven by a massive JBL 18" woofer with a cast frame and 3" voice-coil.

The Soundcraft Ui Series mixers feature cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices, and can use up to 10 control devices simultaneously. In addition, the Ui12 features built-in HARMAN signal processing from dbx, DigiTech and Lexicon, including dbx AFS2, DigiTech Amp Modeling, and more. This model features fully recallable and remote-controlled mic gain and phantom power, along with 4-band parametric EQ, high-pass filter, compressor, de-esser and noise gate on input channels.

The Ui12 offers 31-band graphic EQ, noise gate and compressor on all outputs, plus real-time frequency analyser (RTA) on inputs and outputs. Built in are three dedicated Lexicon FX busses: Reverb, Delay and Chorus. In addition, mixer controls include Subgroups, Mute groups and View groups, among others. The Ui Series mixers feature full Show/Snapshot recallability with channel recall safes. while security lockout features allow customization of device access to only specific functions and mixes if needed. Both mixers also offer independent network interfaces on board for simultaneous control by Wi-Fi and Ethernet, plus a floor-ready rugged chassis for live applications.

The Ui12 also features four XLR combo mic/line inputs, four XLR mic inputs, two channels of Hi- Z/instrument inputs, as well as a stereo RCA line input. A 2-channel USB media player is included, along with two balanced XLR Aux outputs, two quarter-inch headphone outputs with level control, plus balanced stereo XLR and quarter-inch main outputs. Two-channel USB audio playback is compatible with MP3, WAV and AIFF formats.

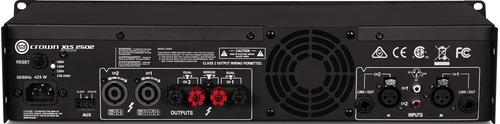

The next generation of Crown's XLS got a makeover with a sleek new look, a LCD display that is three times larger, and more DSP with higher capabilities. Like its predecessor, the new XLS is ultra-efficient with Crown’s patented DriveCore technology and can drive 2400 W at 4Ω bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver a powerful, pure sound experience for any venue.

The DBX DriveRack PA2 provides all the processing you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in dbx’s proprietary AutoEQ and AFS algorithms, a new input delay module for delaying the FOH system to the backline, Ethernet control via an Android, iOS, Mac, or Windows device, and updated Wizards, the DriveRack PA2 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation.

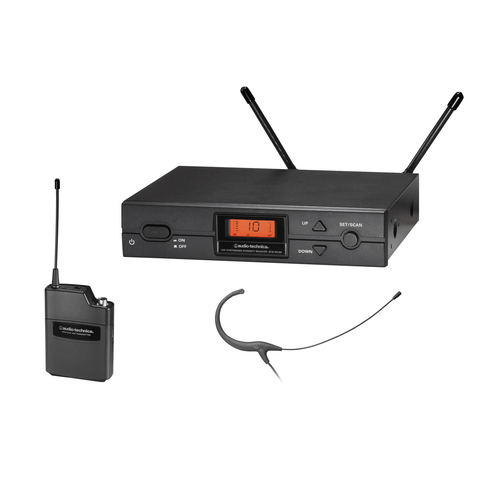

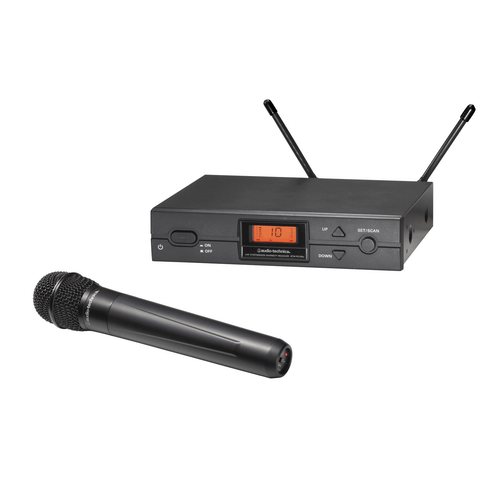

Audio-Technica’s second-generation 2000 Series is a 10-channel frequency-agile UHF wireless system designed to suit a variety of applications, including MI/live performance, fixed installation, public address, A/V rental houses and places of worship. It offers all the advantages of a high-quality, professional wireless system at an extremely affordable price. New professional features include two available frequency bands and switchable antenna power. Also new to the 2000 Series, the optional ATW-CHG2 two-bay recharging station provides power to recharge NiMH batteries in two ATW-T220a handheld transmitters and/or ATW-T210a UniPak transmitters in any combination.

Offering 10 selectable channels in one of two UHF frequency ranges and True Diversity UHF wireless technology, the 2000 Series features automatic frequency scanning. At the touch of a button, this function automatically determines and sets the best available frequency. Any of the 2000 Series’ 10 channels may be used together without any frequency coordination problems or group selection issues. The 2000 Series also incorporates Audio-Technica’s Tone Lock squelch plus an easy-to-read LCD information display.

Features

Features

JBL JRX215 15" 2-Way Loudspeakers:

JBL 15" low frequency driver with a 2.5" (64 mm) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling
JBL 2414H-C 1" (25 mm) polymer diaphragm compression driver improves high frequency performance as well as system reliability
The advanced network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region
High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating
Progressive Transition high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response
The rugged, acoustically superior enclosure is constructed from .75" (19 mm ) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance
SonicGuard protects the high frequency driver from excess power without interrupting the performance
Non-resonant, all-steel handles are used
Attractive 18-gauge perforated, steel grille protects components from damage
Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage

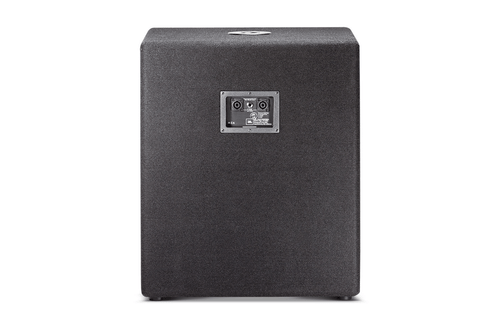

JBL JRX218S Compact Subwoofers:

18" compact subwoofer
350W (continuous), 1400W (peak) power capacity
The rugged enclosure is constructed from .75" (19 mm) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for durability and improved low-frequency performance. The enclosure is covered in black carpet
A top mounted, cast aluminum 35 mm pole mount receptacle can receive an optional SS3BK pole to facilitate use of the JRX218S as a base for a mid-high speaker cabinet
Non-resonant, all steel handles are used
Attractive 18-gauge perforated steel grille protects components from damage

Sound Craft Ui12 12 Input Remote Controlled Digital Mixer:

Tablet/PC/Smartphone Controlled Digital Mixer
Integrated Wi-Fi
Cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices
Use up to 10 control devices (tablets, phones, PCs) simultaneously
Legendary Harman Signal Processing from dbx, Digitech, and Lexicon
Fully recallable and remote-controlled mic preamps
4-band Parametric EQ, High-Pass Filter, Compressor, De-esser and Noise Gate on input channels
31-band Graphic EQ, Noise Gate and Compressor on all outputs
Real-Time Frequency Analyser (RTA) on inputs and outputs
3 dedicated Lexicon FX effects processors: Reverb, Delay and Chorus
Subgroups, Mute Groups, View Groups, and more mixer controls
Show/Snapshot recall with channel safes and security lockout

Crown XLS 2502 2-Channel Power Amplifier:

Class D amp with Crown's ultra-efficient DriveCore technology weighs less than 11 lbs (5 kg)
Higher DSP capabilities: More control; has band pass filter per channel
Increased lighting functionality; turn off display or any/all LED indicators except clip and thermal to reduce distraction in dark venues
Selectable input sensitivity; 1.4 Vrms and .775 Vrms options so that amp can be driven at full power
Set display sleep mode after specified time without having to press a button
Security setting disables menu buttons; menu locked/unlocked by entering button combination
System reset allows factory settings to be restored
Remote power trigger
Peakx Limiters provide maximum output while protecting your speakers
XLR, 1/4", RCA inputs provide flexibility
Integrated PureBand Crossover System for better performance and control
Efficient forced-air fans prevent excessive thermal buildup

DBX DriveRack PA2 Loudspeaker Management System:

All New Setup Wizard
Streamlined AutoEQ
All New AFS (Advanced Feedback Suppression)
Mobile Control (Android, iOS, Mac, Windows)
dbx Compression
Graphic EQ
8-Band Parametric EQ (adjusted when using the AutoEQ) Input
Subharmonic Synthesis
Crossover (supports full range, 2-way, and 3-way systems)
8-Band Parametric EQs (used for speaker tunings) Output
dbx Limiting
Driver Alignment Delays

Audio-Technica UHF Wireless Systems:

Serious advances in affordable professional wireless
Clear sound quality and rock-solid, dependable performance
Automatic frequency scanning
10 compatible user-switchable channels in one of two UHF frequency ranges
Antenna power available for powered antennas & other in-line RF devices
True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
Tone Lock™ tone squelch system fights interference
Rugged metal half-rack receiver with soft-touch controls and LCD display
Balanced XLR and unbalanced 1/4” output jacks enable use with a wide variety of audio gear
Switchable transmitter power output with high and low settings offered
Includes rack-mount kit and detachable UHF antennas
Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver
ATW-T220a Handheld Microphone/Transmitter features PRO 41 Capsule for maximum feedback rejection and consistent sound
