The TOA HX-5 loudspeakers, TOA FB-120 subwoofers and the Crown XTi 4002 power amplifier combined creates an ideal portable or installed church sound system. Easy setup, installation and operation, and fits a wide variety of house of worship applications.

If you design and install speaker systems using conventional two-way box speakers, you know that pattern control in the voice frequency range can be difficult to manage, especially in reverberant spaces. The TOA HX-5 Variable Dispersion Speaker offers a radically different approach to speaker design with four adjustable dispersion angles, 60, 45, 30 and 15 degrees - that you can change in seconds! Best of all, you get pattern control below 1 kHz in a compact and lightweight enclosure that's perfect for a multitude of applications. Think of it as the most versatile "building block speaker" in your tool kit.

Features of the TOA HX-5 include high power handling (600W continuous), lightweight polypropylene construction, available in black and white, plus Speakon and screw terminal connectors. The HX-5 can be vertically or horizontally mounted with the built-in bracket or with optional wall, ceiling and stand-mount hardware.

The TOA FB-120B or FB-120W is a compact, indoor-use subwoofer system employing a high-power 12" (30 cm) woofer. It's designed for use in conjunction with TOA’s HX-5 Series or other full range speakers, and is particularly ideal for reproducing dynamic low-frequency sound for both permanent and temporary installations.

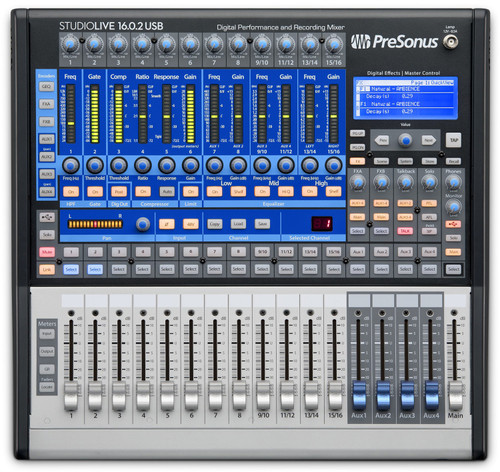

The StudioLive® 16.0.2 USB’s easy-to-use interface keeps all critical controls visible and accessible —not buried in menus or layers. The design philosophy is simple: One fader for every mono or stereo channel; one output for every bus. Add to that easily accessed, color-coded function buttons; rotary trim controls; and clearly labeled, individual knobs for EQ and dynamics processing. Aux sends have their own physical controls. Every channel has a big, bright meter display. But don’t let the analog feel fool you: The StudioLive 16.0.2 USB offers the power of modern digital mixing, multitrack recording, wireless remote control, and more. In a footprint of less than 2 square feet (0.19 square meters), the compact, 16-channel StudioLive 16.0.2 USB offers 8 mono input channels, 4 stereo channels, and 4 aux buses, each with a high-quality, 60 mm fader. You get generous analog I/O, 12 XMAX Class A solid-state mic preamps, a Talkback input with Class A mic preamp, extensive signal processing with physical controls, MIDI control, accurate metering, and a built-in multichannel recording interface. As with all StudioLive mixers, the 16.0.2 USB comes with a suite of tightly integrated recording, control, and audio analysis software. And it’s so lightweight and compact that you can easily hold it in one hand and tuck it under your arm.

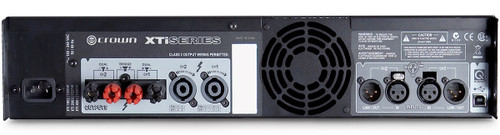

The Crown XTi 4002 2 Channel Stereo Power Amplifier is one of the most powerful and innovative amplifiers on the market today with unmatched performance and value, delivering the goods night after night without breaking a sweat. The XTi Series of power amplifiers from Crown represents a new era in affordable, quality power amplification. The line consists of four models, each in a uniform, rugged chassis. The XTi Series incorporates the best of tried-and-true design principles and innovative features. Modern power amplifiers are sophisticated pieces of engineering capable of producing extremely high power levels. They must be treated with respect and correctly installed if they are to provide the many years of reliable service for which they were designed. In addition, XTi Series amplifiers include a number of features which require some explanation before they can be used to their maximum advantage.

The DBX DriveRack PA2 provides all the processing you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in DBX’s proprietary AutoEQ and AFS algorithms, a new input delay module for delaying the FOH system to the backline, Ethernet control via an Android, iOS, Mac, or Windows device, and updated Wizards, the DriveRack PA2 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation.

Audio-Technica’s second-generation 2000 Series is a 10-channel frequency-agile UHF wireless system designed to suit a variety of applications, including MI/live performance, fixed installation, public address, A/V rental houses and places of worship. It offers all the advantages of a high-quality, professional wireless system at an extremely affordable price. New professional features include two available frequency bands and switchable antenna power. Also new to the 2000 Series, the optional ATW-CHG2 two-bay recharging station provides power to recharge NiMH batteries in two ATW-T220a handheld transmitters and/or ATW-T210a UniPak transmitters in any combination. Offering 10 selectable channels in one of two UHF frequency ranges and True Diversity UHF wireless technology, the 2000 Series features automatic frequency scanning. At the touch of a button, this function automatically determines and sets the best available frequency. Any of the 2000 Series’ 10 channels may be used together without any frequency coordination problems or group selection issues. The 2000 Series also incorporates Audio-Technica’s Tone Lock squelch plus an easy-to-read LCD information display.

Some products in this sound system design are now discontinued. Please call for replacements.
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

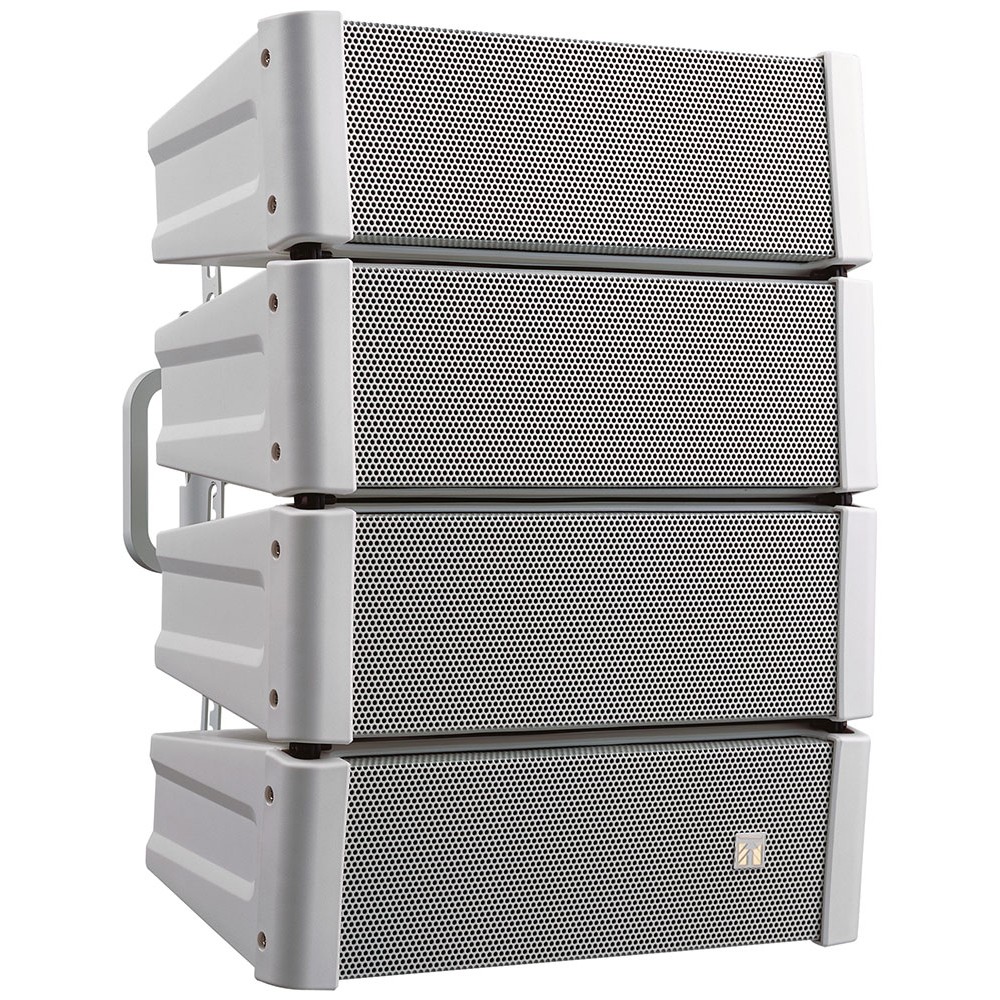

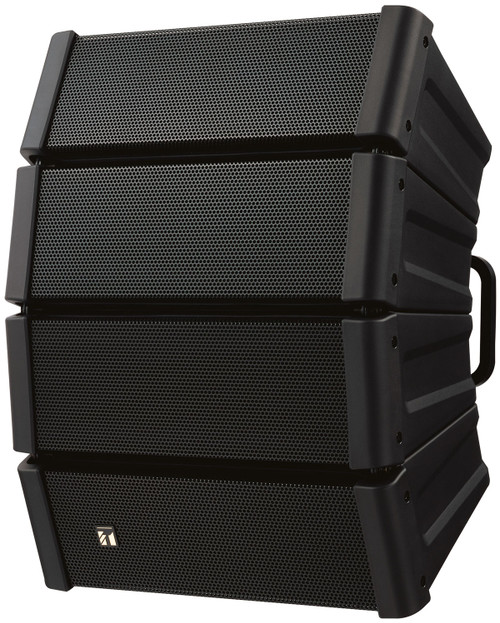

TOA HX-5 Variable Dispersion Speakers:

• Measurement Data
• Ideal for auditoriums, houses of worship and gymnasiums and more!
• Adjustable dispersion angle to 60, 45, 30 or 15 degrees
• Improved intelligibility through tailored coverage
• Compact design includes four preassembled modules with four LF drivers and twelve HF dome tweeters
• In-line driver arrangement for superior vertical coverage control
• Horizontal coverage remains broad through speech range: 100 deg. fixed
• Contoured waveguide-baffle for distortion-free coverage control
• High power handling: 600W cont. (200W, 24 hr. pink noise)
• High sensitivity: up to 99 dB, 1W @ 1 meter (500 to 5,000 Hz)
• Stack up to four units for improved coverage control
• Lightweight polypropylene construction
• Available in black and white
• Weather-resistant versions
• Parallel connectors - dual Speakon and screw terminal
• Vertical or horizontal mounting
• Built-in surface-mount bracket
• You can change the HX-5 coverage angle in seconds!
• Hardware included for flying / suspension
• Optional wall, ceiling and stand-mount hardware
• Optional bracket for joining multiples into one array
• Compatible with Omnimount 60 Series mounting hardware
• Optional 70V transformer, model MT-200

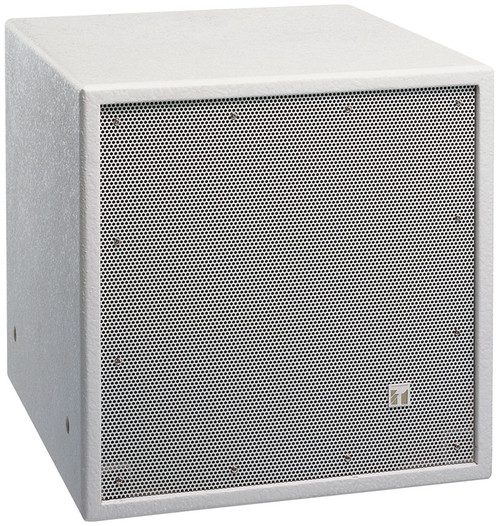

TOA FB-120B/W Subwoofers:

• Designed for use in conjunction with HX-5 series or other full-range speakers
• Compact indoor subwoofer system, available black or white
• High-power 12" woofer, 600W, 8 Ω
• Ideal for reproducing dynamic low-frequency sound for both permanent and temporary installations
• Equipped with convenient carrying handle

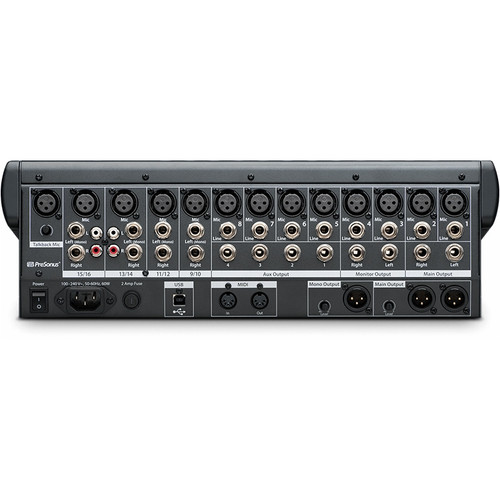

PreSonus StudioLive 16.0.2 USB Digital Mixer:

• 24-bit/48 kHz sampling rate
• 12 Class A XMAX microphone preamplifiers
• 16 line-level inputs
• 4 auxiliary buses
• High-definition analog-to-digital converters (118 dB dynamic range)
• Unlimited-headroom, 32-bit floating-point, digital mixing and effects processing
• 18x16 USB 2.0 digital recording interface
• Scene automation with load/save/recall of all settings
• Fat Channel with:
• High-pass filter
• Compressor
• Limiter
• Downward expander
• 3-band semi-parametric EQ
• Pan, phantom power, polarity invert, load/save presets
• Master effects processors (reverb and delay with Load and Save)
• MIDI control over: Scene and FX Recall, FX to Main
• assign, Main Output, and FX Return Level
• 60 mm faders
• Military-grade quick-touch buttons
• Fast-acting LED meters
• Talkback communication system
• Rugged steel chassis
• Compatible with Cubase, Digital Performer, Logic, Nuendo, Sonar, Studio One®, and others
• Windows® and Mac® compatible

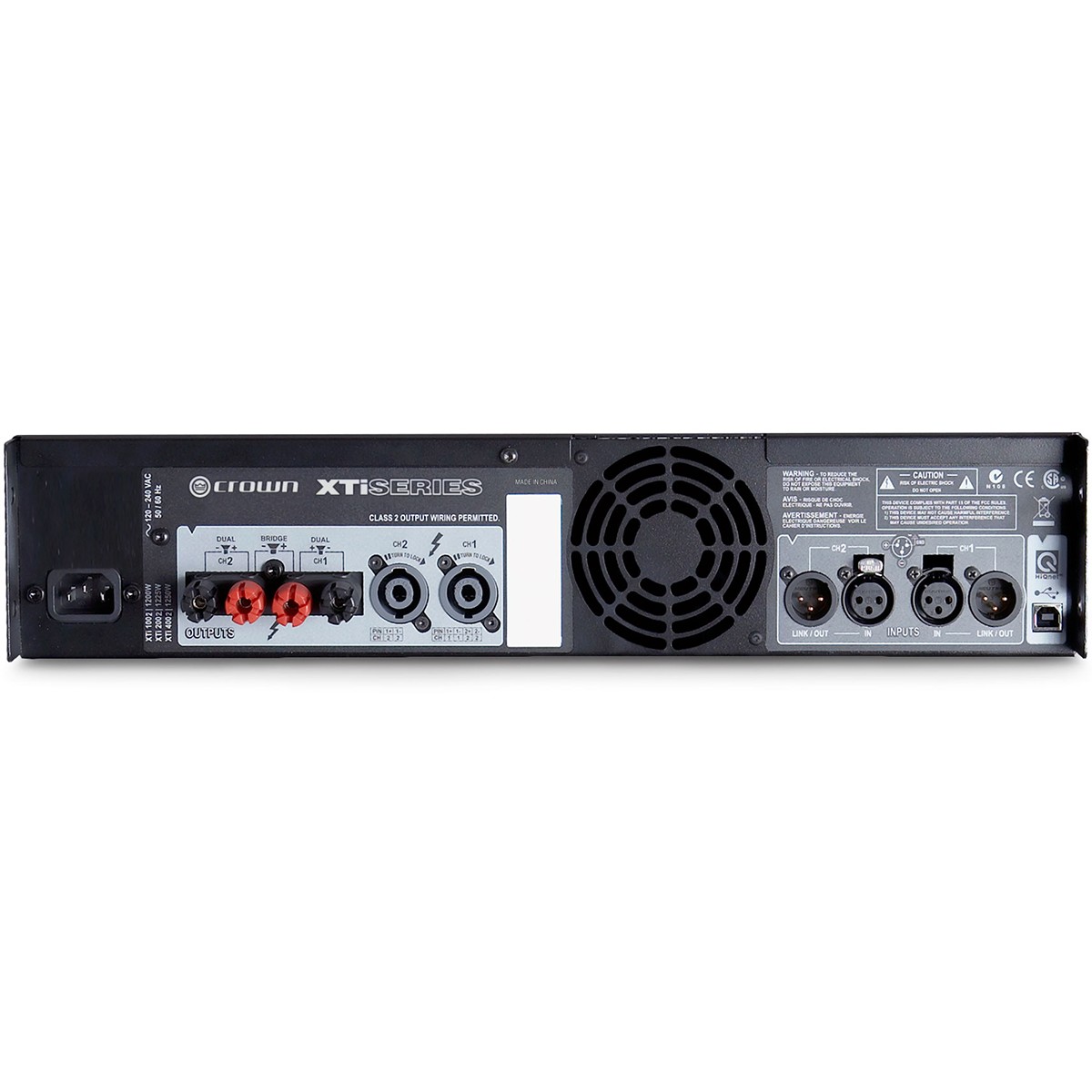

Crown XTi4002 Power Amplifier:

• LCD front panel display
• Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
• 3 User-defined fan mode controls – normal, early and fullspeed – for matching fan performance to a specific application
• New system monitoring provides software visibility of AC line voltage and power supply temperature
• Increased number of presets to a total of 30; 29 of which are user definable
• Integrated cast-aluminum handles for easy handling and enhanced durability
• Locking power cord clip provides a secure connection between the amplifier and power cord
• Updated HiQnet Band Manager™ and System Architect™ control software

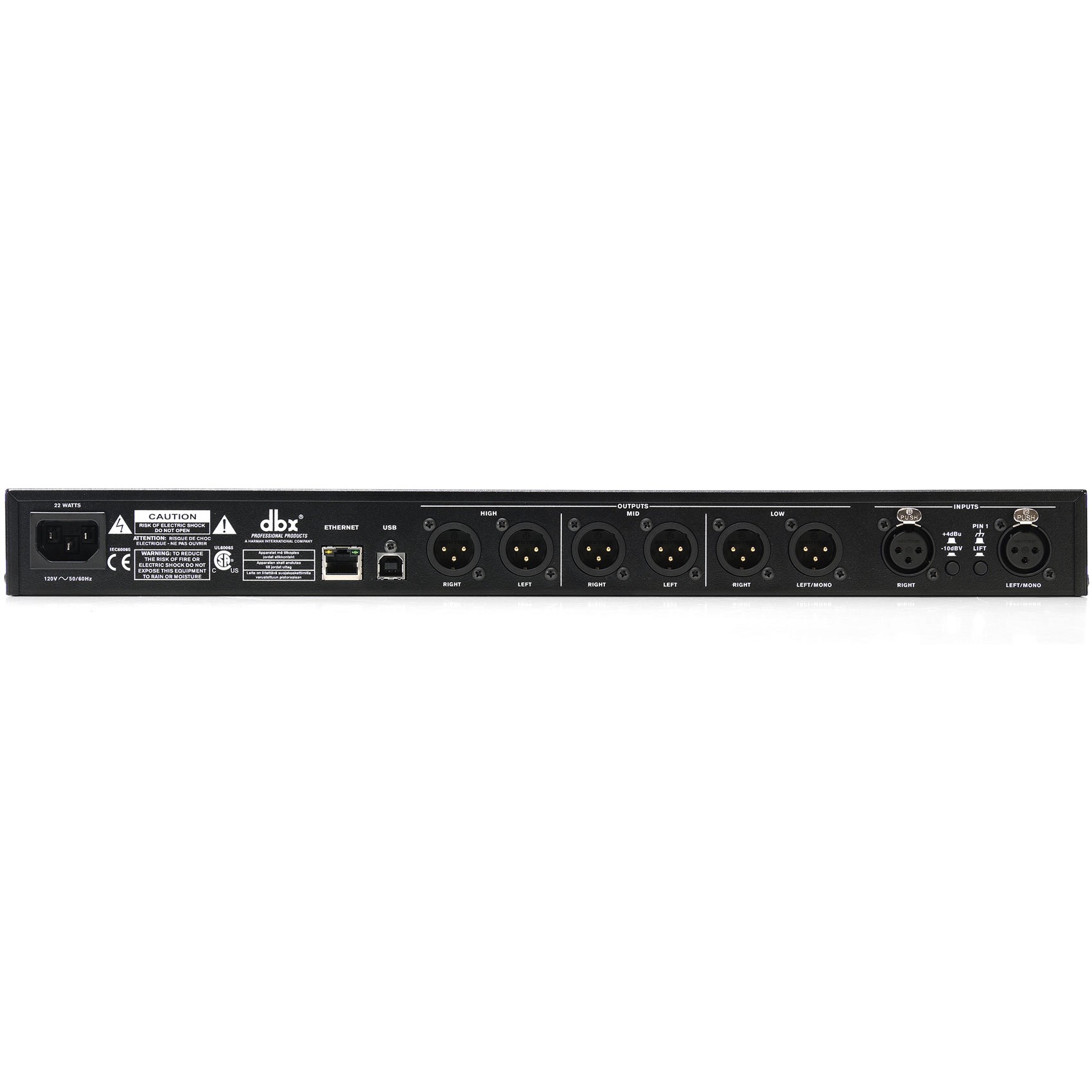

DBX DriveRack PA2 Loudspeaker Management System:

• All New Setup Wizard
• Streamlined AutoEQ
• All New AFS (Advanced Feedback Suppression)
• Mobile Control (Android, iOS, Mac, Windows)
• dbx Compression
• Graphic EQ
• 8-Band Parametric EQ (adjusted when using the AutoEQ) Input
• Subharmonic Synthesis
• Crossover (supports full range, 2-way, and 3-way systems)
• 8-Band Parametric EQs (used for speaker tunings) Output
• dbx Limiting
• Driver Alignment Delays

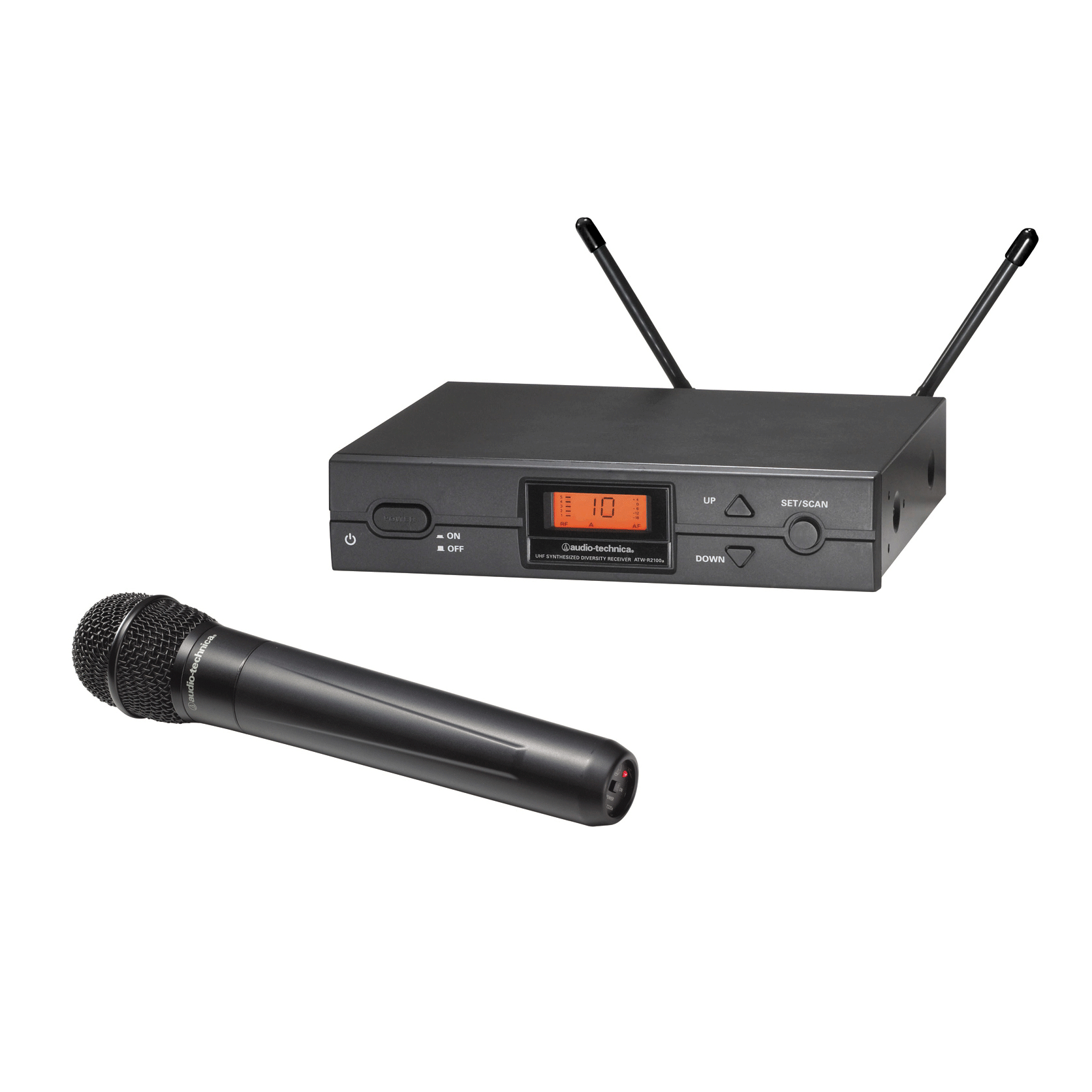

Audio-Technica UHF Wireless Systems:

• Serious advances in affordable professional wireless
• Clear sound quality and rock-solid, dependable performance
• Automatic frequency scanning
• 10 compatible user-switchable channels in one of two UHF frequency ranges
• Antenna power available for powered antennas & other in-line RF devices
• True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
• Tone Lock™ tone squelch system fights interference
• Rugged metal half-rack receiver with soft-touch controls and LCD display
• Balanced XLR and unbalanced 1/4" output jacks enable use with a wide variety of audio gear
• Switchable transmitter power output with high and low settings offered
• Includes rack-mount kit and detachable UHF antennas
• Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver
• ATW-T220a Handheld Microphone/Transmitter features PRO 41 Capsule for maximum feedback rejection and consistent sound

• (2) TOA HX-5 Variable Dispersion Speakers
• (2) TOA FB-120B/W Subwoofers
• (1) PreSonus StudioLive 16.0.2 USB
• (1) Crown XTi4002 Power Amplifier
• (1) DBX DriveRack PA2 Loudspeaker Management System
• Your Choice of (1) Audio-Technica Wireless System:
• Audio-Technica Handheld Wireless System (ATW-2120b)
• Audio-Technica Headworn Wireless System (ATW-2192-TH)
• (5) CBI MLN-3 XLR Cables
• (250') West Penn 227 Audio Speaker Cable
