Church Sanctuary Column Array Sound System with 4 Yamaha VXL1-16 Slim Column Array Compact Loudspeakers and PX3 Power Amplifier

Perfect for Long and Narrow Sanctuaries and Venues

Many of today’s traditional structures or architectural designs in houses of worship pose a challenge for acoustic intelligibility. This Yamaha Church Sound System helps to solve this issue by enhancing the audio clarity for the listener. This Church or Cathedral audio system uses the best selection the column or vertical steered array type loudspeakers that are architecturally compact, concealable but still provide extremely even powered coverage from a small footprint. Smoothly cover the entire audience with a high level of intelligibility (very important for the spoken word) without taking up too much space. Low power consumption and efficient use of amplifiers is key.

This complete church sound system comes equipped with four Yamaha VXL1-16 slim column array loudspeakers, Soundcraft Ui16 remote controlled digital mixer, Yamaha PX3 stereo power amplifier , Audio-Technica ATW-1366 digital wireless system with 2 boundary microphones, ATW-1311/l wireless system with 2 lavalier microphones, Atlas Sound AP-S15A power conditioner and distribution unit, Gator GRW2012508 12U wall rack with steel door, Gator GRW-DRW3 3U rack drawer, two Atlas Sound CB1 blank panels, speaker brackets for wall mounting and the required cables.

Yamaha VXL1-16 Slim Column Array Loudspeakers

The VXS1L-16 is a compact slim column array loudspeaker with 16 1.5" drivers, ideal for smaller commercial installations such as retail stores, malls, office spaces, churches and educational institutions –anywhere high-quality audio and pattern control is needed. It's slim and sleek design with both black and white exterior options, blends seamlessly into the surrounding interior design. It features both 20 and 30-degrees of vertical coverage that can be easily changed by a single switch on the back of the loudspeaker. It can also be adjusted for flexible coverage – multiple units can be connected vertically for deeper coverage, or connected next to each other to create a very tight horizontal dispersion array.

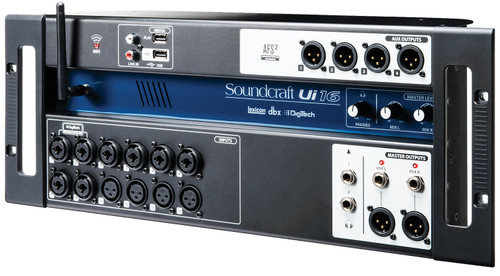

Soundcraft Ui16 Remote Controlled Digital Mixer

The Soundcraft Ui16 Remote Controlled Digital Mixer features cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices, and can use up to 10 control devices simultaneously. In addition, the Ui16 each features built-in HARMAN signal processing from dbx, DigiTech and Lexicon, including dbx AFS2, DigiTech Amp Modeling, and more. Both models feature fully recallable and remote-controlled mic gain and phantom power, along with 4-band parametric EQ, high-pass filter, compressor, de-esser and noise gate on input channels.

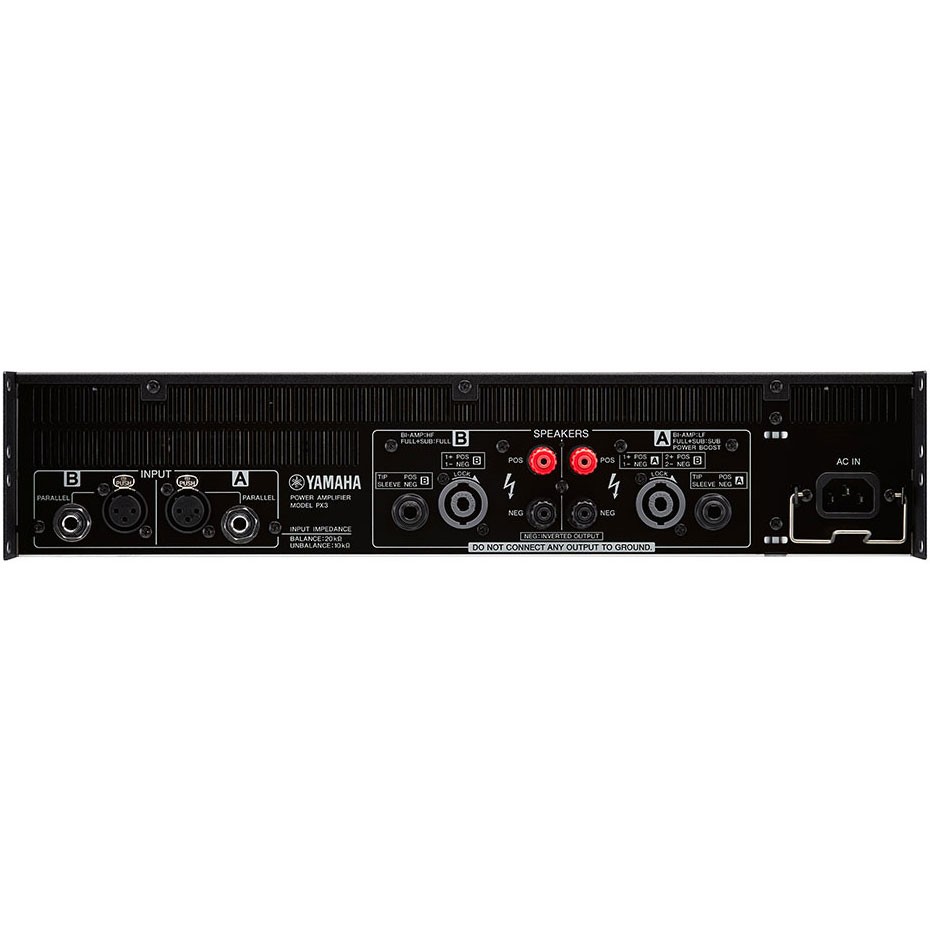

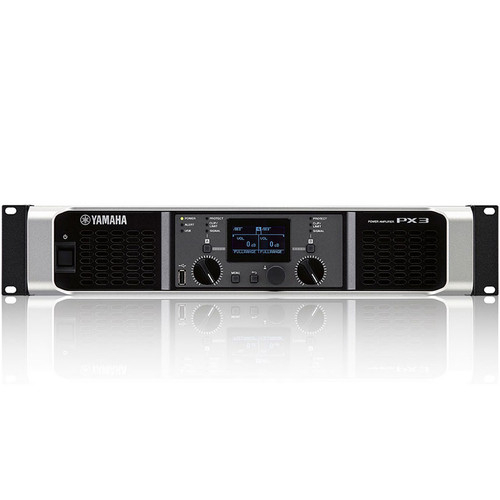

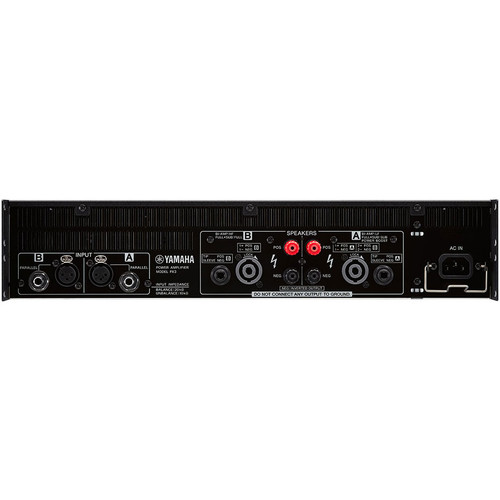

Yamaha PX3 Stereo Power Amplifier

The versatile Yamaha PX3 combines intelligent processing with high output power to meet the requirements of a vast range of sound reinforcement environments. Ideal for a wide range of live and installed applications, the PX Series comprises four models, each providing exceptional performance and advanced processing, with power outputs ranging from 300W (PX3) to 1000W (PX10) into eight ohms. PX amplifiers are driven by a newly developed Class-D amplifier engine that concentrates all the necessary functions into a single custom LSI chip. Yamaha’s new and unique PLL technology controls transfer characteristics in real time, achieving exceptional sound quality and power.

Audio-Technica ATW-1366 and ATW-1311/L Digital Wireless Systems

Audio-Technica’s System 10 PRO Rack-Mount digital wireless system provides the same interference-free operation in the 2.4 GHz range (outside TV bands) as the original System 10 wireless system but with expanded features and versatility. The durable half-rack chassis is equipped to house two receiver units that can be operated locally or released from the chassis and mounted remotely (up to 328 feet away) via Ethernet cable. Up to five chassis (10 receiver units) can be linked using the RJ12 cable included with each system, creating a stable, multichannel system with the simultaneous use of up to 10 channels.

Atlas Sound AP-S15A 15A Power Conditioner and Distribution Unit

The AP-S15A features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are also incorporated to reduce noise from Electromagnetic Interference (EMI) generated by items such as electric motors and switching power supplies. Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of time. The AP-S15A's circuitry is very fast and can suppress unwanted energy within a nanosecond response and sustain the suppression up to 2 milliseconds. The AP-S15A includes a 12 foot removable IEC cord with retainer.

Gator GRW2012508 12U 21" Deep Sectional Wall Rack with Steel Door

The Gator GRW2012508 Sectional Wall Rack is a 12U hinged wall mounted rack. It is 21" deep and has a vented glass front door. It features a hinged back double section welded frame construction, 18 Gauge Removable Side Panels with Spring Latch, and a 18 Gauge SPCC Cold Rolled Steel Top and Bottom. It is fan ready with a perforated top and 11 gauge drilled and tapped front and rear rack rails. The front door features toughened glass with vented sides and spring loaded push and turn locking system.

Yamaha VXL1-16 Slim Column Array Loudspeakers:

• 1.5" Full-range drivers x 16
• 80W Power Rating (PGM)
• 12Ω
• Lo-Z only (Hi-Z option available)
• IP35 (Waterproof)
• Paintable
• Single package



Soundcraft Ui16 Remote Controlled Digital Mixer:

• Tablet/PC/Smartphone Controlled Digital Mixer
• Integrated Wi-Fi
• Cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices
• Use up to 10 control devices (tablets, phones, PCs) simultaneously
• Legendary Harman Signal Processing from dbx®, Digitech®, and Lexicon®
• Fully recallable and remote-controlled mic preamps
• 4-band Parametric EQ, High-Pass Filter, Compressor, De-esser and Noise Gate on input channels
• 31-band Graphic EQ, Noise Gate and Compressor on all outputs
• Real-Time Frequency Analyser (RTA) on inputs and outputs
• 3 dedicated Lexicon® FX effects processors: Reverb, Delay and Chorus
• Subgroups, Mute Groups, View Groups, and more mixer controls
• Show/Snapshot recall with channel safes and security lockout
• 2-channel USB audio playback and recording



Yamaha PX3 Stereo Power Amplifier:

• 2x 300W at 8Ω
• 2x 500W at 4Ω
• Newly developed Class-D amplifier engine with a custom LSI
• Flexible onboard PEQ, crossover, filters, delay, and limiter functions
• Yamaha Speaker presets
• Utlities for safe and secure operation



Audio-Technica System 10 PRO Digital Wireless Systems:

• Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
• Operates in the 2.4 GHz range – completely free from TV interference
• Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
• Up to five chassis (ten receiver units) can be linked and used simultaneously
• Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations
• Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
• Automatic frequency selection for seamless, interference-free operation
• Extremely easy operation with instantaneous channel selection, sync, and setup
• Three levels of diversity assurance: frequency, time & space
• Ground-lift switch helps eliminate audible hum caused by ground loops



Atlas Sound AP-S15A 15A Power Conditioner and Distribution Unit:

• 9 Total Outlets
• 8 Rear Panel Outlets: 7 Switched and 1 Unswitched
• 1 Front Panel Outlet, Unswitched
• Radio Frequency and Electromagnetic Interference Filtering
• Circuit Breaker Protection @ 15A
• Spike Suppression Up to 6000V
• Removable 12' IEC Cord



Gator GRW2012508 12U 21" Deep Sectional Wall Rack with Steel Door:

• Hinged Back Double Section Welded Frame Construction
• 18 Gauge Removable Side Panels with Spring Latch
• 18 Gauge SPCC Cold Rolled Steel Top and Bottom
• Fan Ready Perforated Top
• 11 gauge drilled and tapped front and rear rack rails
• Rack U number printed on the rack rails
• 10/32 rack screws
• 1/2", 5/8", 3/4", 1"1 and 1 1/2" cable entry knockouts on top and bottom
• 5/8" knockout design to be used for VHF/UHF antenna
• 10" x 10" rear access knockout for cable entry
• Front door features 18 gauge solid steel

• (4) Yamaha VXL1-16 Slim Column Array Loudspeakers
• (1) Soundcraft Ui16 Remote Controlled Digital Mixer
• (1) Yamaha PX3 Stereo Power Amplifier
• (1) Audio-Technica ATW-1366 Digital Wireless System with 2 Boundary Microphones
• (1) Audio-Technica ATW-1311/L Digital Dual Wireless System with 2 Lavalier Microphones
• (1) Atlas Sound AP-S15A 15A Power Conditioner and Distribution Unit
• (1) Gator GRW2012508 12U 21" Deep Sectional Wall Rack with Steel Door
• (1) Gator GRW-DRW3 Rackworks Rack Drawer
• (2) Atlas Sound CB1 Solid Economy Blank Panels
• (2) Yamaha VCSB-L1 Bracket for 2 Vertically Linked Arrays
• (2) Yamaha WMB-L1 Bracket for 2 Axis Adjustment
• (6) CBI MLN-3 Performer Series XLR Microphone Cables - 3ft
• (250') West Penn 226 Audio Speaker Cable
