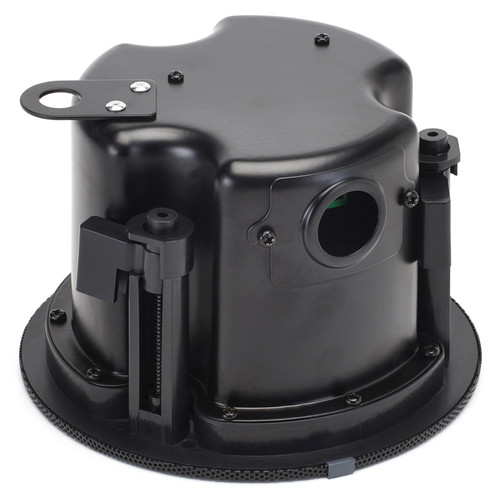

The CS-C3 in-ceiling speaker is a 3-inch coaxial two-way loudspeaker featuring exceptional intelligibility and musical performance. Using premium drivers and electronics, the CS-C3 offers high sensitivity, smooth frequency response and excellent off-axis performance. All models offer ZeroEdge™ magnetic grilles which reveal the high/low impedance switch settings for distributed audio systems.
Designed exclusively for Cloud Electronics in the USA by a specialist team of speaker design engineers, the CS-C Series speakers are extremely installer friendly and are tuned to complement the Cloud range of amplifiers and mixer amplifiers. Built for quality performance Cloud speakers are designed and tested to a superior standard by engineers who care and include a comprehensive 5-Year commercial warranty.
| Impedance | 16 ohm |
|---|---|
| Sensitivity (2.83 V/1 m) | 79 dB |
| Sensitivity (1 W/1 m) | 82 dB |
| Power Handling | 16W |
| Maximum SPL | 94 dB |
| Average Coverage Angle (2 kHz - 10 kHz) | 90° |
| Transformer Taps | 16, 8, 4, 2, 1W |
| Driver | 3" polypropylene with rubber surround and phase plug |
| Input | 4 pin Euroblock |
| Conformance | UL1480 / 2043 planned, RoHS, CE approved |
| Dimensions (Dia x H) | 6" (152.4 mm) x 3.92" (99.5 mm) |
| Weight | 3.09 lbs (1.4 kg) |
