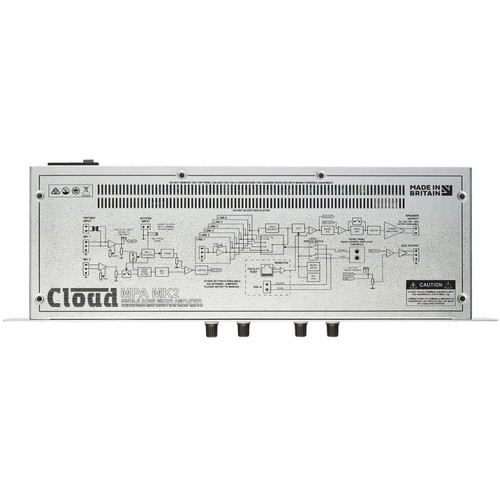

Cloud Electronics MPA240MK2 Mixer Amplifier

Back of Cloud Electronics MPA240MK2 Mixer Amplifier

Cloud Electronics MPA240MK2 240W Integrated Mixer Amplifier

Name: Cloud Electronics MPA240MK2 240W Integrated Mixer Amplifier
Brand: Cloud Electronics
SKU: CLOUD-MPA240MKII
Price: 905.13 USD
Availability: InStock

Write a Review

Part #:

MPA240MK2EK

Model #:

MPA240MK2

Current Stock:

MSRP: $905.99

$905.13

Availability: Usually arrives in 5-9 business days.

Quantity:

Adding to cart… The item has been added

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Cloud MPA240MK2 is world-class premium 240W integrated Mixer Amplifier which provides a complete audio solution for Houses of Worship, retail outlets, hotels, licensed premises and other spaces where music, announcements and/or flexible paging are required.

Description

Cloud Electronics MPA240MK2 240W Integrated Mixer Amplifier

The MPA240MK2 is world-class premium 240W integrated Mixer Amplifier which provides a complete audio solution for Houses of Worship, retail outlets, hotels, licensed premises and other spaces where music, announcements and/or flexible paging are required. It combines the functions of a two-channel microphone mixer with full paging facilities, a six-input music source selector and a mono power amplifier in a single compact 1U unit.

The acoustic performance and best-in-class reliability makes this latest Cloud product another outstanding example of British design engineering by the world’s best manufacturer of BGM Electronics.

Features

Super compact design with very low power consumption
Six (unbalanced) stereo line inputs with individual sensitivity adjustment
Two balanced mic inputs – 12 V phantom power available on either or both
Separate HF/LF EQ adjustments for mic and music source
Paging control on Mic 1 input via short-to-ground access connection
Mic 1 configurable as high-voltage input for paging from existing 70/100 V-line system
Selectable VOX mic-over-music priority on all mic Inputs
Automatic Mic 1-over-Mic 2 priority in Page mode
Selectable LINE 6 priority with choice of release times
Selectable pre-announcement chime
Music Mute
Facility Port supports BT-1 Bluetooth and/or LM-2 Active Input Plates
Compatible with standard Cloud remotes RL-1 & RSL-6 Series
Power amplifier protection circuitry & input limiter
Transformerless output stage 70/100 V-line systems directly, or low impedance loudspeakers (4/8 ohms)
Aux output from pre-amp (balanced, line level)
Automatic power-down function (user-selectable)
ENERGY STAR Certification applied for
Convection cooled (MPA120MK2); forced-air cooling with variable speed control (MPA240MK2)
1U 19" rack mounting unit

Specifications

Line Inputs
Frequency Response	20 Hz to 20 kHz, ±1 dB
Sensitivity	195 mV (-12 dBu) to 2.0 V (+8 dBu)
Input Impedance	47 kohms
Headroom	16 dB
Noise
Equalization	HF: ±10 dB @ 10 kHz LF: ±10 dB @ 50 Hz
Microphone Inputs
Frequency Response	-3 dB @100 Hz (fixed filter) to 20 kHz, ±1 dB
Sensitivity	2.54 mV (-50dBu) to 245 mV (-10 dBu)
Input Impedance	3.3 kohms (balanced)
Phantom Power	12 V, switchable per-input by jumpers
Headroom	16 dB
Noise (EIN)	-126 dBu
Equalization	HF: ±10 dB @ 5 kHz LF: ±10 dB @ 100 Hz
High Voltage Input
Frequency Response	via Mic I i/p: -3 dB @100 Hz (fixed filter) to 20 kHz, ±1 dB via Line 5 i/p: 20 Hz to 20 kHz, ±1 dB
Input Gain Control	10 dB to 20 dB
Noise
Facility Input
Frequency Response	20 Hz to 20 kHz, ±1 dB
Sensitivity	0.775 V (0 dBu)
Input impedance	10 kohms (balanced)
Headroom	18 dB
Noise Gate	-60 dB
General Specifications
Power Input	Universal type, 85 to 265 VAC, 45 to 65 Hz
Fuse Details	5 x 20 mm, time delay, 4 A
Dimensions (H x W x D)	1.75" (44 mm) x 19" (482.6 mm) x 5.9" (150 mm)
Net Weight	4.8 lbs (2.15 kg)
