Inside the Design
This retail store audio system combines four weather-resistant Pure Resonance Audio S6W 6.5" 2-way 70V surface-mount speakers with a powerful RMA500BT 500W mixer amplifier and BTR1 Bluetooth wireless audio receiver to deliver clear, balanced sound throughout your space. The S6W speakers provide full-range audio and excellent vocal clarity, while the RMA500BT provides the power and flexibility needed to manage the entire system.
The included BTR1 Bluetooth wireless audio receiver provides convenient music streaming from compatible smartphones, tablets, and other Bluetooth-enabled devices from up to 100 feet away. With weather-resistant speakers, powerful 70V amplification, and extended-range wireless streaming, this system provides a flexible solution for delivering consistent background music and general program audio throughout retail stores and other commercial environments.
Sound System Features:
- The weather-resistant, UV-protected ABS construction of the S6W speakers provides reliable performance in indoor and partially covered outdoor environments
- Each S6W features a 6.5" polypropylene cone woofer and 1" silk membrane tweeter for clear, balanced full-range sound with a frequency response of 80Hz - 18kHz and an average SPL of 92 dB
- The RMA500BT 5-channel, 4 ohm/70 volt Bluetooth commercial rack mount mixer amplifier provides 500 watts of high-performance Class D power
- The RMA500BT features a forced air-cooling fan to accommodate long working hours and help maintain reliable performance during extended operation
- The BTR1 provides extended-range wireless audio streaming from compatible Bluetooth devices from up to 100 feet (30 meters)
- Multiple inputs, flexible mixer controls, and Bluetooth connectivity provide convenient control over background music and other program audio throughout the system
About the System Components

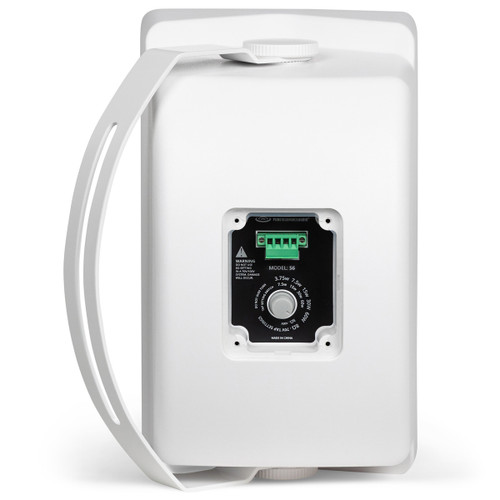

Pure Resonance Audio S6W 6.5" 70V Indoor/Outdoor Surface Mount Speaker
The Pure Resonance Audio S6W 2-way 70-volt surface mount speaker is designed to deliver clear, balanced audio for indoor and outdoor commercial installations. Its weather-resistant construction and UV-protected ABS enclosure provide reliable durability in partially covered outdoor areas as well as demanding indoor environments. The S6W features a 6.5" polypropylene cone woofer and 1" silk membrane tweeter that deliver full-range sound with excellent vocal clarity, a frequency response of 80Hz - 18kHz, and an average SPL of 92 dB. Its integrated 70V transformer provides multiple wattage taps for efficient distributed audio installations, while the included mounting bracket allows flexible positioning for optimized sound coverage. The S6W is an excellent choice for background music, announcements, and general-purpose audio where consistent, high-quality sound is needed.

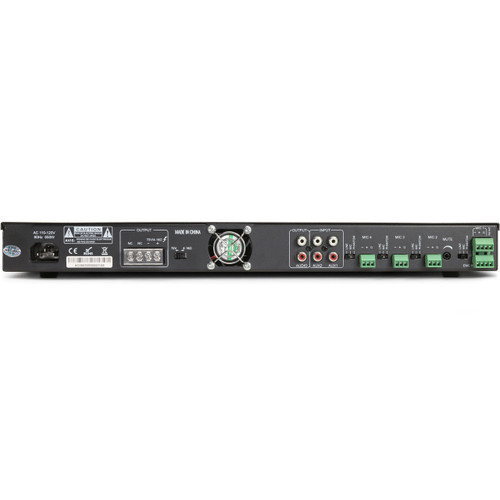

Pure Resonance Audio RMA500BT 500W Rack Mount Bluetooth Mixer Amplifier
The Pure Resonance Audio RMA500BT is a 5-channel 70V rack mount mixer amplifier delivering 500 watts of high-performance Class D power for reliable distributed audio. Multiple inputs and mixer controls provide flexible management of music and other program audio, while built-in Bluetooth connectivity allows convenient wireless playback from compatible devices. The RMA500BT also features a forced air-cooling fan to help maintain reliable performance during extended operation. Its slim rack mount design provides a clean and organized installation while serving as the central hub for managing audio throughout the system.
Due to the possibilities of FM radio interference and the variables involved, it's not recommended to use FM radio as your primary input source.
Pure Resonance Audio BTR1 Bluetooth Wireless Audio Receiver with 100ft Range
The Pure Resonance Audio BTR1 is a compact Bluetooth wireless audio receiver designed to provide convenient high-quality audio streaming from compatible smartphones, tablets, computers, and other Bluetooth-enabled devices. With a wireless range of up to 100 feet (30 meters), the BTR1 provides greater flexibility when controlling background music without requiring a direct wired connection to the mixer amplifier. Its compact design and included mounting hardware allow for easy integration into the system, while the included audio cables and USB-C power supply provide everything needed for a quick and convenient setup.
