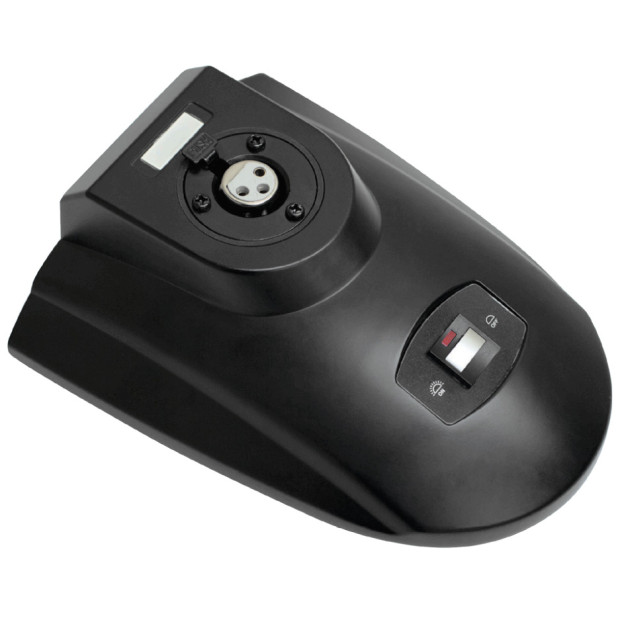

Audix ATS1LX Heavy Duty Shock Absorbent Microphone Table Stand
The ATS Series is the industry's only programmable, shock absorbent table stand with an LED indicator that does not require external power supplies, eliminating the added expense and complication associated with installation and wiring. The LED indicator and audio switching circuitry operate on the same phantom power source supplied to the microphone. The result is simplified installation and reliable operation. The base has programmable functions that are changed with a simple, intuitive dip switch which can be set to operate in Toggle On, Toggle Off, Momentary Talk and Momentary Mute modes. Also supplied within the base is a Low Cut Filter offering additional protection from bass frequencies that may cause rumble or hum. The ATS1LX can be further programmed to operate seamlessly with automated teleconferencing and switch systems in external logic control mode. The ATS is manufactured with a precision die cast zinc alloy base, durable black E-coat finish, LED indicators and a noise free mechanical switch.
- Features
Features
- Heavy duty die cast base provides stability
- Shock mount design limits touch noise and vibration
- Four programmable talk-mute functions
- Local remote control function settings
- Seamless integration with automated mixers
- Designed, assembled & tested in the USA
- Specification
Switch Programmable with remote capabilities Base Output Connector 5-pin XLRm Mic Input Connector 3-pin XLRf Off (Mute) Attenuation 45dB minimum Power Requirements 36-52 V phantom DC 2mA typical Finish Matte Black Dimensions (H x W x D) 1.8" (45 mm) x 5.9" (124 mm) x 6.9" (160 mm) Weight 3 lbs (1.4 kg) - Documents
