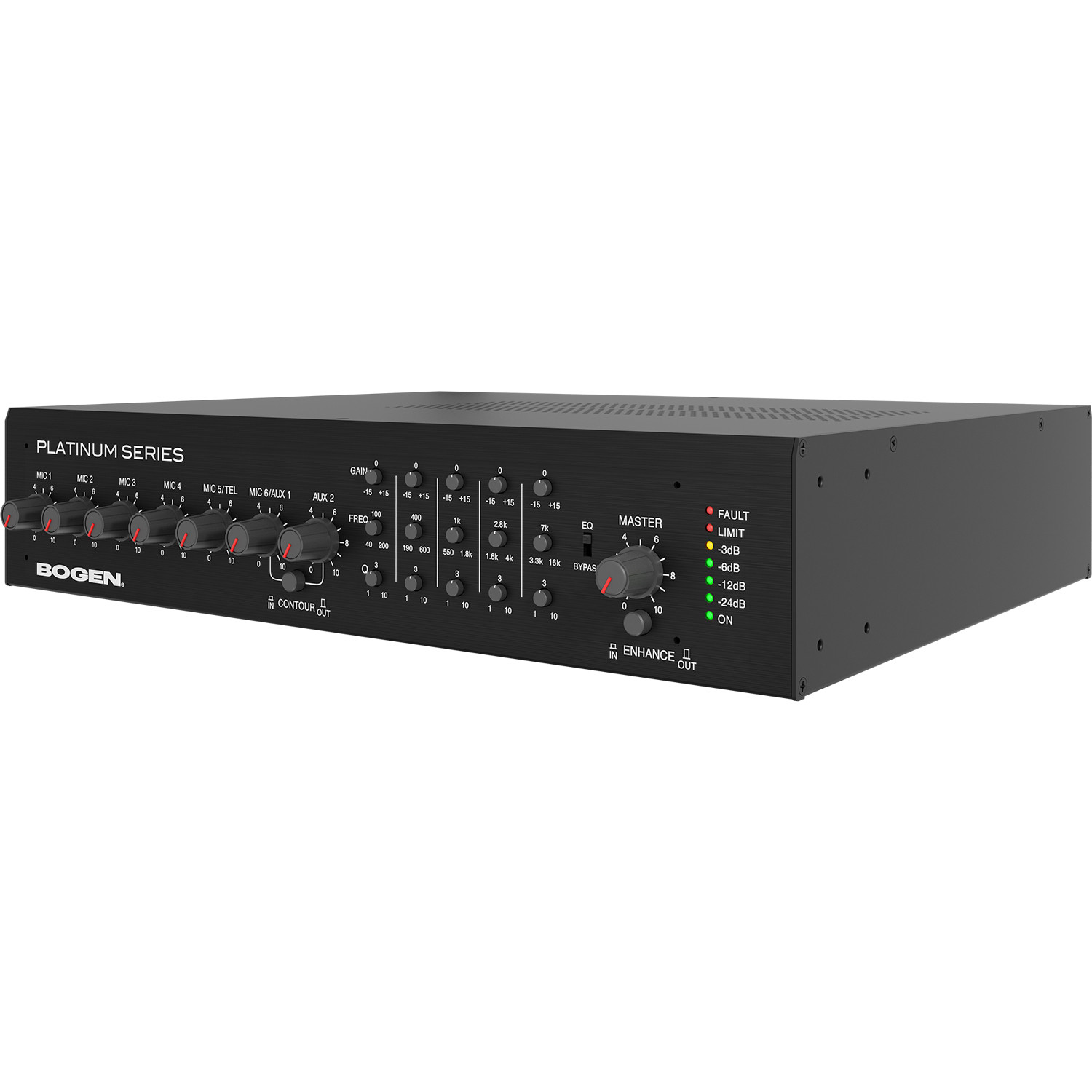

Bogen Communications PS120-G2 Gen‑2 Platinum Series Amplifier

More Views

Bogen Communications PS120-G2 Platinum Series Gen-2 120W 25V 70V 8 Ohm Mixer Amplifier

Part # PS120-G2

Model # PS120-G2

The Bogen Communications PS120-G2 120W Gen‑2 Platinum Series amplifier delivers professional-grade audio for commercial installations with selectable 8Ω, 25V, or 70V outputs, a 5-band parametric EQ, multiple microphone and auxiliary inputs, and flexible installation options.

Availability:

List Price $1,428.17

Pro Acoustics Price Price $715.99

Your Savings $712.18 (50%)

Qty:

Share with
Add to Wishlist

Description

Details

Bogen Communications PS120-G2 Platinum Series Amplifier

The PS120-G2 is a next-generation Platinum Series amplifier designed for commercial audio systems requiring powerful, clear sound across all speaker types. This Gen-2 model features a built-in impedance-matching transformer with a rear-panel selector switch, eliminating the need for external transformers when operating with 70V speakers. Its versatile output configuration supports 8-ohm, 25V, or 70V speakers, giving installers maximum flexibility.

With a total power of 120 watts, the PS120-G2 is ideal for small-to-medium venues, classrooms, or offices. It includes 4 dedicated microphone inputs with selectable phantom power, plus additional MIC/AUX inputs for added versatility. The 5-band full parametric equalizer allows precise tuning of each input channel, while audio enhancement and true loudness contour functions improve voice intelligibility and listening comfort.

Installation and control are made simple with separate connector blocks for all outputs, a lo-cut filter on all MIC channels, and optional remote master volume control (via GSRVC). Whether used in a standalone setup or integrated into a larger Bogen Nyquist or PA system, the PS120-G2 provides reliable, high-quality amplification in a compact, professional enclosure.

Features

Features

120W power output for small to medium commercial installations
Selectable 8Ω, 25V, or 70V speaker outputs with built-in impedance matching
5-band full parametric equalizer with independent Gain, Frequency, and Q controls
Four dedicated XLR microphone inputs with selectable phantom power
Additional MIC/TEL, MIC/AUX, and AUX 2 inputs for flexible connectivity
True loudness contour and audio enhancement for improved voice clarity
Lo-cut filter on all microphone channels for cleaner sound
Separate rear-panel output blocks for easy installation and speaker configuration
Optional remote master volume control via GSRVC
Compatible with all speaker types without external transformers

Specification

Power Rating (RMS)	120 watts
Frequency Response	20 Hz to 20 kHz, +0/-2 dB @ -2 dB
Distortion	0.3% (typ.), 20 Hz to 20 kH
Signal-to-Ratio Noise	Fundamental: -70 dB or better; AUX 1 & 2: -70 dB; TEL: -70 dB or better@ 600-ohms; MIC 1 through MIC 6: -60 dB or better @ 200 ohms
MIC Inputs	6 Lo-Z balanced via 4 XLR connectors and 2 pluggable screw terminals, Sensitivity: 11 mV (200 ohms)
AUX Inputs	2 Hi-Z RCA jacks, Sensitivity: 0.085V (10 kΩ)
TEL Input	Pluggable screw terminals, Sensitivity: 0.07V (600Ω)
Power Amp In/Pre Out	In 1V / Out 1V via RCA jacks
Speaker Output	All models: 8-ohm, 25V/70V
Output Regulation	Better than 2 dB from no load to full load
AC Input Voltage	100–240 VAC, 50/60 Hz
Variable Mute Range	-60, -21, -10, 0 dB (AUX 1 & 2)
VOX Threshold	TEL Input 20 mV (VOX control max. CW position)
Parametric Equalizer	5-bands with independent GAIN, FREQ, and Q controls
Dimensions (H x W x D)	3.5" (88.9 mm) x 16.5" (419.10 mm) x 13.5" (342.90 mm)
Shipping Weight	14 lbs (6.35 kg)
