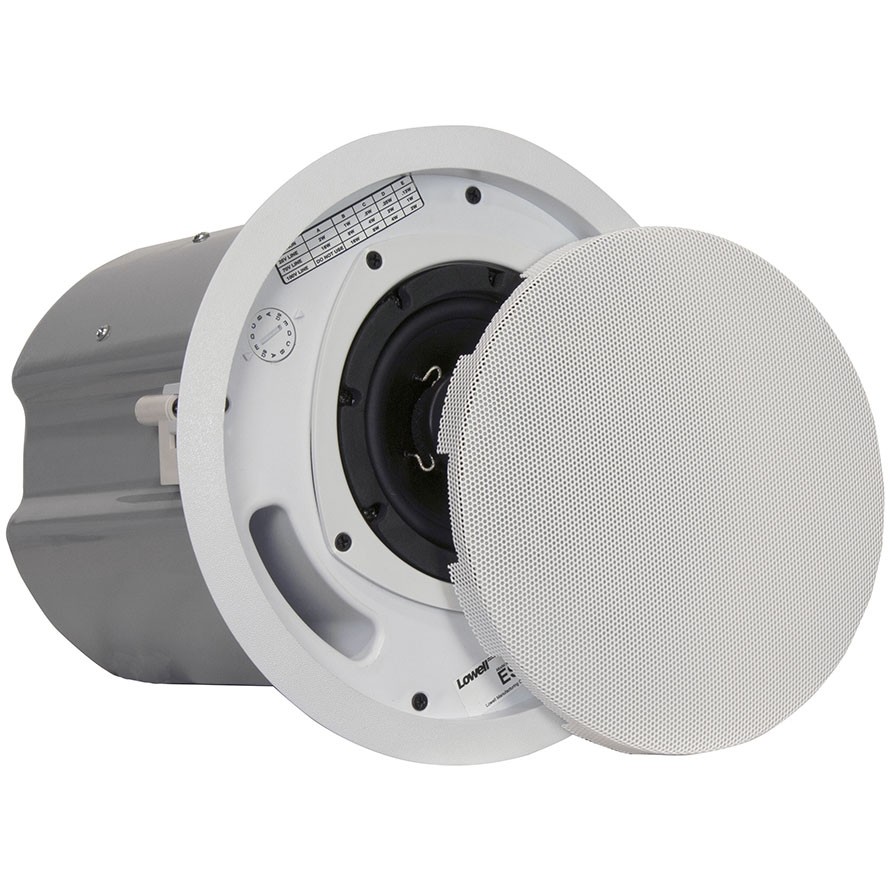

Lowell ES-52T 70V 5.25" In-Ceiling Speaker
The Lowell ES-52T produces excellent intelligibility for speech and full-frequency response for music making it ideal for retail, commercial, industrial, institutional, and residential applications. This self-contained in-ceiling or in-wall speaker system with 5-1/4" coaxial driver has a high-frequency Mylar tweeter with acoustic lens to provide the kind of crisp, high-frequency response expected from high quality coaxial speakers. The ported enclosure is tuned for extended low-frequency response, while the speaker's wide dispersion can actually reduce the number of speakers required to produce even coverage in distributed speaker systems.
- Features
Features
- Driver: 5-1/4" coaxial driver
- Transformer: 16W transformer with tap selector switch mounted behind grille. Tap selections for 25V, 70V or 100V speaker systems, and 8ohm transformer bypass position
- Enclosure:
- Factory-mounted enclosure ships attached to the driver (non-removable)
- Durable 20 gauge steel, painted grey
- Ported enclosure is tuned for extended bass response
- Built-in reversible mounting dogs aid fast installation, while allowing the speaker to be mounted in drywall, wood, tile or almost any type of ceiling with thickness up to 2.125"
- Removable (4 pin) Phoenix-style connector with 2 terminals for input to speaker and 2 parallel terminals for output to next speaker in string
- Internal volume = 379 cu.in.
- Baffle: Low-profile front baffle formed from UV-rated high impact plastic
- Grille: Fine mesh press-fit grille (white) includes scrim and pull tool
- Installation Aids: (included)
- C-Ring: Reinforces the edge of drywall ceiling cut-outs and works with the support rails to uphold the weight of the speaker assembly
- Support Rails (2): Rails are used with the C-ring to uphold the weight of the speaker assembly and help prevent sagging tiles when the speaker is installed in a lay-in tile ceiling
- Template: Paper template is used to properly mark cut-outs for mounting holes
- Paint Shield: Plastic shield fits over the driver to protect it if the baffle is to be painted
- Installation Aids: (optional, order separately)
- #ES-6-RIB Rough-in Bridge: For new construction (drywall or plaster ceiling) before finished ceiling is installed, the bridge serves as a placeholder for the speaker
- #ES-6-RTR Retrofit Trim Ring: Retrofit trim ring mounts this speaker to an existing (pre-installed) 8" speaker enclosure with 11.25" diameter mounting bolt circle. Includes hardware and rubber bumpers
- Specification
Driver 5-1/4" 30W coaxial driver Transformer 16W Rough-in Bridge #ES-6-RIB Retrofit Trim Ring #ES-6-RTR Dimensions (Dia x D) 9.84" (249.94 mm) x 10.16" (258.06 mm) Weight 6.5 lbs (2.95 kg) Shipping Weight 20.4 lbs (9.25 kg) - Documents
Documents
- In The Box
In The Box

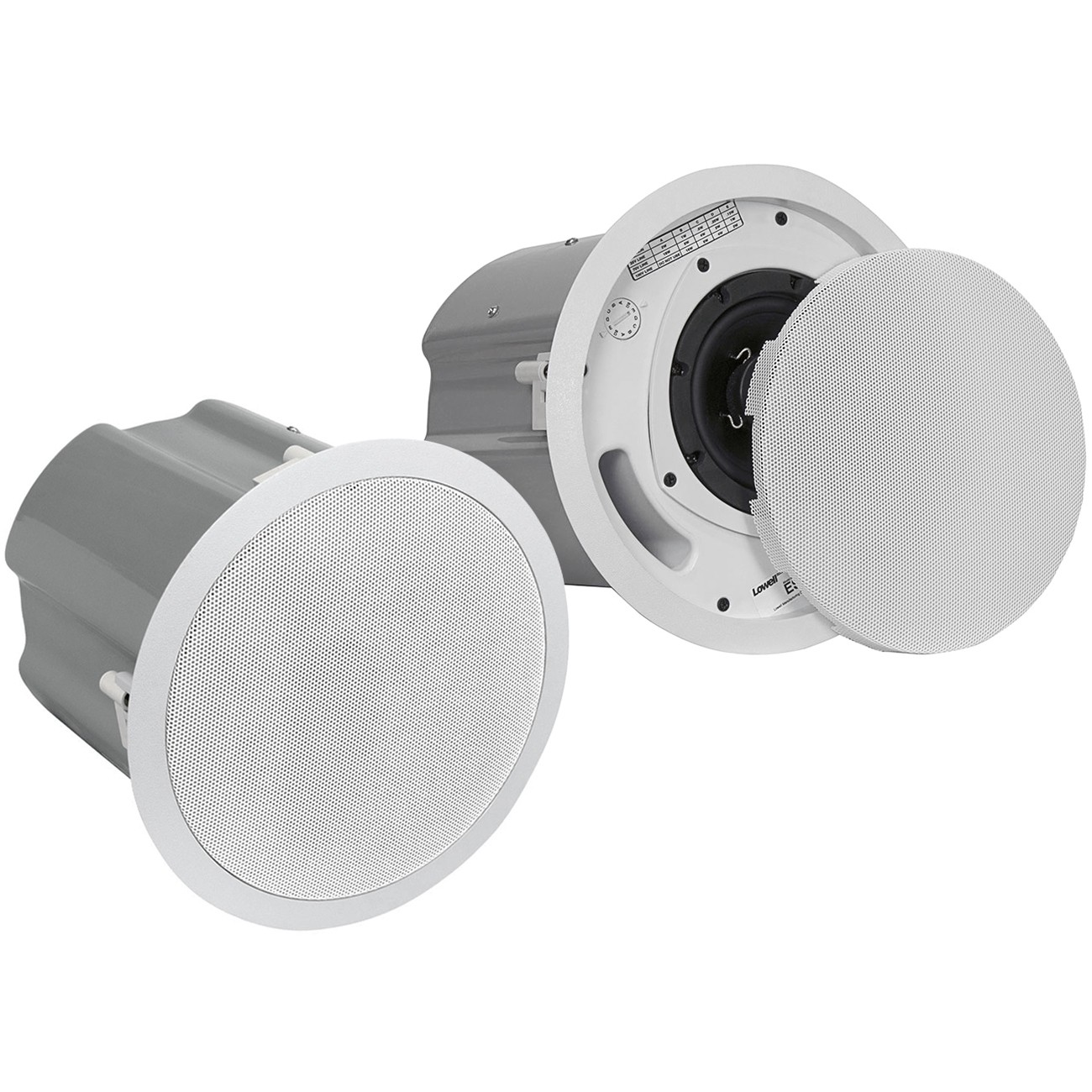

- (2) 5-1/4" Coaxial Drivers
- (2) 16W Transformers
- (2) Metal Enclosures (Attached)
- (2) Press-fit Grilles, Scrims, Pull-tool
- (2) C-Rings with Support Rails
- (2) Paper Templates for Cut-outs
- (2) Paint Shields for Driver
