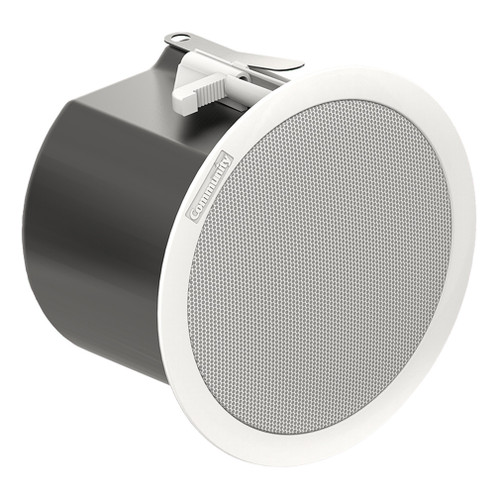

The C4 has a wider dispersion than the larger models. It contains a proprietary Tru-Phase™ waveguide that produces a consistently wide conical polar response up to 16 kHz. The C4 features a genuine coaxial design using separate magnets for the LF and HF drivers for reduced distortion and high sensitivity, thereby permitting up to 3 dB greater output level while requiring up to half the amplification power of competing products. The C SERIES ceiling loudspeakers are all ETL listed, and have similar sensitivity and output capabilities.
Each model is delivered as a pair of loudspeakers, fully assembled, and including everything needed for standard installations.
| Loudspeaker Type | Two-way, full-range, coaxial ceiling loudspeaker, 8 ohm or 70V/100V operation |
|---|---|
| Operating Range | 75 Hz - 13.5 kHz (-10 dB) |
| Frequency Response | 125 Hz - 12.5 kHz (-3 dB) |
| Max Input Ratings (8 ohm) | 60W continuous, 150W program 21.9 volts RMS, 43.8 volts momentary peak |
| 70V | 8W, 4W, 2W, 1W, and 8 ohm selectable |
| 100V | 16W, 8W, 4W, 2W, and 8 ohm selectable |
| 500 Hz | 2nd Harmonic : 1.03%, 3rd Harmonic : 0.21% |
| 2 kHz | 2nd Harmonic : 0.69%, 3rd Harmonic : 0.25% |
| 8 kHz | 2nd Harmonic : 1.21%, 3rd Harmonic : 0.15% |
| 500 Hz | 2nd Harmonic : 0.43%, 3rd Harmonic : 0.19% |
| 2 kHz | 2nd Harmonic : 0.82%, 3rd Harmonic : 0.29% |
| 8 kHz | 2nd Harmonic : 0.54%, 3rd Harmonic : 0.07% |
| Sensitivity (1W/1m) | 91 dB SPL (125 Hz to 12.5 kHz 1/3 octave bands), 90 dB SPL (250 Hz to 4 kHz speech range) |
| 8 Ohm | 109 dB SPL / 115 dB SPL (peak) |
| 70V | 100 dB SPL / 106 dB SPL (peak) |
| 100V | 103 dB SPL / 109 dB SPL (peak) |
| Nominal Impedance | 8 ohms |
| Minimum Impedance | 7 ohms @ 10 kHz |
| Nominal Coverage | 130º conical (1 kHz to 6 kHz ±60°), 140° conical (500 Hz to 6 kHz ±65°) |
| Axial Q / DI | 4.0 / 6.0, 500 Hz to 6 kHz |
| Crossover Frequency | 2 kHz |
| Recommended Signal Processing | 110 Hz, at 24 dB per octave high pass filter |
| Drivers | LF 1 x 4.5-inch cone HF 1 x ¾-inch exit compression driver |
| Driver Protection | Self-resetting solid state circuit breaker |
| Input Connection | 4-pole Euroblock connector with two pair of non-interrupt parallel connections |
| Controls | Front-face wattage / low impedance selector switch |
| Enclosure | Corrosion-resistant zinc plated steel |
| Finish | White |
| Mounting/Rigging Provisions | 2 ABS mounting clamps with 1.75-inch grip range |
| Grille | Powder coated steel with safety line, white finish, paintable |
| Baffle | Reflex loaded UL 94V-0 rated ABS |
| Safety Features | 2 x safety hang points |
| Required Accessories | Electronic high pass filter |
| Supplied Accessories | Tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver |
| Cutout Diameter | 7.36" (187.0 mm) |
| Dimensions (Dia x D) | 8.31" (211.07 mm) x 5.50" (139.7 mm) |
| Weight | 6.4 lbs (2.9 kg) |
