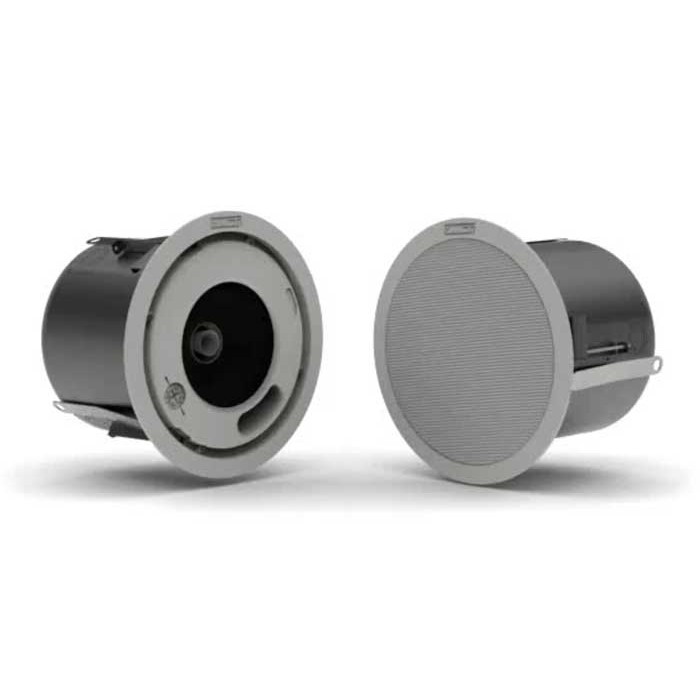

The D5 has a more focused dispersion, higher sensitivity and output than the smaller D4. The high performance D5 is a true coaxial loudspeaker with a real compression driver concentrically arranged so that the upper frequencies emerge through the center of the low-frequency driver’s magnetic structure and cone via a precisely tapered Tru-Phase™ high-frequency waveguide. This special construction provides consistent, wide dispersion up to 16 kHz, all but eliminating high-frequency narrowing. Further pattern improvement is achieved by precisely mounting the low frequency driver (and its concentric HF driver) centered in the baffle, as contrasted to the offset designs used by others.
| Operating Range | 65 Hz - 22 kHz |
|---|---|
| Frequency Response | 80 Hz - 20 kHz (±5 dB) |
| Max Input Ratings (8 ohm) | 100W continuous, 250W program 28 volts RMS, 63 volts momentary peak |
| Sensitivity (1W/1m) | 93 dB SPL (125 Hz to 12.5 kHz 1/3 octave bands) 91 dB SPL (250 Hz to 4 kHz speech range) |
| Maximum Output | 113 dB SPL / 119 dB SPL (peak 8 ohm) |
| Nominal Impedance | 8 ohms |
| Axial Q / DI | 4.5 / 6.5, 500 Hz to 6 kHz |
| Crossover Frequency | 1.6 kHz |
| Drivers | LF 1 x 5" HF 1 x 1" exit compression driver |
| Driver Protection | Self-resetting solid state circuit breaker |
| Input Connection | 4-position Euroblock connector |
| Controls | Front-face wattage / low impedance selector switch |
| Enclosure | Corrosion-resistant zinc plated steel |
| Mounting/Rigging Provisions | 4 steel mounting clamps with 3-inch grip range |
| Grille | Powder coated steel with safety line, white finish, paintable |
| Baffle | Reflex loaded UL 94V-0 rated ABS |
| Safety Features | 4 x safety hang points |
| Safety Agency Ratings | ETL listed to comply with UL1480, UL2043 and CSA60065. Suitable for use in air handling spaces per NFPA 70 and NFPA 90 |
| Required Accessories | Electronic high pass filter |
| Supplied Accessories | C-Ring supporting plate, tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver |
| Optional Accessories | D45-FAR Face Adapter Ring D45-CATR Can Adapter Ring / Trim Ring D45-NCB New Construction Bracket |
| Cutout Diameter | 8.75" (222 mm) |
| Dimensions (Dia x D) | 9.53" (242 mm) x 6.83" (173.4 mm) |
| Net Weight | 10.4 lbs (4.7 kg) |
| Shipping Weight (Pair) | 29.6 lbs (13.4 kg) |
